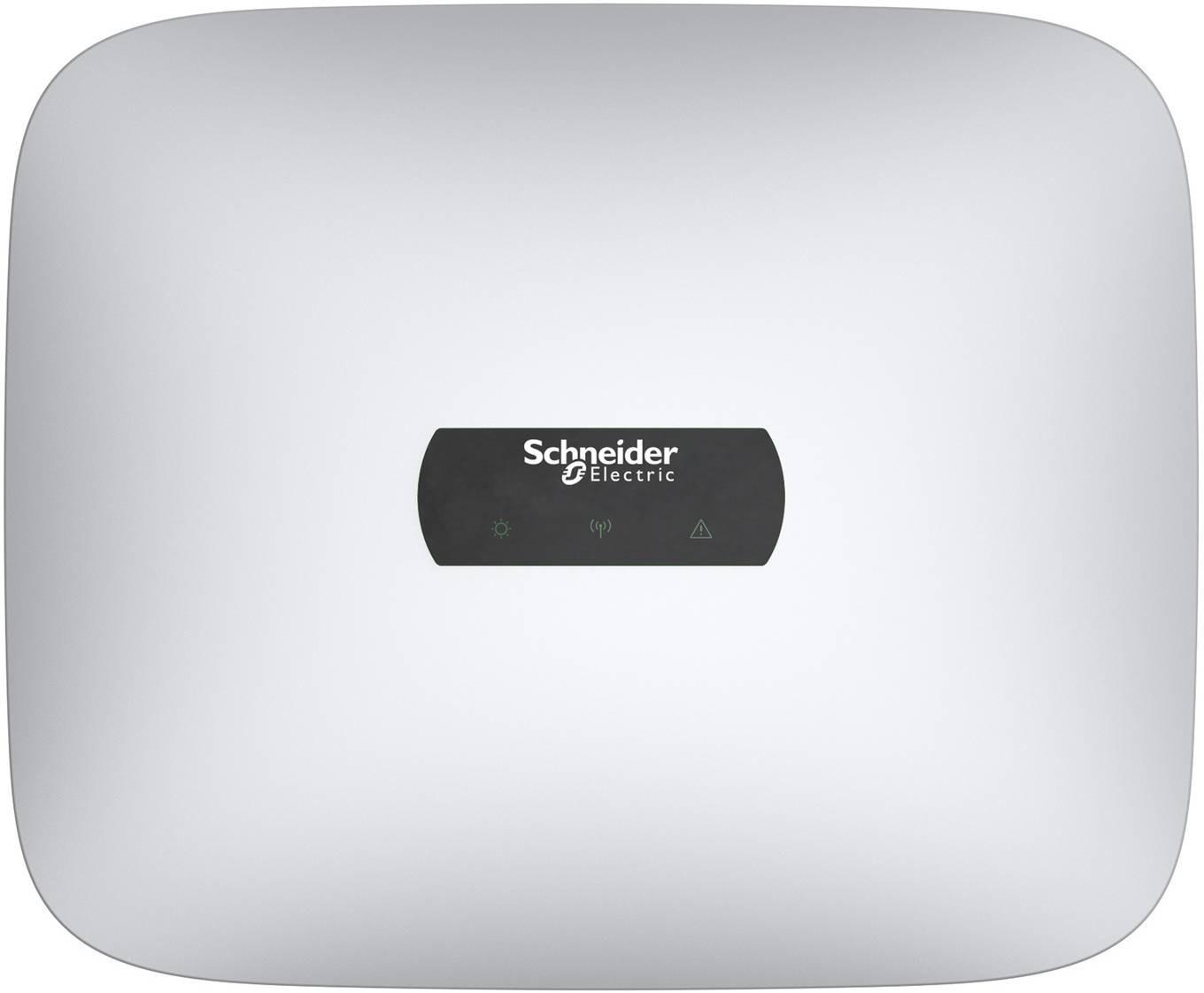

Schneider Electric Inverter HY10K3EU1 -
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,281.51 / piece)
€ 1,281.51
plus VAT.
Technical specifications
- AC-connection: Plug connector
- Number of independent MPPT inputs: 2
- Integrated battery: No.
- DC-connection: Plug connector
- Display: Without
- Wireless: Yes
- Supply phases: 3-phase
- Ethernet: no
- Suitable for outdoor installation: Yes
- Integrated DC switch: Yes
- Max. Input current DC 13.5 A
- With data logger: Yes
- With transformer: No.
- Emergency power capable: No.
- Voltage type of supply voltage: DC
- String connections per MPPT input: 1
- Product type
Inverter
- Weight
19 kg
- Width
484 mm
- Height
400 mm
- Depth
177 mm
- Type
HY10K3EU1
IP65
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3754804 Schneider Electric Inverter HY10K3EU1 -
User & Safety Instructions
User & Safety Instructions 3754804 Schneider Electric Inverter HY10K3EU1 -
Description
Cutter inverter with 10kVA output power for max. 150% PV-Oversizing (15kWp), suitable for indoor and outdoor installation (IP65). Hybrid inverter for connecting PV modules and a Schneider Boost battery. 2 MPPT inputs for optimizing the PV power, input voltage 140-950VDC each. Self-consumption optimization by means of attached battery Schneider Boost. Commissioning and control via APP. Output voltage 400V / 50Hz, max. Output current 16.9A, Efficiency 97.5%, THD max. 3%, Noise emission max. 45dBA. Operating temperature -25 to 60°C, Dimensions HxWxD 485x400x172 mm, weight 19kg, protection class IP65. Communication via RS485, CAN, WLAN-FE. Standards: IEC 62109-1/-2, VDE-AR-N-1, IEC 61000-6-4105, IEC 61000-6-3, RoHS and REACH.
