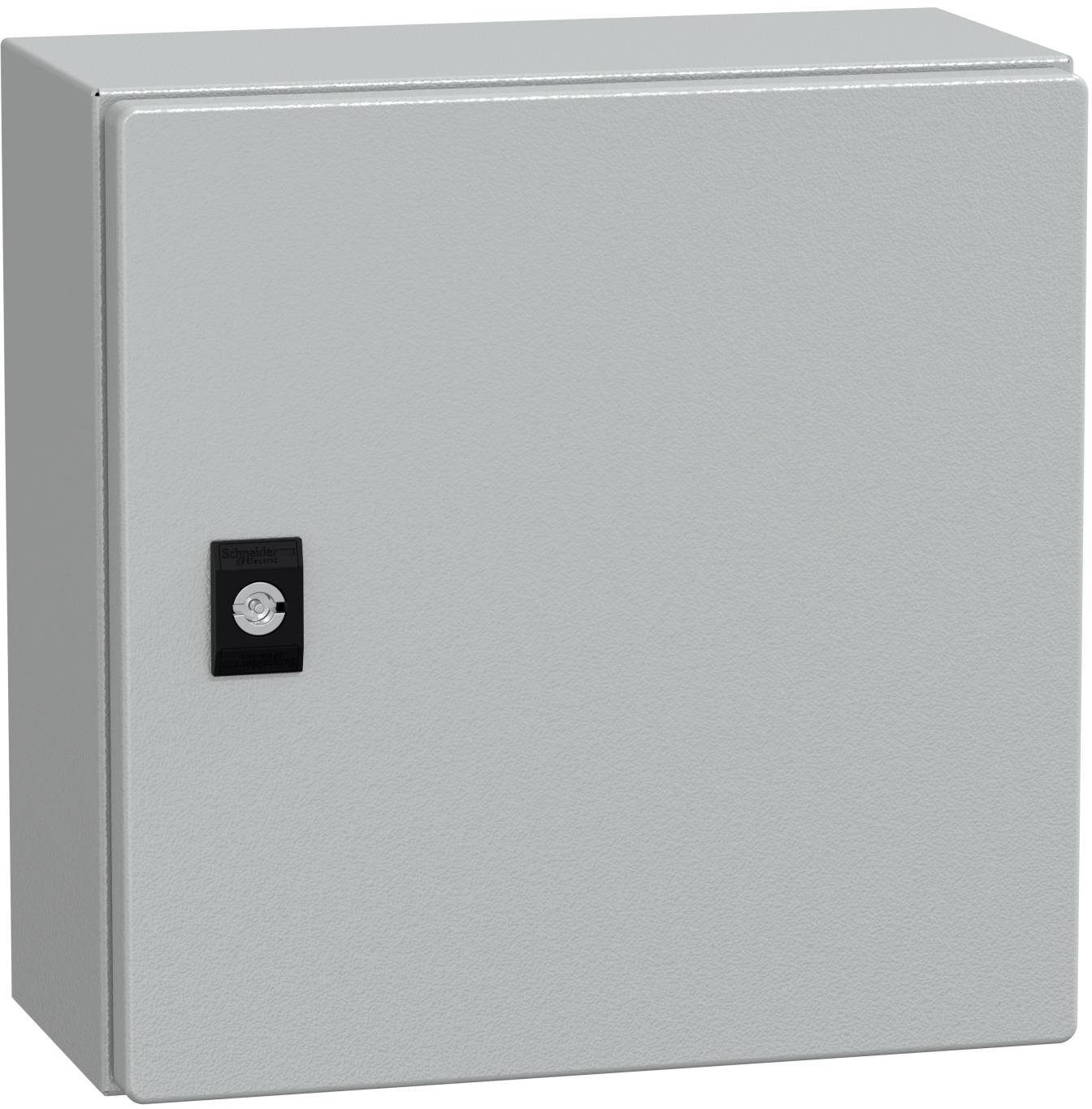

Schneider Electric NSYCRN33150 Door 300 x 300 x 150 Steel Grey 1 pc(s)

PanelSet CRN steel wall housing for versatile applications. Designed for use in harsh environments and resistant to strong shocks according to IK10 (IEC 62262) and IP66 (IEC 60529) dust and water standards. The cabinet has a nominal height, width and depth of 300 mm, 300 mm and 150 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a simple door and a lock. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door, cable entry plates and mounting plate can be removed for maintenance purposes. The net weight of the cabinet is 4.25 kg. Certified according to UL, cUL and DNV‑GL standards. The special feature of this variant includes a double profile area welded on the back and sides made from a single edged profile. The cabinet can be operated from the front.

This text is machine translated.
