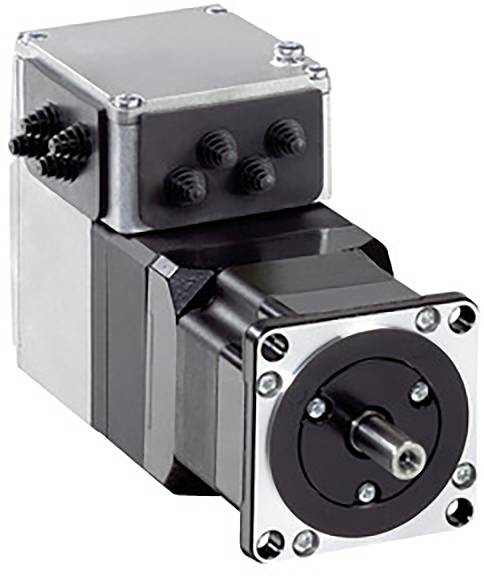

Schneider Electric Servo motor ILA1F571PC1A0

Built-in drive of the Lexium ILA1 series. This series of distributed drives consists of a compact unit of the synchronous servo motor and the associated control electronics with small dimensions. These engines are characterized by their high dynamic response and high peak torque. This AC servo has a maximum torque of 0.6 Nm as well as a continuous torque of 0.26 Nm. The voltage-dependent speed is up to 5500 rpm. The control is performed via CANopen DS301. A single-turn encoder with 16384 points/revolution is available as a measuring system. Control inputs for STO are available as a safety function. The supply voltage 24-36 VDC and the flange dimension for mounting 57 mm. Industrial connectors are provided for connection. There is no brake. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
