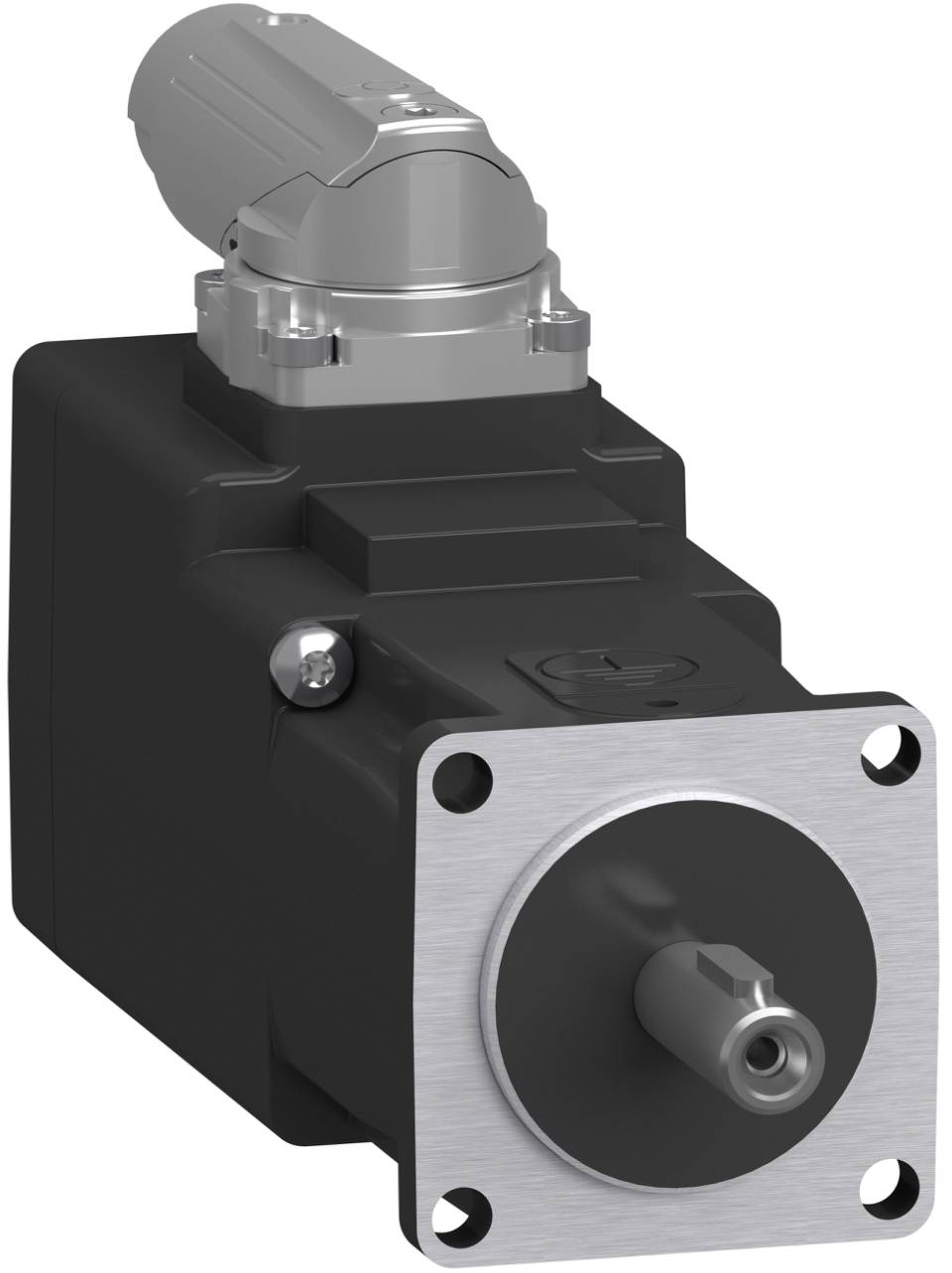

Schneider Electric Servo motor SH30401P1DF4100 SH30401P1DF4100 0.21 Nm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,445.00 / piece)
€ 2,445.00
incl. VAT
14-day return policy included
Technical specifications
- Number of phases: 3
- Shaft end design: Other
- Design: Other
- Load cycle: Other
- Rated frequency 50-60 Hz
- Rated voltage: 230 V
- Operating temperature -15 °C
- Suitable for frequency control: No.
- Intrinsic safety (IS): Without
- Insulation class IEC: Other
- Breakdown torque ratio: 0.75
- Cooling method: Other
- With condensation protection: No.
- With positive temperature coefficient resistor (PTC): No.
- With resistance thermometer detector (RTD): No.
- Motor energy efficiency class: Other
- Voltage type AC
- Housing material: Other
- Overload capability: No.
- Product type
Servo motor
- Flange size
40 mm
- Holding torque
0.21 Nm
- Manufacturer part #
SH30401P1DF4100
- Type
SH30401P1DF4100
- Phases
3
- Nominal power
0.17 kW
IP65
- Max. ambient temperature
120 °C
- Min. ambient temperature
-15 °C
- Type
Other
- Number of pins
5
Other
AC
230 V
3
Other
5
Other
50-60 Hz
-15-120 °C
IP65
Other
0.75
FALSE
FALSE
None
FALSE
Other
Other
Other
FALSE
Other
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756875 Schneider Electric Servo motor SH30401P1DF4100 SH30401P1DF4100 0.21 Nm
User & Safety Instructions
User & Safety Instructions 3756875 Schneider Electric Servo motor SH30401P1DF4100 SH30401P1DF4100 0.21 Nm
Description
Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 40 mm and a motor length of 1 stack. Its winding is optimized for torque and speed. It has a continuous standstill torque of 0.21 Nm and a peak torque of 0.75 Nm. The voltage-dependent rated speed reaches 9000 rpm with a nominal power of up to 0.17 kW. The shaft end is fitted with a key. The absolute value encoder is designed as a multiturn with medium resolution of 15 bits and transmission via DSL. A holding brake is integrated. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M17 connector to corresponding Lexium 62 servo drives. The degree of protection of the shaft and the housing are designed in IP65.
