Schneider Electric Servo motor SH30551P0BF4000 SH30551P0BF4000 0.42 Nm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,399.00 / piece)
€ 2,399.00
incl. VAT
14-day return policy included
Technical specifications
- Number of phases: 3
- Shaft end design: Other
- Design: Other
- Load cycle: Other
- Rated frequency 50-60 Hz
- Rated voltage: 230 V
- Operating temperature -15 °C
- Suitable for frequency control: No.
- Intrinsic safety (IS): Without
- Insulation class IEC: Other
- Breakdown torque ratio: 1.5
- Cooling method: Other
- With condensation protection: No.
- With positive temperature coefficient resistor (PTC): No.
- With resistance thermometer detector (RTD): No.
- Motor energy efficiency class: Other
- Voltage type AC
- Housing material: Other
- Overload capability: No.
- Product type
Servo motor
- Flange size
55 mm
- Holding torque
0.42 Nm
- Manufacturer part #
SH30551P0BF4000
- Type
SH30551P0BF4000
- Phases
3
- Nominal torque
0.42 Nm
- Nominal power
0.29 kW
IP65
- Max. ambient temperature
120 °C
- Min. ambient temperature
-15 °C
- Type
Other
- Number of pins
3
Other
AC
230 V
3
Other
3
Other
50-60 Hz
-15-120 °C
IP65
Other
1.5
FALSE
FALSE
None
FALSE
Other
Other
Other
FALSE
Other
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756837 Schneider Electric Servo motor SH30551P0BF4000 SH30551P0BF4000 0.42 Nm
User & Safety Instructions
User & Safety Instructions 3756837 Schneider Electric Servo motor SH30551P0BF4000 SH30551P0BF4000 0.42 Nm
Description

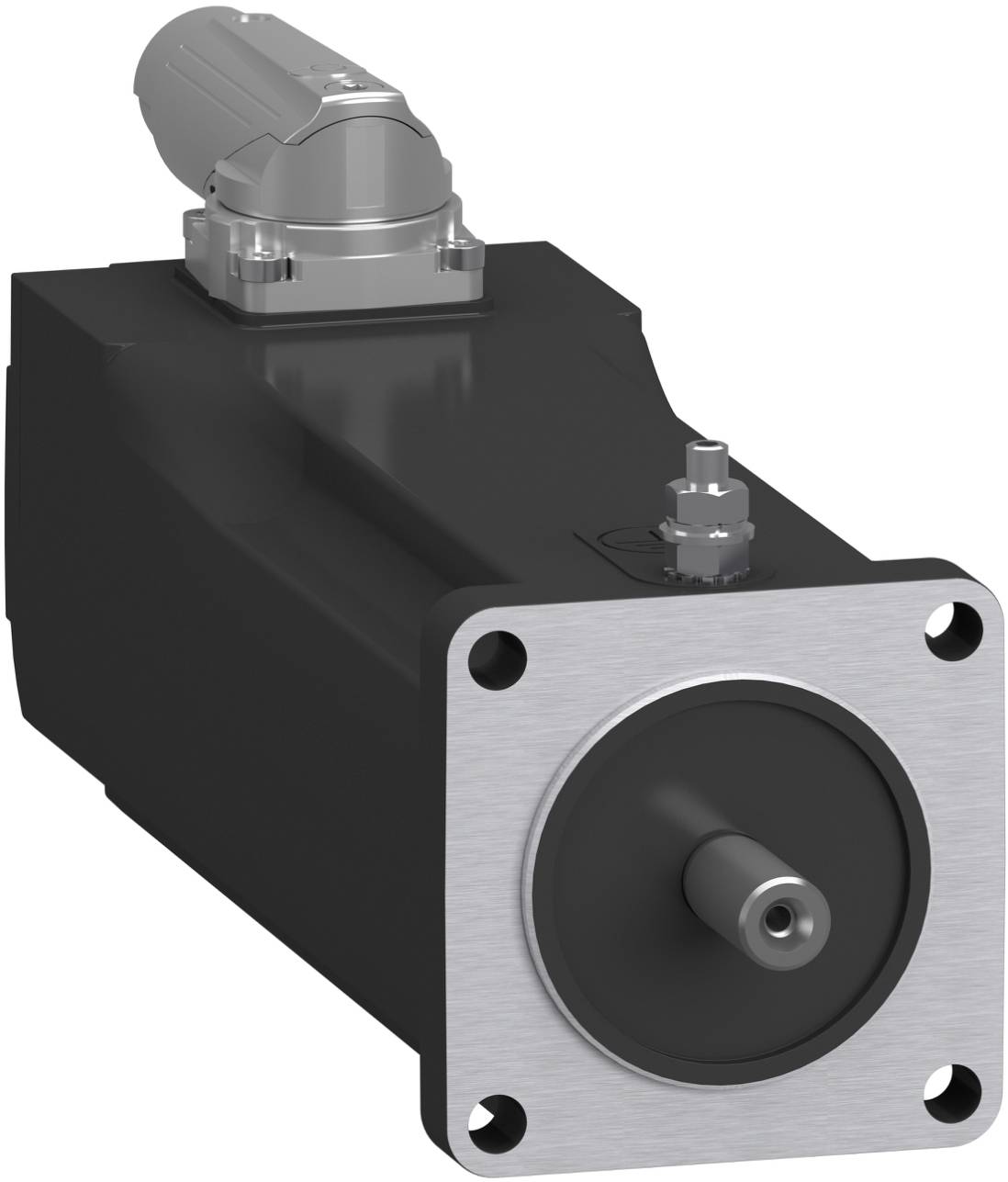

Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 55 mm and a motor length of 1 stack. Its winding is optimized for torque and speed. It has a continuous standstill torque of 0.42 Nm and a peak torque of 1.5 Nm. The voltage-dependent rated speed reaches 8000 rpm with a nominal power of up to 0.29 kW. The shaft end is designed as a smooth shaft. The absolute encoder is designed as a multiturn with high resolution of 18 bits and transmission via DSL. A holding brake is integrated. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M17 connector to corresponding Lexium 62 servo drives. The protection class of the shaft is in IP54 and of the housing in IP65.
This text is machine translated.
This text is machine translated.
