Name: Schneider Electric Servo motor SH31401P1AA4000 SH31401P1AA4000
Brand: Schneider Electric
SKU: 3756998
Availability: BackOrder

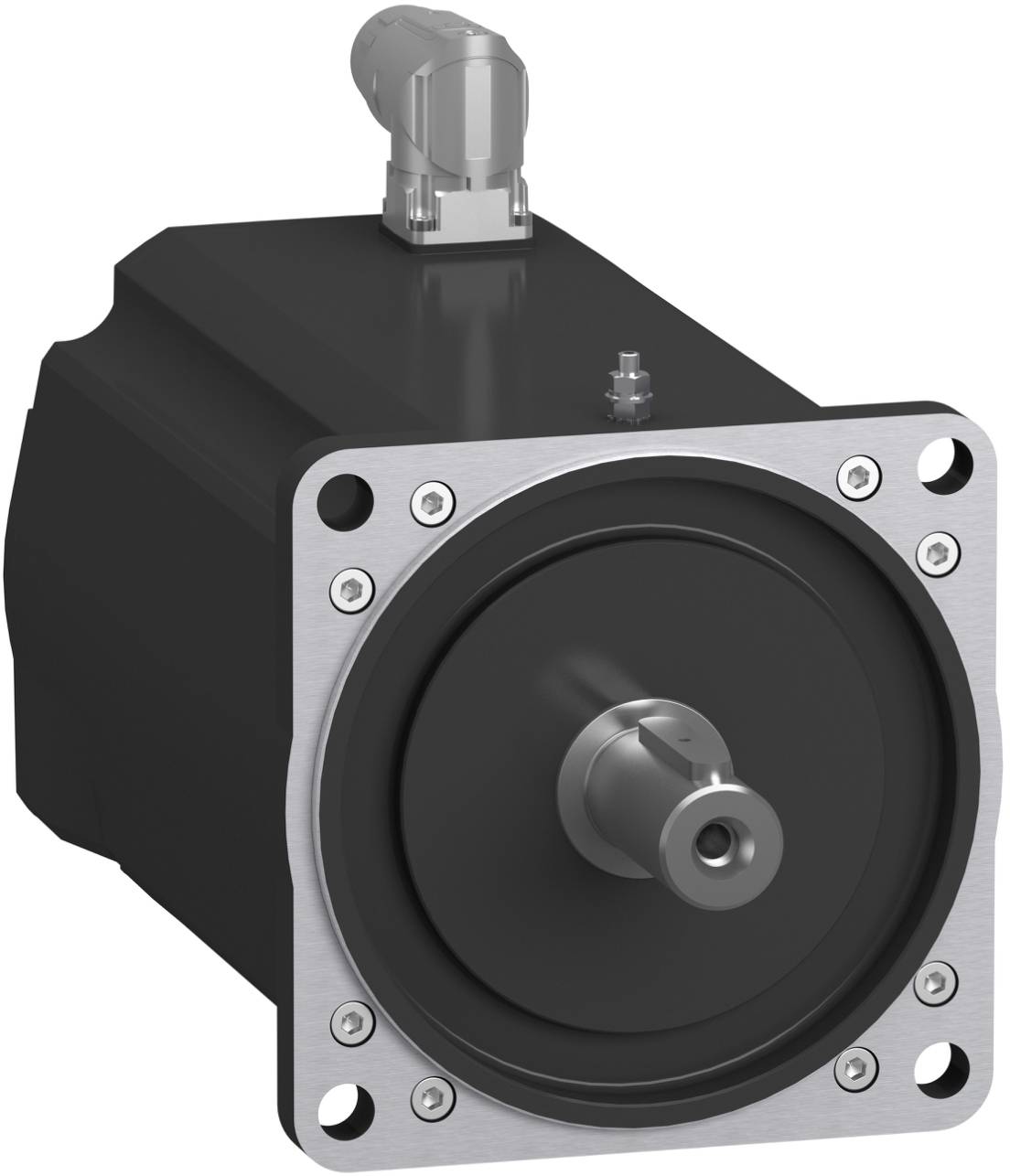

Industrial electric servo motor with square front flange and protruding shaft, shown isolated on a white background.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,619.00 / piece)

€ 3,619.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of phases: 3
Shaft end design: Other
Design: Other
Load cycle: Other
Rated frequency 50-60 Hz
Rated voltage: 230 V
Operating temperature -15 °C
Suitable for frequency control: No.
Intrinsic safety (IS): Without
Insulation class IEC: Other
Breakdown torque ratio: 27
Cooling method: Other
With condensation protection: No.
With positive temperature coefficient resistor (PTC): No.
With resistance thermometer detector (RTD): No.
Motor energy efficiency class: Other
Voltage type AC
Housing material: Other
Overload capability: No.

Product type: Servo motor

Manufacturer part #: SH31401P1AA4000

Type: SH31401P1AA4000

: IP65

Type: Other

Number of pins: 5

: Other

: AC

: 230 V

: 3

: Other

: 5

: Other

: 50-60 Hz

: -15-120 °C

: IP65

: Other

: 27

: FALSE

: FALSE

: None

: FALSE

: Other

: Other

: Other

: FALSE

: Other

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3756998 Schneider Electric Servo motor SH31401P1AA4000 SH31401P1AA4000

User & Safety Instructions

User & Safety Instructions 3756998 Schneider Electric Servo motor SH31401P1AA4000 SH31401P1AA4000

Description

Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 140 mm and a motor length of 1 stack. Its winding is optimized for torque and speed. It has a continuous standstill torque of 11.1 Nm and a peak torque of 27 Nm. The voltage-dependent rated speed reaches 3000 rpm with a nominal power of up to 2.9 kW. The shaft end is fitted with a key. The absolute encoder is designed as a single turn with high resolution of 18 bits and transmission via DSL. There is no integrated holding brake. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M40 connector to corresponding Lexium 62 servo drives. The protection class of the shaft is in IP54 and of the housing in IP65.

This text is machine translated.
