Schneider Electric SSR SSP1D425BDT 25 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

EAN:
Part number:
Item no:

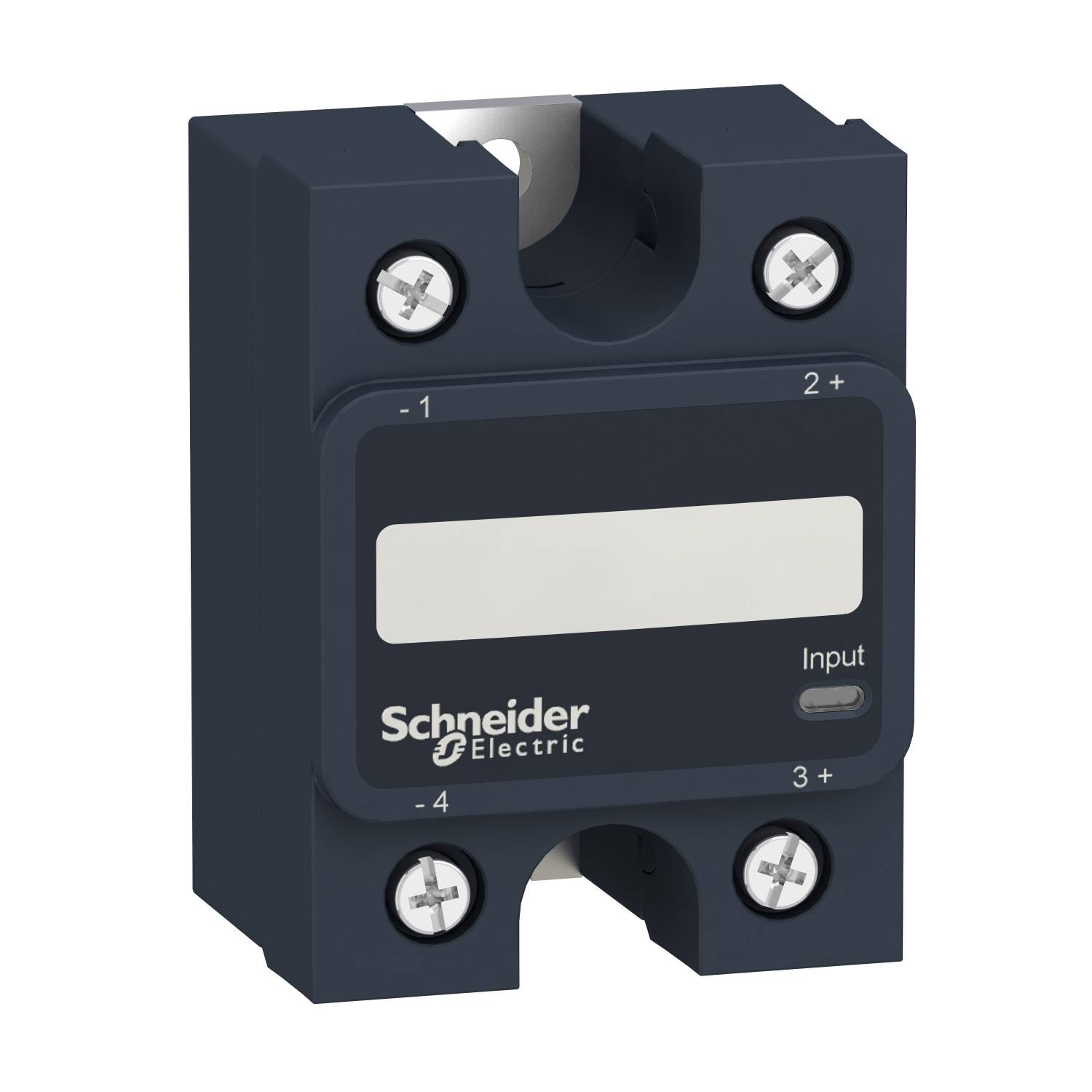

A black, rectangular electrical device labelled 'Schneider Electric' and 'Input', with screw terminals at the corners.
Packaging type
Single
Product type
SSR
Control voltage (min.)
3.5 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
150 V DC
Datasheet (PDF)
Dispatches on Fri 30 Oct
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Single

Product type

SSR

Type

SSP1D425BDT

Switching type

DC circuit

Connection

Screw terminal

Control voltage (min.)

3.5 V DC

Control voltage (max.)

32 V DC

Control voltage range

3.5 - 32 V DC

Switching voltage (min.)

1 V DC

Switching voltage (max.)

150 V DC

Current load (max.)

25 A

Width

59 mm

Height

35 mm

Length

45 mm

Content

1 pc(s)

1

FALSE

25 A

25 A

AC/DC

25 A

25 A

25 A

FALSE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2922438 Schneider Electric SSR SSP1D425BDT 25 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

Datasheet 2922438 Schneider Electric SSR SSP1D425BDT 25 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2922438 Schneider Electric SSR SSP1D425BDT 25 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

Information

Information 2922438 Schneider Electric SSR SSP1D425BDT 25 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

Description

Zelio relay Semiconductor relay for mounting on a heatsink or on mounting plate. The low internal voltage drop reduces the heat loss. The factory-fitted heat sink film enables quick, simple and clean installation without the use of heat-conducting paste or pads. Switching voltage 1-150 VDC. Current 25 A. Pole 1. Behaviour DC switch switching Control voltage 3,5-32 VDC. LED indicator Dimensions 45x59x35 mm Hockey puck design. Terminals with telescopic screws make it easy to connect cables with ring eyelets and cable lugs. Special pre-assembled heat insulation film. To select the separate heat sink, you have to consider heat.
