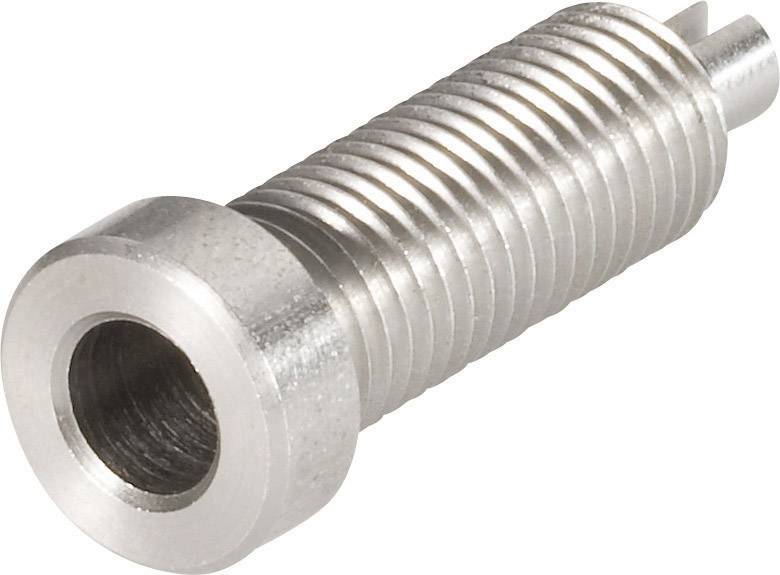

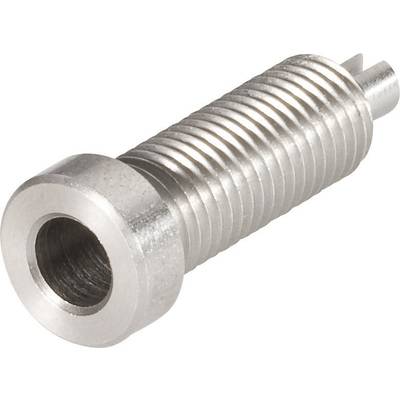

Schnepp BU 4000 V2A Jack socket Socket, vertical vertical Pin diameter: 4 mm Stainless steel 1 pc(s)
EAN:
Part number:
Item no:
Product type
Jack socket
Connector type
Socket, vertical vertical
Pin Ø
4 mm
Connection
Soldering
Nominal current
30 A
102 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€
Highlights & Details
Schnepp BU 4000 V2A Jack socket Socket, vertical vertical Pin diameter: 4 mm Stainless steel 1 pc(s)
- 4 mm
Technical specifications
- Product type
Jack socket
- Connector type
Socket, vertical vertical
- Pin Ø
4 mm
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Soldering
- Factory colour
Stainless steel
- Insulation type
Not insulated
- Manufacturer part #
BU 4000 V2A
- Type
BU 4000 V2A
- Thread type
M6 x 0.75
- Content
1 pc(s)
- RoHS-compliant
Yes
- Temperature range
-20 - +60 °C
- Material (details)
Stainless steel
- Nominal current (details)
30 A
- Cross section
1.5 mm²
- Connection
Soldering
- Cable diameter
1.5 mm²
Description
Resistant to solvents, acids and alkalis.
