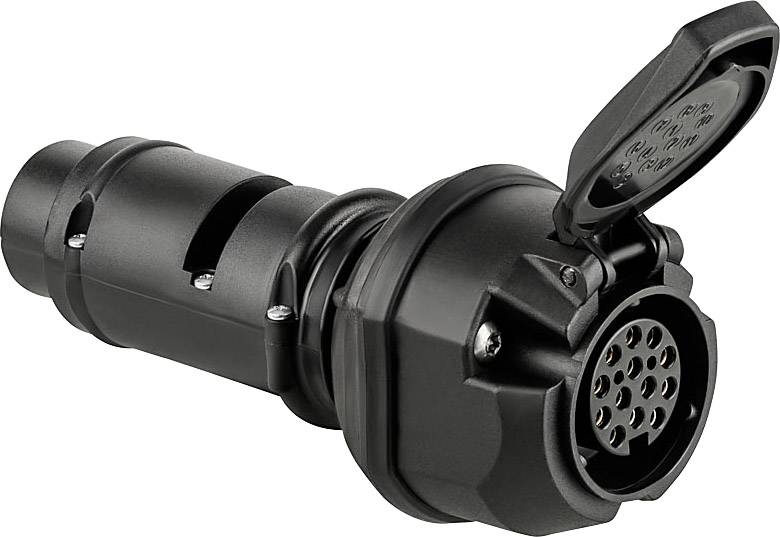

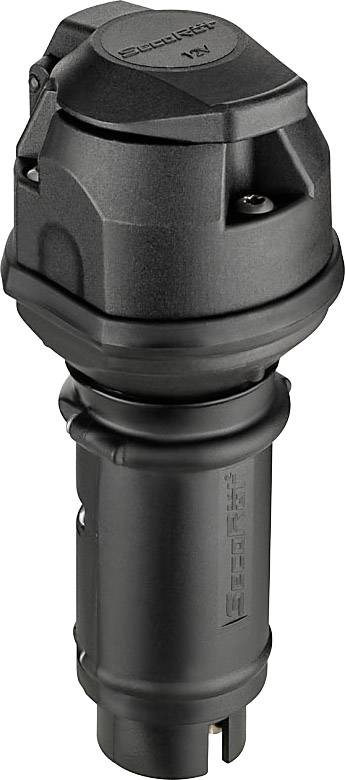

SecoRüt Voltage limiter 7-pin socket No. of cores 7
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Highlights & Details
Voltage reducer from 24 to 12 V 7 to 13 pin
- 7 to 13 pin according to ISO 1724 and ISO 11446
- Stable plastic stud housing
- Max. 70 W per channel.
- Over current and over temperature protection
Technical specifications
- Dim
(L x W x H) 185 x 75 x 75 mm
- Product type
Voltage limiter
- No. of cores
7
- Connection A

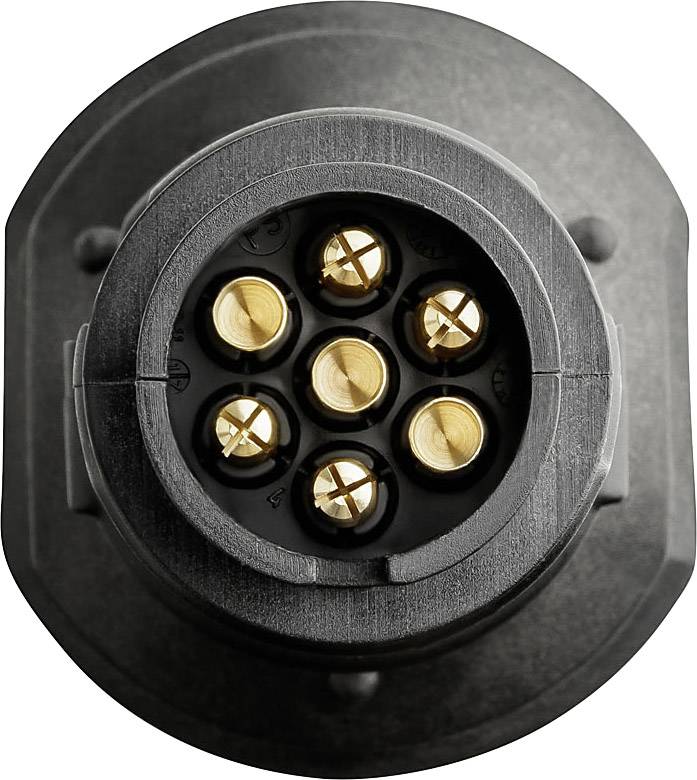

7-pin socket
- Connection B

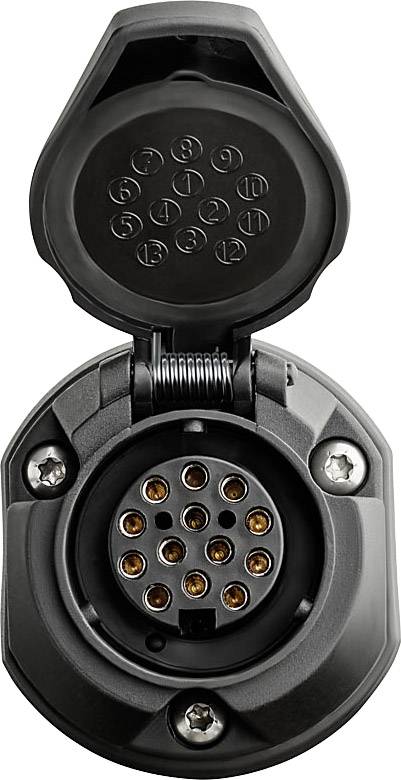

13-pin socket
- Type
Reduction from 24 to 12 volts
- Design type
Adapter
- Width
75 mm
- Height
75 mm
- Length
185 mm
Documents & Downloads
Datasheet
Datasheet 2148805 SecoRüt Voltage limiter 7-pin socket No. of cores 7
User & Safety Instructions
User & Safety Instructions 2148805 SecoRüt Voltage limiter 7-pin socket No. of cores 7
eNum certificate
eNum certificate 2148805 SecoRüt Voltage limiter 7-pin socket No. of cores 7
Description
With the voltage reducer, a 12 V car trailer can be operated without modification to a 24 V towing vehicle. The voltage reducer is simply plugged between trailer socket and trailer plug. The device reduces the entire lighting to 12 V.
This text is machine translated.
This text is machine translated.
Features
- Stable plastic stud housing
- Max. 70 W per channel.
- Over current and over temperature protection
- E13 approval
Hints
Can only be used for lighting
System requirements
- For 7 pin socket and 13 pin plug ISO 1724 and ISO 11446
