Buy Sedeco B414A 12V-GN Standard indicator light with bulb Green 1 pc(s)

Red LED indicator light with thread and two black cables on a white background.

Image similar

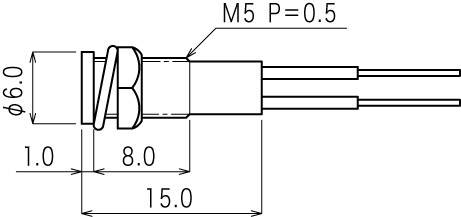

Technical drawing of a cylindrical plug. Dimensions: diameter 6 mm, length 15 mm, thread M5 with pitch 0.5 mm. Wire lengths vary.

1/2

Image similar

Product type

Standard indicator light with bulb

Voltage (max.)

12 V

Colour

Green

Recess diameter

5 mm

Connection

Leads

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

80 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1.92 / piece)

€ 1.92

plus VAT.

Report legal concerns

Highlights & Details

Miniature-signal

Colours (LEDs) Green

Our service for you

Technical specifications

Material: Polycarbonate.

Product type: Standard indicator light with bulb

Voltage (max.): 12 V

Colour: Green

Type: Circular

Recess diameter: 5 mm

Fitting type: Hole and nut

Enclosure material: Polycarbonate (PC)

Connection: Leads

Length: 21 mm

Factory colour: Green

Content: 1 pc(s)

: n.rel.

Dim: (Ø x L) 6 mm x 21 mm

(Ø): 6 mm

RoHS-compliant: Yes

Voltage (min.): 12 V

Type: B414A 12V-GN

Type: Screw fixing

Type: B-414

Connection: Wires: about 6 mm

Operating voltage: 12 V AC

Documents & Downloads

Datasheet

Datasheet 722715 Sedeco B414A 12V-GN Standard indicator light with bulb Green 1 pc(s)

User & Safety Instructions

User & Safety Instructions 722715 Sedeco B414A 12V-GN Standard indicator light with bulb Green 1 pc(s)

Description

With integrated bulb for low voltage. Minimum dimensions for universal use.
