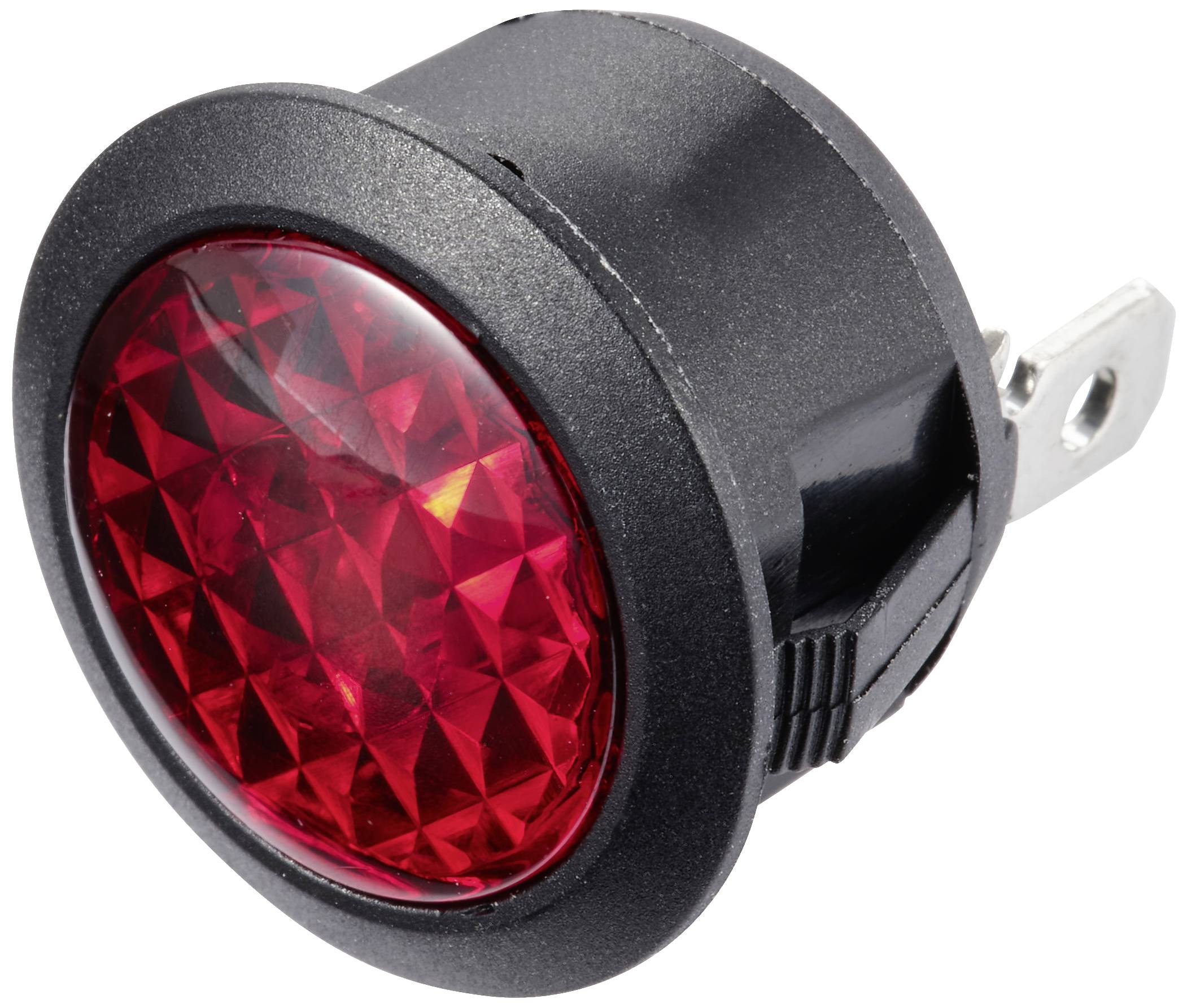

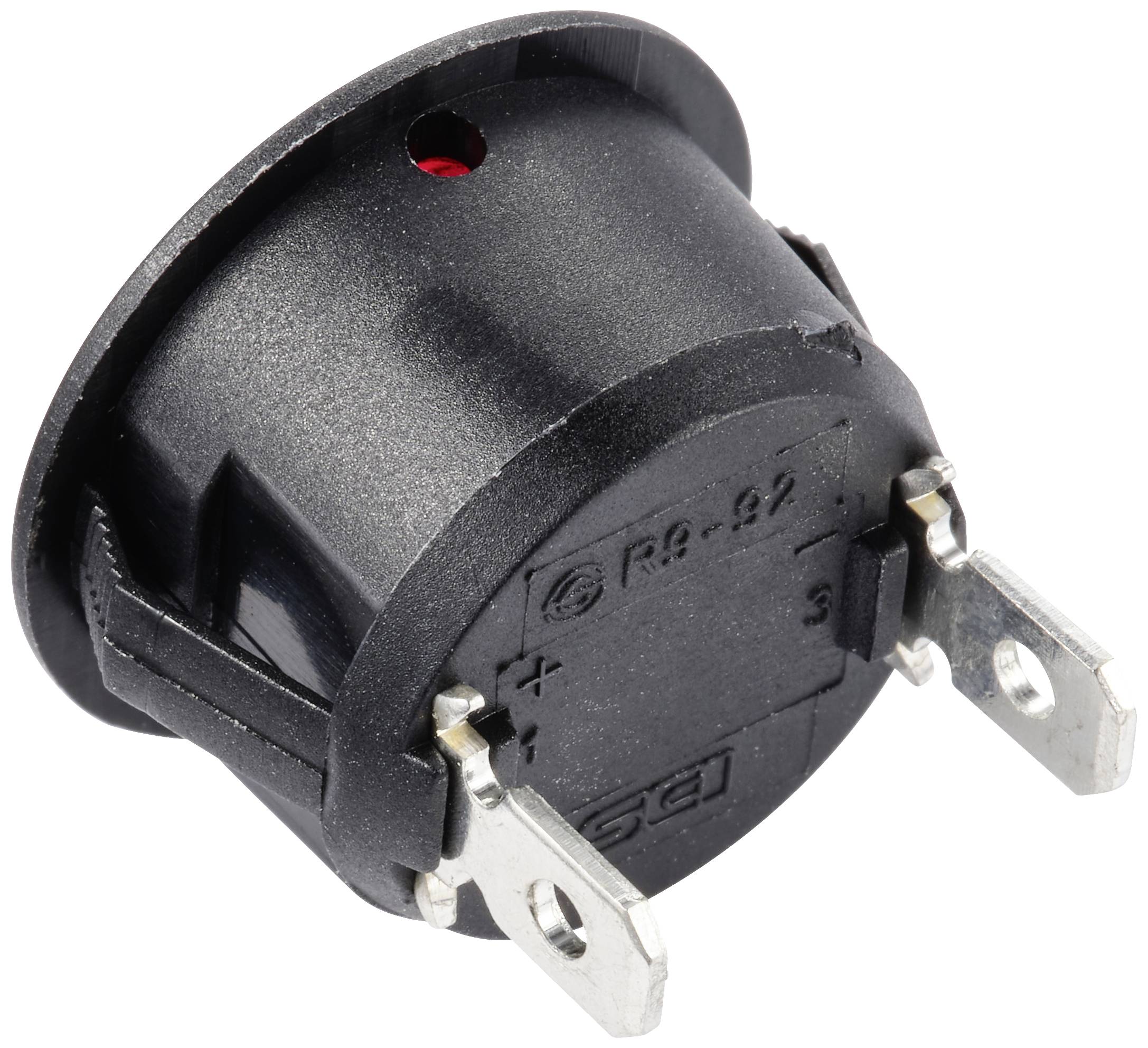

TRU COMPONENTS TC-11193648 Standard indicator light with bulb 12 V DC Red 1 pc(s)
Product type
Standard indicator light with bulb
Voltage (max.)
12 V DC
Colour
Red
Recess diameter
20.2 mm
Connection
CEE 7/16 plug (2.8 x 0.8 mm)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.79 / piece)
€ 1.79
incl. VAT
14-day return policy included
Highlights & Details
Standard indicator light with bulb
- 12 V DC
- Colours (LEDs) Red
Our service for you
Technical specifications
- Current: 20 mA
- Insulation resistance: 100 MΩ min. at 500 V DC
- Dielectric strength: 1500 V AC 1 min.
- Mounting: Snap-in
- Frame material: Nylon 66
- Terminal material: Tin plated brass
- Product type
Standard indicator light with bulb
- Voltage (max.)
12 V DC
- Colour
Red
- Type
Circular
- Recess diameter
20.2 mm
- Fitting type
Snap-in hole
- Enclosure material
Polyamide 6.6
- Connection
CEE 7/16 plug (2.8 x 0.8 mm)
- Aperture diameter
23 mm
- Factory colour
Red
Black
- Industrial packaging
No
- Content
1 pc(s)
n.rel.
- Recess depth
20.3 mm
- RoHS-compliant
Yes
- Voltage (min.)
12 V DC
- Type
TC-11193648
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2798412 TRU COMPONENTS TC-11193648 Standard indicator light with bulb 12 V DC Red 1 pc(s)
Datasheet 2798412 TRU COMPONENTS TC-11193648 Standard indicator light with bulb 12 V DC Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2798412 TRU COMPONENTS TC-11193648 Standard indicator light with bulb 12 V DC Red 1 pc(s)
