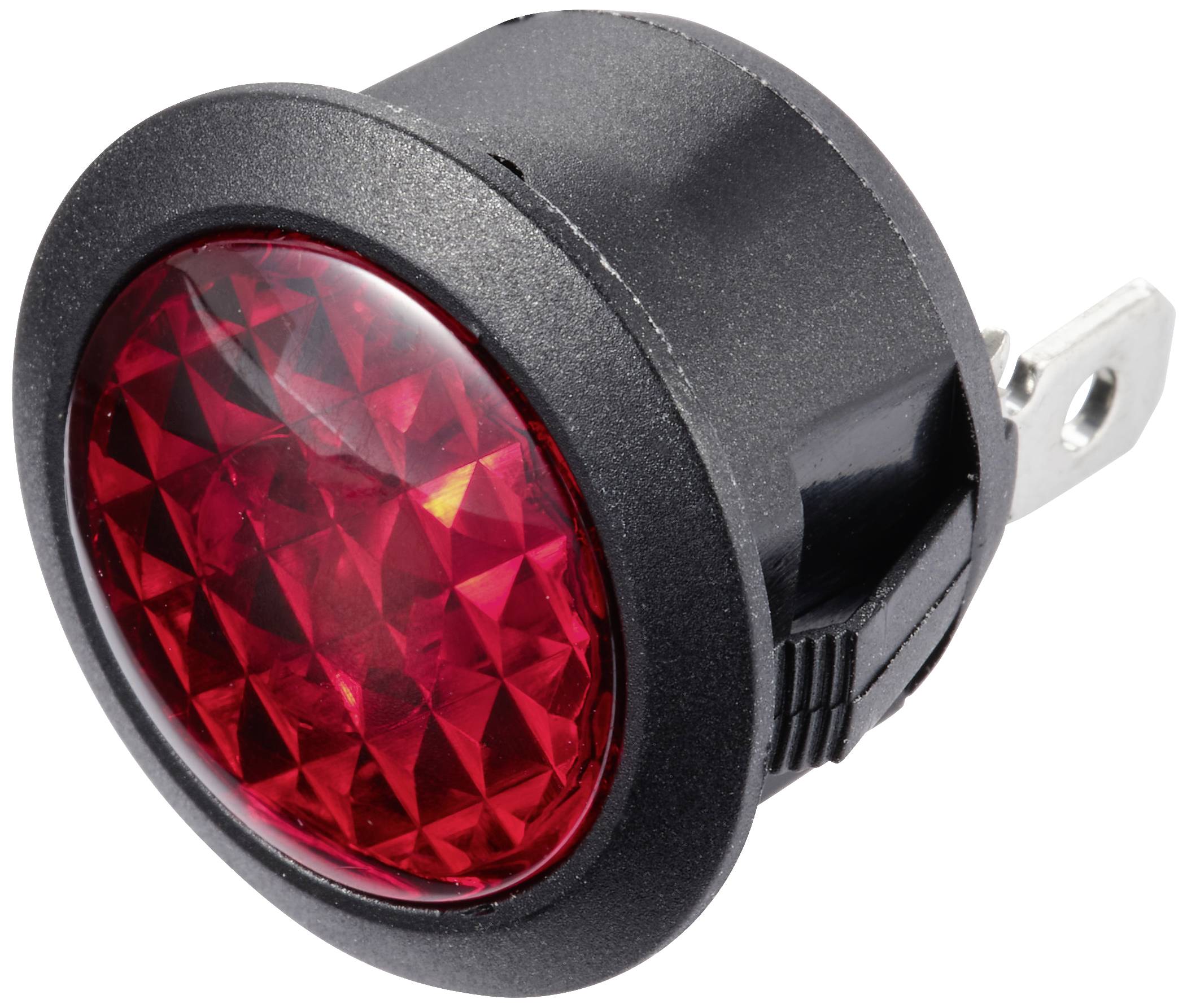

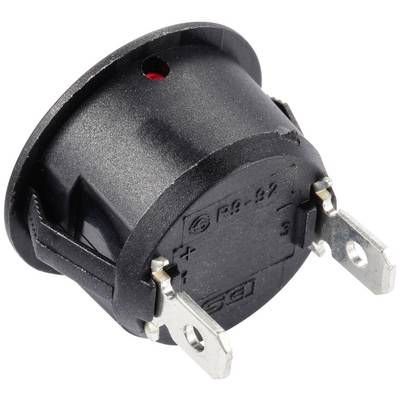

TRU COMPONENTS TC-11193656 Standard indicator light with bulb 24 V DC Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Standard indicator light with bulb
Voltage (max.)
24 V DC
Colour
Red
Recess diameter
20.2 mm
Connection
CEE 7/16 plug (2.8 x 0.8 mm)
Solder lug
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details
Standard indicator light with bulb
- 24 V DC
- Colours (LEDs) Red
Our service for you
Technical specifications
- Insulation resistance: 100 MΩ min. at 500 V DC
- Dielectric strength: 1500 V AC 1 min.
- Mounting: Snap-in
- Frame material: Nylon 66
- Terminal material: Tin plated brass
- Product type
Standard indicator light with bulb
- Voltage (max.)
24 V DC
- Colour
Red
- Type
Circular
- Recess diameter
20.2 mm
- Fitting type
Snap-in hole
- Enclosure material
Polyamide 6.6
- Connection
CEE 7/16 plug (2.8 x 0.8 mm)
Solder lug
- Factory colour
Red
- Industrial packaging
No
- Content
1 pc(s)
n.rel.
- Recess depth
36.6 mm
- RoHS-compliant
Yes
- Voltage (min.)
12 V DC
- Type
TC-11193656
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2798414 TRU COMPONENTS TC-11193656 Standard indicator light with bulb 24 V DC Red 1 pc(s)
Datasheet 2798414 TRU COMPONENTS TC-11193656 Standard indicator light with bulb 24 V DC Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2798414 TRU COMPONENTS TC-11193656 Standard indicator light with bulb 24 V DC Red 1 pc(s)
