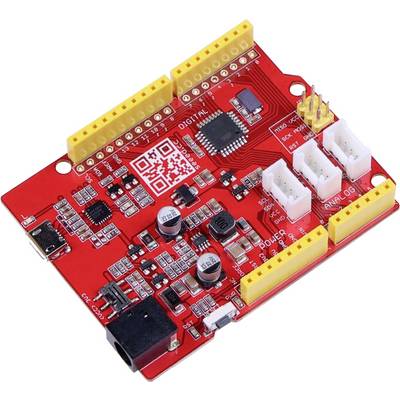

Seeed Studio 102010026 Compatible board Seeeduino V4.3
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Technical specifications
- RAM: 2 KB
- EEPROM: 1 kB
- 16 MHz clock rate
- Length
78 mm
- Width
115 mm
- Height
25 mm
- Product type
Compatible board
- Max. output current
40 mA
- Input voltage (max.)
12 V
- Input voltage (min.)
7 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1886941 Seeed Studio 102010026 Compatible board Seeeduino V4.3
Description
Seeeduino V4.2 is based on the Arduino UNO bootloader and a ATMEGA16U2 as a UART-to-USB converter, which was meant that the board could basically function like an FTDI chip. You can program the board via a micro USB cable, if you have an Android phone, you can easily find a micro ISB cable. In addition, you can supply the board with power via a DC socket input, 7 to 15V are permitted. There is a switch to select the system supply voltage, 3.3V or 5V was very useful when you want to set the system to 3.3V to save power.
Finally, the three built-in Grove interface can easily connect your board to Groves. Ich meine gekte geeduino V4.2 und some Groves.
This text is machine translated.
Finally, the three built-in Grove interface can easily connect your board to Groves. Ich meine gekte geeduino V4.2 und some Groves.
