Name: Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe
Brand: Senseca
SKU: 3410756
Availability: BackOrder

A black food thermometer probe with a cable, labeled 'Sensatec', designed for temperature measurements in cooking or food safety.

A black temperature probe with a long metal tip, featuring 'Sensirad' branding, suitable for precise measurement.

A black temperature probe with a pointed metal tip, labeled 'SENSERA,' used for precise temperature measurements.

This is a close-up image of a metal rod with a tapered tip, possibly a tool or part of a mechanical component, against a plain background.

Advertising graphic with measuring instrument: operable whilst wearing gloves, USB-C power supply and data transfer, robust housing, over 200 hours runtime, intelligent DX sensors and multi-parameter measurement.

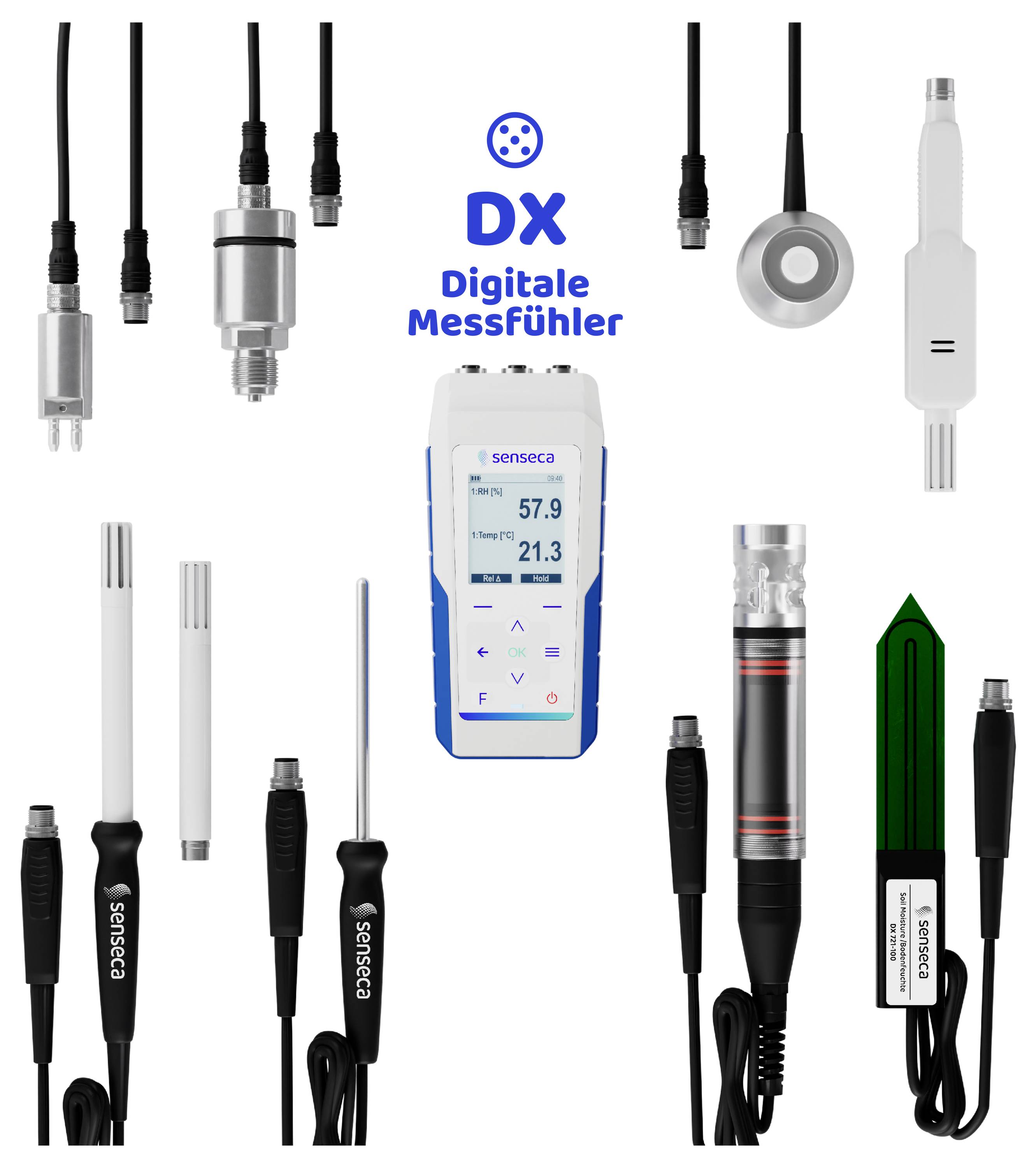

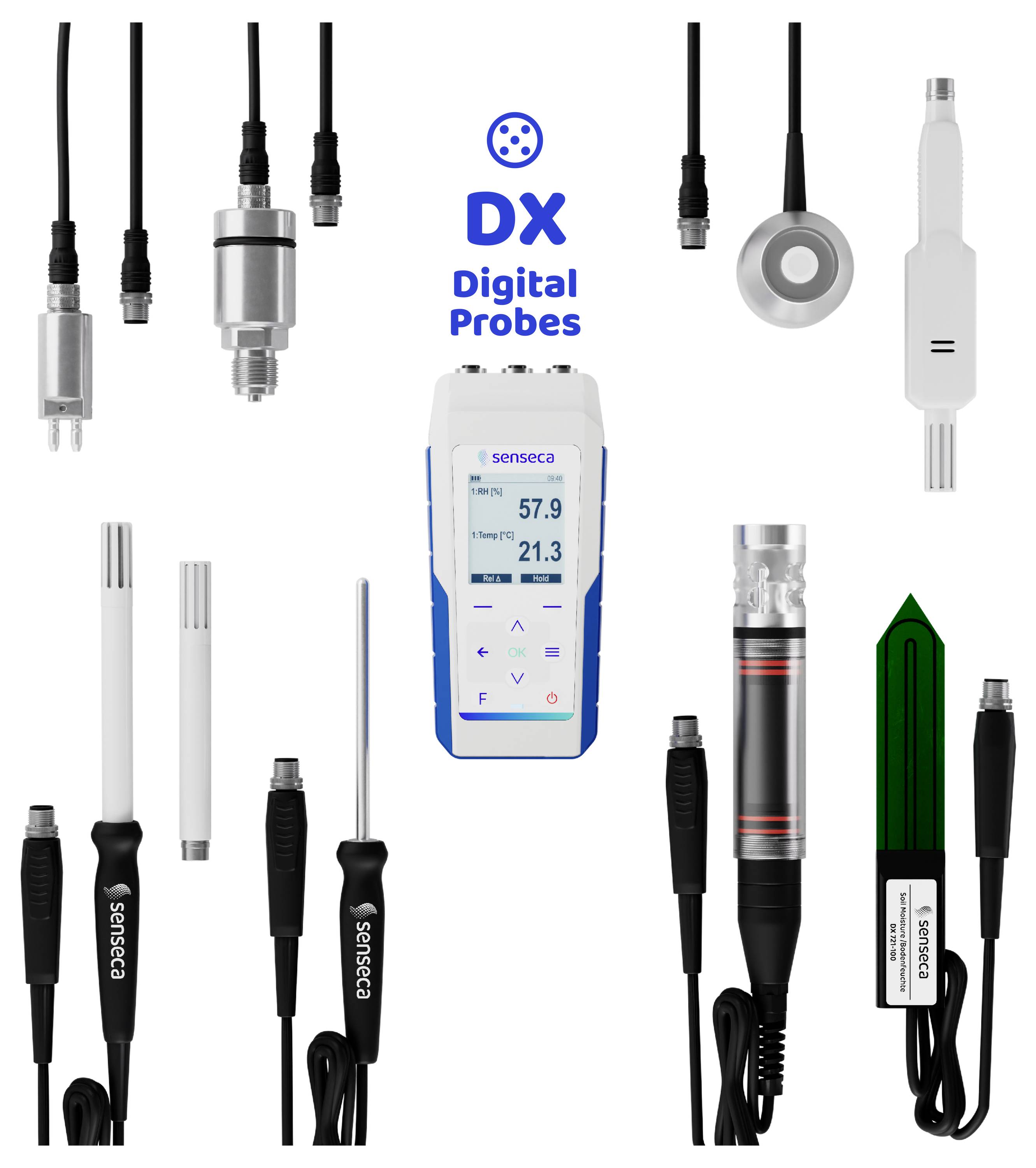

Advertising graphic featuring a handheld measuring device 'DX Digital Measuring Probe' with various connected sensors/probes for temperature, humidity and conductivity.

Advertising image of the senseca PRO-DOX mobile measuring device with display showing 57.9 % RH and 21.3 °C plus advantages: fast, precise, robust and expandable.

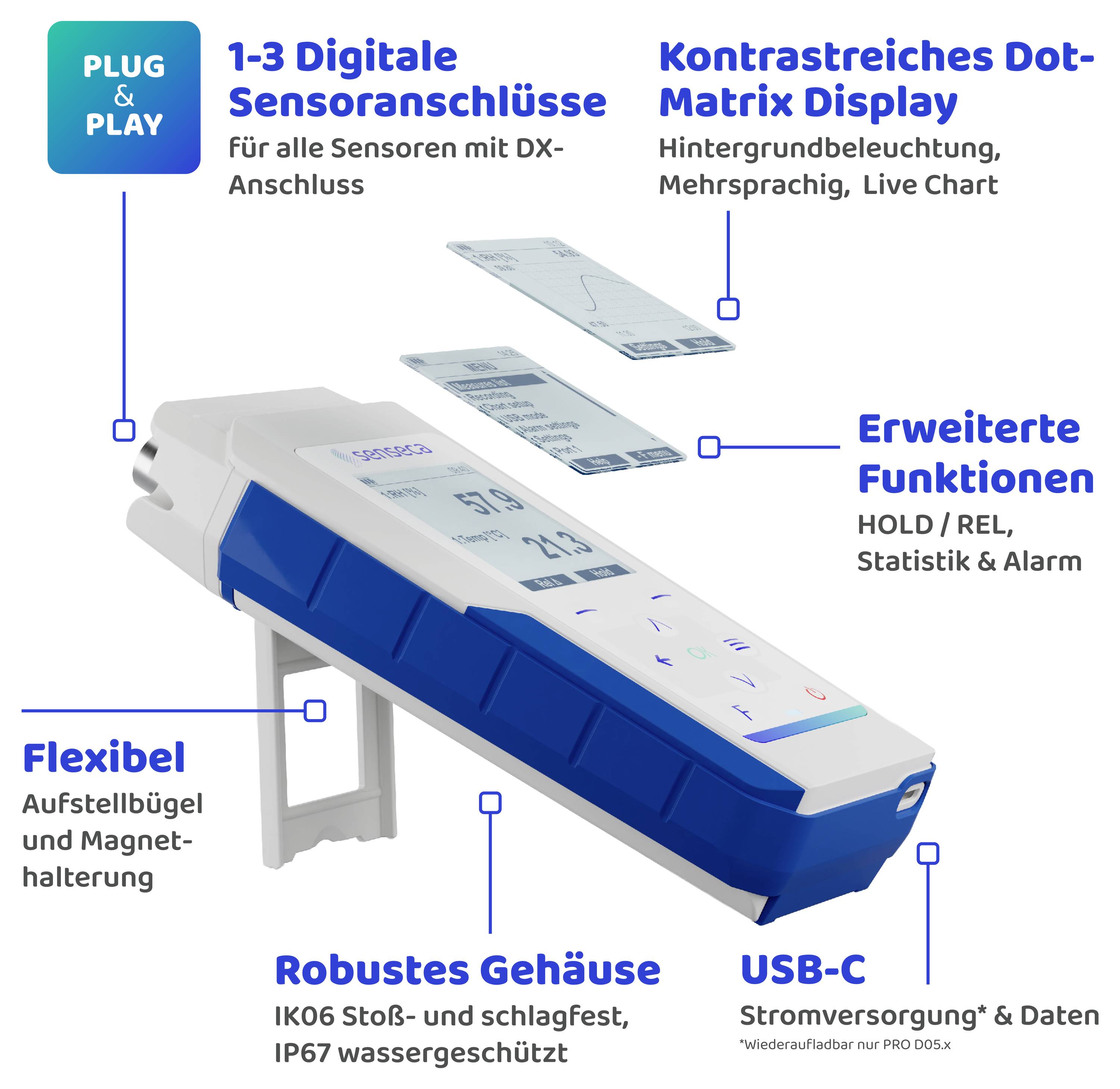

Product graphic of a sensor device with display; featuring 1–3 digital sensor connections, high-contrast dot-matrix display, advanced functions, flexible mounting bracket/magnetic holder, robust housing and USB-C

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-9

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-10

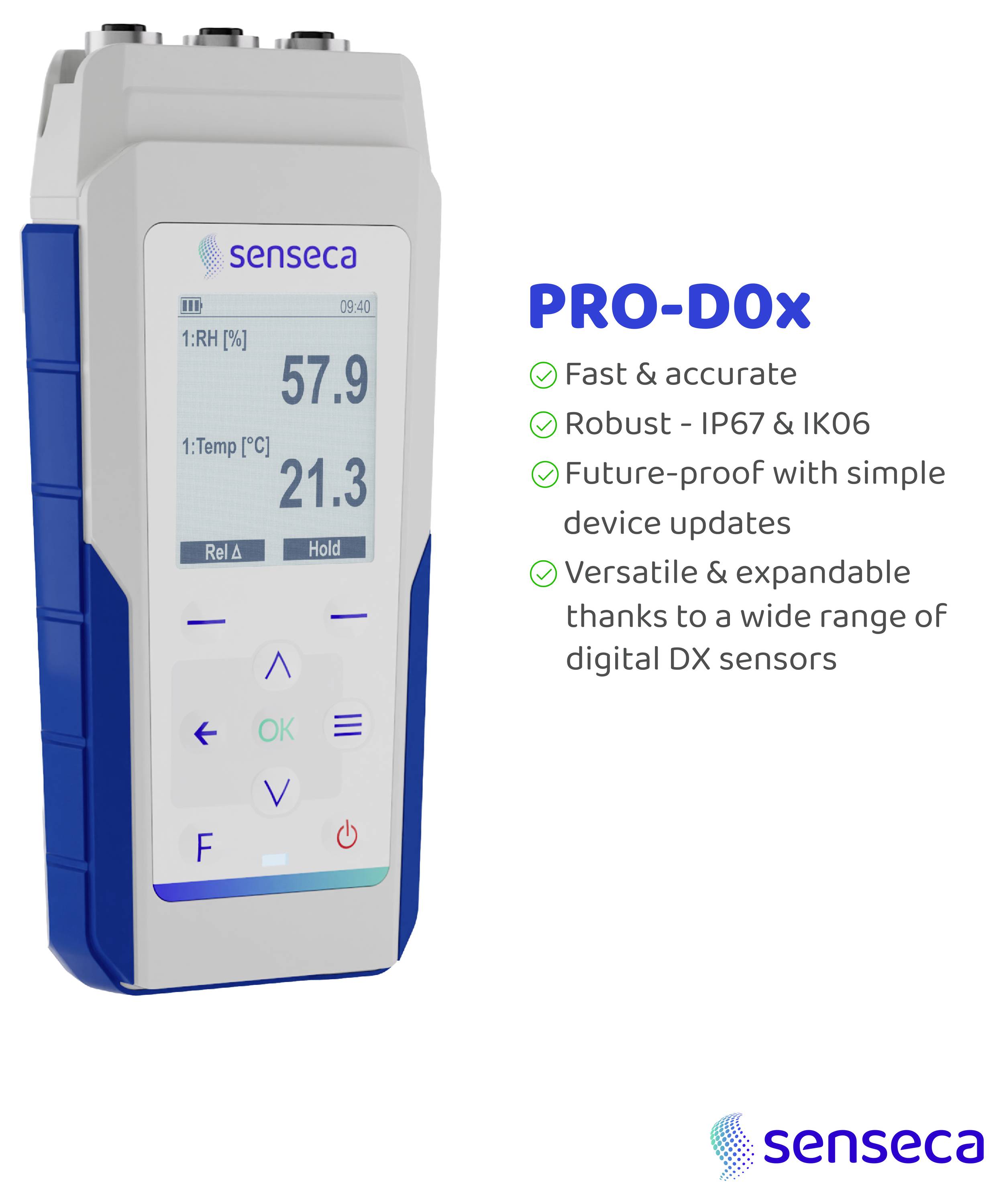

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-11

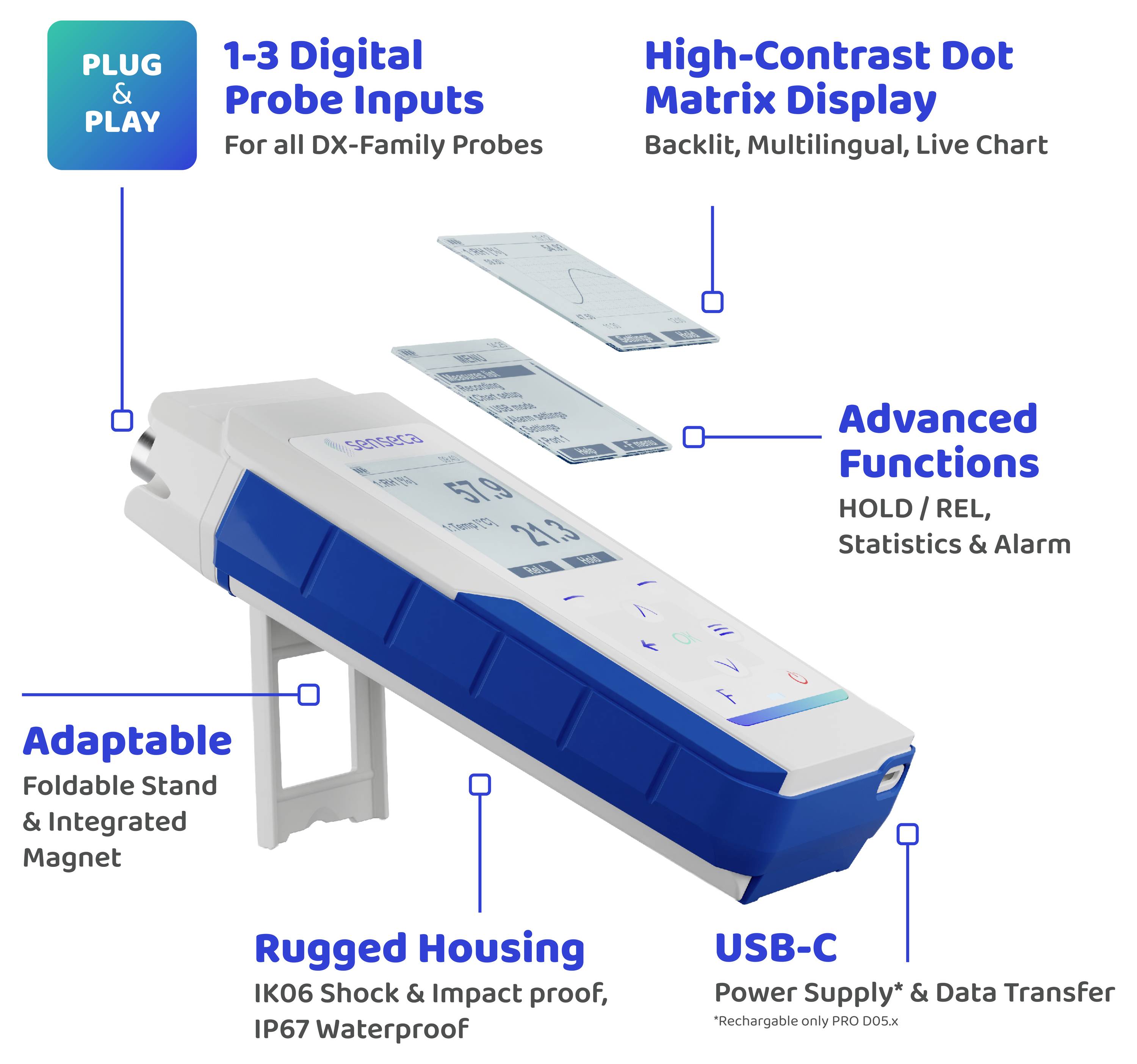

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-12

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-13

Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe-14

1/15

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Senseca DX 115 i3 150 L02 Digital Pt100 probe, large handle, high precision (e.g. for PRO D5x)

• 2-point factory calibration
• Changeable
• Fast and precise
• Ergonomic handle with high operating temperature up to 120 °C.
• Robust for many years of professional use
• Easy to clean
• Water resistant according to IP 67
• Optional DAkkS/ACCREDIA certification available

Technical specifications

Accuracy - ±0.05 °C (t = 0 °C), ±0.1 °C (0 °C ≤ t ≤ 100 °C), ±0.2 °C (-50 °C ≤ t less than 0 °C, 100 less than t ±250 °C), ≤ 0.3 °C (t = remaining range)
OUTPUT - UART (TTL 3.3V)

Product type: Needle probe

Max. temperature: +250 °C

Basic accuracy: 0.1 %

Accuracy ± °C: 0.05 °C

Sensor type: Pt100

: Manufacturer's standards (no certificate)

Sensor version: detachable

Response time: 3 s

Resolution (temperature): 0.01 °C

Features: incl. immersion probe

Probe length: 150 mm

Weight: 273 g

Calibration range: Temperature

Reading category: Ohne Messkategorie

Min. temperature: -50 °C

Type: DX 115-I3-150-L02

Documents & Downloads

Datasheet

Datasheet 3410756 Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe

User & Safety Instructions

User & Safety Instructions 3410756 Senseca DX 115-I3-150-L02 Needle probe -50 - +250 °C Sensor type Pt100 incl. immersion probe

Description

DX 115 is a highly precise, digital, wire wound Pt100 temperature sensor for the PRO D01 / PRO D05 hand-held measuring devices.
The sensor is factory calibrated and is immediately ready for use. Optionally, it can be supplied with a DAkkS/ACCREDIA calibration certificate.
The calibration data is stored in the sensor so that it can be exchanged without recalibration.
The digitization electronics integrated in the plug housing minimizes the effects of temperature,
Including 4-wire technology and thermal voltage compensation.
The user can adjust the sensor in two points (offset and slope) or by setting R0 (sensor resistance at 0°C) and the Callendar Van Dusen parameters. Supplied with 1, 2 or 5 m cable with 4-pin M12 connector.
