SEPA HY45AB05PSE26A-BLI Radial extractor 5 V 1.92 m³/h (L x W x H) 45 x 45 x 4.3 mm

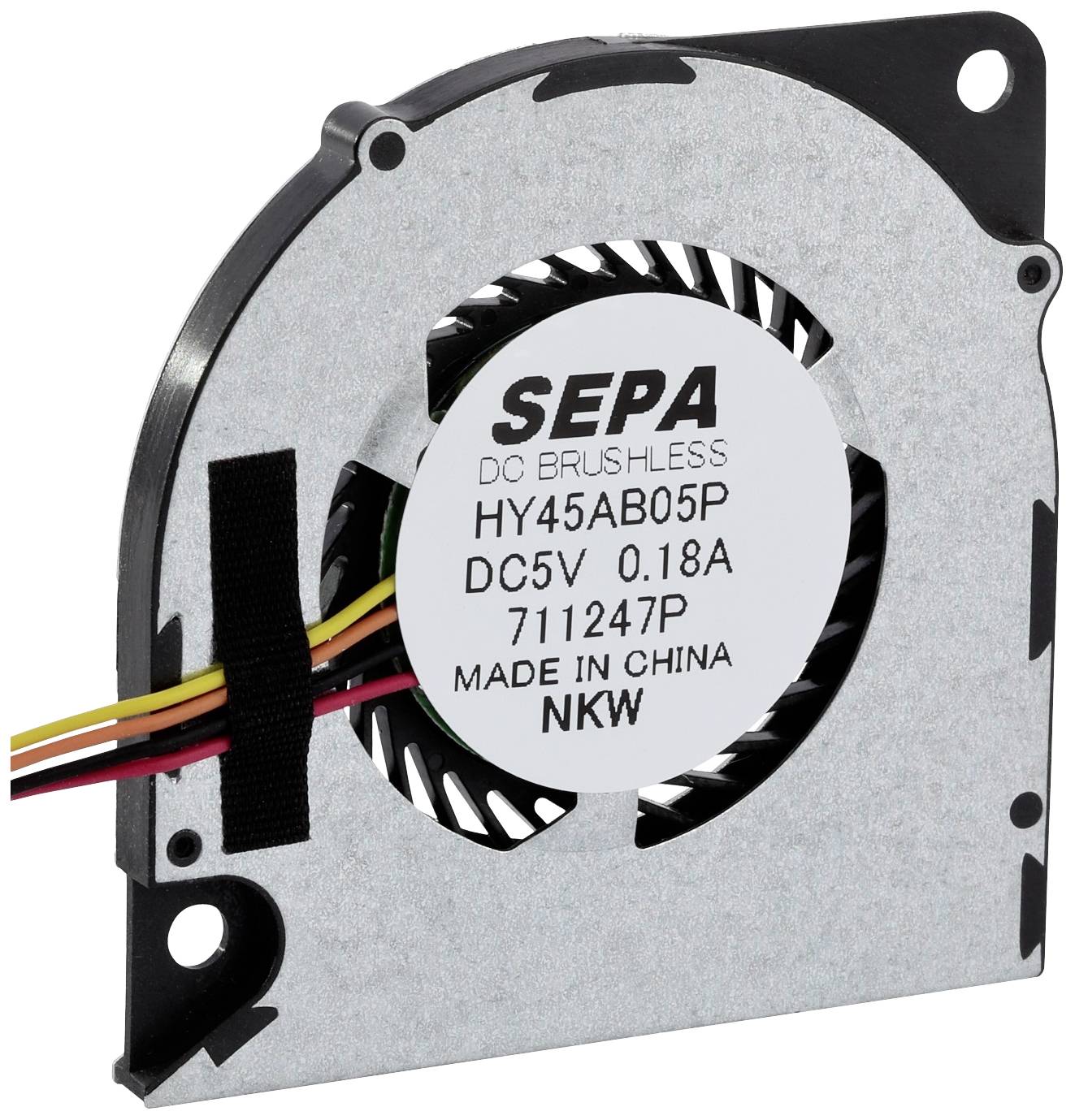

Fan with the inscription 'SEPA DC BRUSHLESS, HY45AB05P, DC5V 0.18A, 711247P, MADE IN CHINA, NKW' on the front.
Product type
Radial extractor
Nominal voltage
5 V
No. of wires
4
Power
0.9 W
Type of bearing
Plain bearing
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
18 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

SEPA radial fans HY45AB05PSE26A

  • Radial fan 5V with tachometer output and PWM input

Technical specifications

Product type

Radial extractor

Type

HY45AB05PSE26A-BLI

Nominal voltage

5 V

No. of wires

4

Min. operating voltage

4.5 V

Max. operating voltage

5.5 V

Operating voltage

4.5 - 5.5 V

0.9 W

Type of bearing

Plain bearing

Rotational speed

7700 U/min

Noise emission (max.)

31 dB

Air flow rate

1.92 m³/h

Weight

12 g

Min. temperature

-10 °C

Max. temperature

60 °C

Length

45 mm

Width

45 mm

Height

4.3 mm

Dim

(L x W x H) 45 x 45 x 4.3 mm

Documents & Downloads

Datasheet

Datasheet 2632053 SEPA HY45AB05PSE26A-BLI Radial extractor 5 V 1.92 m³/h (L x W x H) 45 x 45 x 4.3 mm

User & Safety Instructions

User & Safety Instructions 2632053 SEPA HY45AB05PSE26A-BLI Radial extractor 5 V 1.92 m³/h (L x W x H) 45 x 45 x 4.3 mm

Description

Versatile radial fans in proven industrial quality, magnetically fixed plain bearing (Magfix®) for long life.

This text is machine translated.
