Name: SEPA LF_40B12 Axial fan 12 V DC 152 l/min (Ø x H) 40 mm x 10 mm
Brand: SEPA
SKU: 358381
Availability: InStock

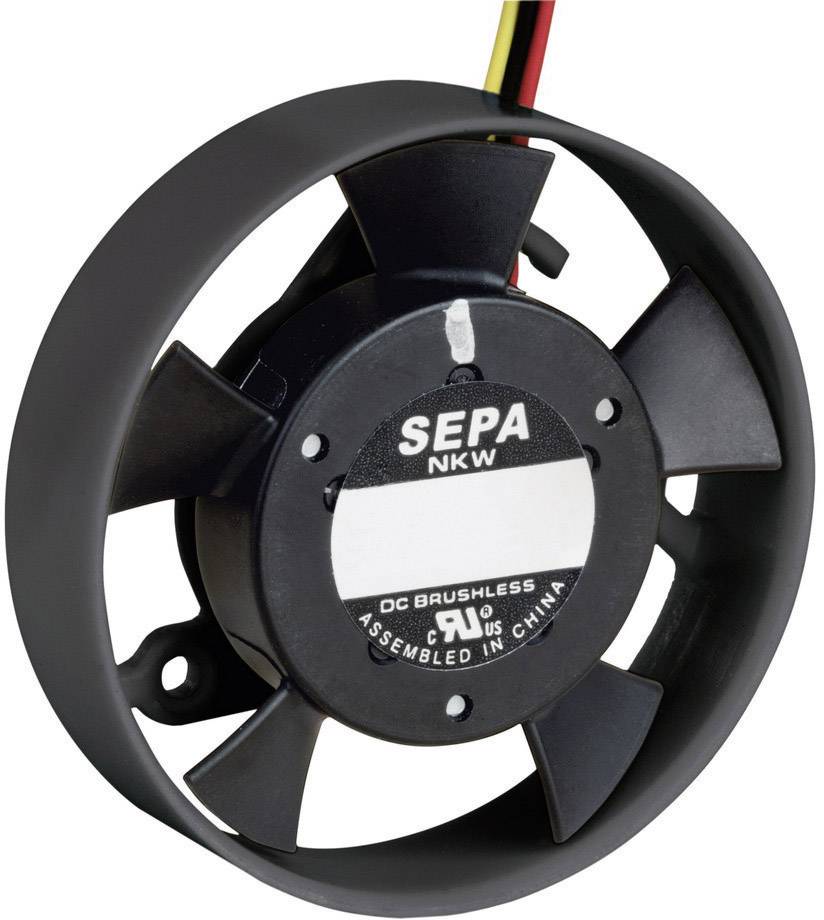

A black fan from the manufacturer SEPA, labelled 'DC Brushless' and 'Assembled in China', suitable for electronic devices.

Image similar

Product type

Axial fan

Nominal voltage

12 V DC

No. of wires

Type of bearing

Plain bearing

Air flow rate

152 l/min

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

31 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

MTBF: 190000 h

Product type: Axial fan

Type: LF_40B12

Nominal voltage: 12 V DC

No. of wires: 2

Max. current consumption: 45 mA

Type of bearing: Plain bearing

Air flow rate: 152 l/min

Pressure (max.): 35.3 Pa

Material: PBT

: (L10) 60000 h

Min. temperature: +80 °C

Max. temperature: -20 °C

(Ø): 40 mm

Height: 10 mm

Dim: (Ø x H) 40 mm x 10 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 358381 SEPA LF_40B12 Axial fan 12 V DC 152 l/min (Ø x H) 40 mm x 10 mm

User & Safety Instructions

User & Safety Instructions 358381 SEPA LF_40B12 Axial fan 12 V DC 152 l/min (Ø x H) 40 mm x 10 mm

Conformity certificate

Conformity certificate 358381 SEPA LF_40B12 Axial fan 12 V DC 152 l/min (Ø x H) 40 mm x 10 mm

Description

This high-tech mini exhaust is used for industrial purposes, in particular for LED-cooling used and, despite of its small size has a remarkable flow rate. Due to the almost linear fan characteristics and the extremely low current consumption, the fan is suitable for various applications. It has permanent electronic protection against reverse polarity, blocking and thermal overloading. Thanks to the extremely low rotor weight and precise balancing. It has a high shock and vibration resistance. Other features of this fan are, extremely rugged and dimensionally stable casing made of fiber-reinforced PBT (UL E 54695), long-life bearings, printed board made of polyester (UL E 44247) and absolute reliability by 100% burn-in.

This text is machine translated.
