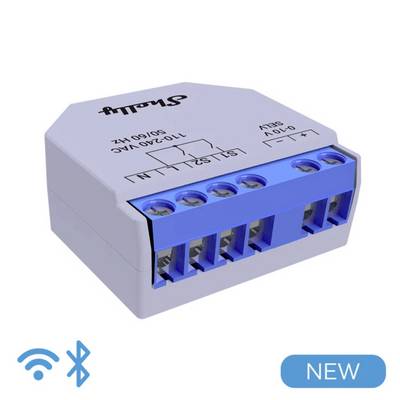

Shelly Shelly Plus 0-10V Dimmer Dimmer actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details
Shelly dimmer 0-10V
- For controlling 0 - 10 V dimmers
- Control via Shelly Smart control APP
- Compatible with Alexa and Home Assistant
Technical specifications
- WLAN protocol 802.11 b/g/n
- Bluetooth® protocol: 4.2
- Product type
Dimmer actuator
Alexa
Google Home
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
50 m
- Mounting type
Flush mount
- Width
42 mm
- Height
37 mm
- Depth
16 mm
- Weight
18 g
n.rel.
- Dim
(W x H x D) 42 x 37 x 16 mm
- Hub
Not required
Documents & Downloads
Datasheet
Datasheet 2998532 Shelly Shelly Plus 0-10V Dimmer Dimmer actuator Bluetooth, Wi-Fi
User & Safety Instructions
User & Safety Instructions 2998532 Shelly Shelly Plus 0-10V Dimmer Dimmer actuator Bluetooth, Wi-Fi
Description
The Shelly Plus 0-10V dimmer was developed for controlling 0 - 10 V dimmers and allows precise dimming with remote control. It can be retrofitted and used with any normal switch you have at home.
No hub required! Simple control via the Shelly Smart Control APP, various platforms and protocols as well as via voice guidance. You can use it with Alexa, Home Assistant or your preferred automation platform.
Supports signal control for several types of drivers (lighting, motors, valves, etc.; depending on driver).
Single/two button dimming mode (use with physical switches).
WLAN-ranges extender & BLE-gateway.
Extremely fast processor for immediate response - ESP32.
Supports scripting, web-hooks, MQTT, WebSocket, HTTPS, UDP, TLS, and own certificates.
This text is machine translated.
No hub required! Simple control via the Shelly Smart Control APP, various platforms and protocols as well as via voice guidance. You can use it with Alexa, Home Assistant or your preferred automation platform.
Supports signal control for several types of drivers (lighting, motors, valves, etc.; depending on driver).
Single/two button dimming mode (use with physical switches).
WLAN-ranges extender & BLE-gateway.
Extremely fast processor for immediate response - ESP32.
Supports scripting, web-hooks, MQTT, WebSocket, HTTPS, UDP, TLS, and own certificates.
This text is machine translated.
System requirements
- Wi-Fi, iOS, Android, HUAWEI, MQTT
