Shelly Shelly Plus 1PM Shelly Actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details

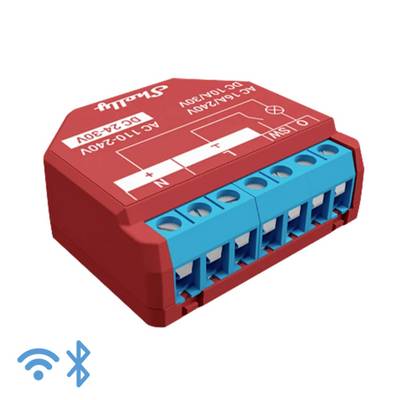

Shelly plus 1PM - Smart switch measuring actuator
- Accurate power measurement with data storage
- Enables exact monitoring of power consumption.
- WLAN operation
- Simple connection with your WLAN network - completely without additional hub.
- Bluetooth
- Easily add devices via Bluetooth using the Shelly Smart control APP.
- Faster Processor
- Provides immediate execution of commands and quick notifications.
- Increased protection
- Provides overheating protection to avoid failures.
- Improved Security
- Supports MQTT and WSS, as well as the management of TLS certificates for a wide range of use cases.
- Optimized API interface
- Provides a variety of cloud connections and local integrations.
- No Hub necessary
- Control your devices directly from your smartphone with the Shelly Smart Control APP - without a hub.
- High compatibility
- Use your preferred home automation platforms and voice wizards.
Technical specifications
- Dry contact: YesMax load 16 A/240 V.Operating temperature 0 °C to 40 °C.Wi-Fi 802.11 b/g/n wireless protocol
- Product type
Actuator
- Series
Shelly
Alexa
Google Home
Manufacturer-specific
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
50 m
- Mounting type
Flush mount
- Factory colour
Red
- Width
36 mm
- Height
41 mm
- Depth
16 mm
- Weight
40 g
n.rel.
- Dim
(W x H x D) 36 x 41 x 16 mm
- Hub
Not required
- Features
Test function
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2522350 Shelly Shelly Plus 1PM Shelly Actuator Bluetooth, Wi-Fi
Description
Monitor power consumption
The Shelly PLUS 1PM is equipped with a precise power meter that allows you to monitor power consumption. Free data storage helps you to perform a detailed analysis.
Timed heating
Program the Shelly Plus 1PM to switch on your heaters one hour before you return home. Monitor the energy consumption remotely to ensure that your heaters work efficiently.
Automation of household appliances
Track the power consumption of your devices exactly and control them comfortably from everywhere on or off.
This text is machine translated.
The Shelly PLUS 1PM is equipped with a precise power meter that allows you to monitor power consumption. Free data storage helps you to perform a detailed analysis.
Timed heating
Program the Shelly Plus 1PM to switch on your heaters one hour before you return home. Monitor the energy consumption remotely to ensure that your heaters work efficiently.
Automation of household appliances
Track the power consumption of your devices exactly and control them comfortably from everywhere on or off.
This text is machine translated.
Features
- Low-voltage supportESP32 processorMQTT and WSS supportImproved API interfaceAmperage readingsTemperature measurement.
Scope of delivery

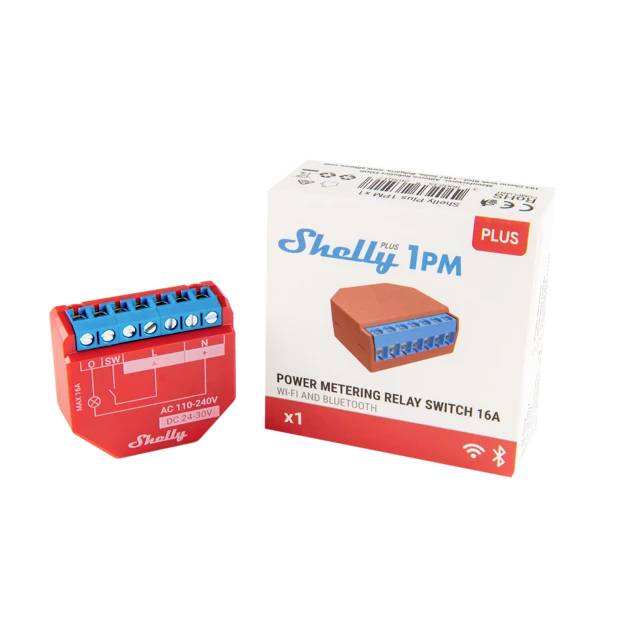

- Shelly plus 1PM
Hints
Installation work must be carried out by a specialist.
System requirements
- Android, IOS, Windows, MAC OS
