Shuttle Industrial PC BPCAL03-i5 Intel® Core™ i5 i5-1235U 4.4 GHz 8 GB RAM 250 GB SSD Intel Iris XE BPCAL03-i5
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,536.97 / piece)
€ 1,536.97
plus VAT.

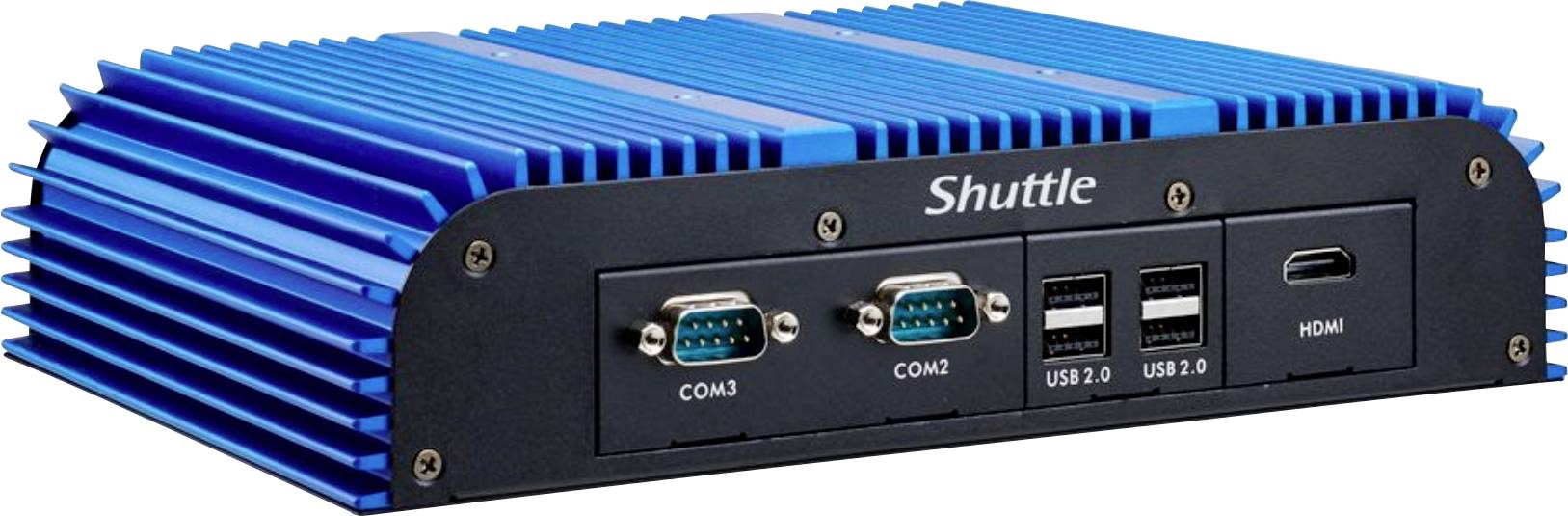

Shuttle BPCAL03-i5 Industrial PC
Highlights & Details
- Intel® Core™ i5 i5-1235U 12th Gen (Alder Lake) 10 core(s) / max. 4.4 GHz
- RAM: 8 GB DDR5 RAM
- 250 GB SSD
- Intel Iris XE
Technical specifications
- Product type
Industrial PC
- based on the following CTO model
BPCAL02
- CPU series
Intel® Core™ i5
- CPU
Intel® Core™ i5 i5-1235U
- Processor/type
i5-1235U
- Processor generation
12th Gen (Alder Lake)
- Processor cores (No.)
10 x
- CPU speed
1.7 GHz
- CPU turbo clock speed (max.)
4.4 GHz
- No. of processor E cores
8
- CPU cache
10 MB
8 GB
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
64 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Onboard graphics card (version)
Iris XE
- Dedicated graphics card
No
- SSD size (total)
250 GB
- SSD 1 type
SSD
- SSD
250 GB
- SSD connection
M.2 PCIe NVMe 4.0 x4
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Drive
w/o hard drive
- Keyboard layout
Keyboard not included

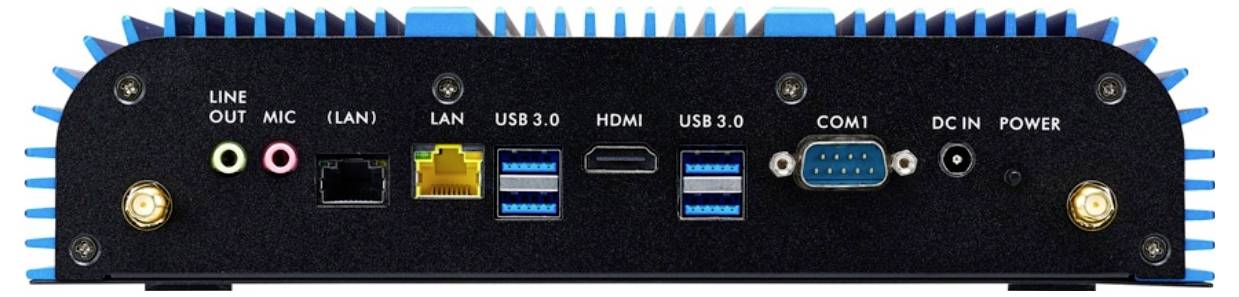

- No. of Gigabit LANs
2 x
- No. of HDMI ports
1 x
- No. of serial ports
2 x
- No of. USB type A 3.1 /3.2 2nd gen
4 x
- Factory colour
Black
- Width
245 mm
- Height
57 mm
- Depth
169 mm
- Weight
2800 g
- PSU power
90 W
- Features
Fanless
Passive cooling
Documents & Downloads
Datasheet
Datasheet 3742152 Shuttle Industrial PC BPCAL03-i5 Intel® Core™ i5 i5-1235U 4.4 GHz 8 GB RAM 250 GB SSD Intel Iris XE BPCAL03-i5
User & Safety Instructions
User & Safety Instructions 3742152 Shuttle Industrial PC BPCAL03-i5 Intel® Core™ i5 i5-1235U 4.4 GHz 8 GB RAM 250 GB SSD Intel Iris XE BPCAL03-i5
Description
Shuttle BPCAL02 series – The fanless industrial PC for demanding 24/7 applications
The industrial PCs of the Shuttle BPCAL02 series were developed for maximum reliability, long service life and continuous operation. Thanks to its completely fan-less design, they work absolutely quietly and are at the same time optimally protected against dust and mechanical loads – Ideal for industrial environments, digital signage, automation, edge computing and many other application areas.
Robust construction for everyday industrial use
• Durable, warp-resistant casing made from aluminum and steel
• Passive cooling system with specially developed cooling fins for efficient heat dissipation
• Safe to operate in extended temperature range up to 60 °C.
• Protection class IP30 for use in controlled industrial environments
Flexible mounting – maximum freedom from integration
The BPCAL02 series can be easily integrated into existing systems:
• VESA mounting
• EAR mount
• DIN rail
Thus, the system is suitable both for control cabinets and wall or device installations.
Modern software and security standards
• Supports Windows 10/11 and Linux (64 bit)
• Hardware TPM 2.0 (Infineon SLB9670VQ2) for enhanced system security and encrypted applications
Designed for continuous operation
The combination of fan-less design, high-quality material selection and efficient heat management makes the Shuttle BPCAL02 series a reliable platform for 24/7 operation – even under demanding conditions.
This text is machine translated.
The industrial PCs of the Shuttle BPCAL02 series were developed for maximum reliability, long service life and continuous operation. Thanks to its completely fan-less design, they work absolutely quietly and are at the same time optimally protected against dust and mechanical loads – Ideal for industrial environments, digital signage, automation, edge computing and many other application areas.
Robust construction for everyday industrial use
• Durable, warp-resistant casing made from aluminum and steel
• Passive cooling system with specially developed cooling fins for efficient heat dissipation
• Safe to operate in extended temperature range up to 60 °C.
• Protection class IP30 for use in controlled industrial environments
Flexible mounting – maximum freedom from integration
The BPCAL02 series can be easily integrated into existing systems:
• VESA mounting
• EAR mount
• DIN rail
Thus, the system is suitable both for control cabinets and wall or device installations.
Modern software and security standards
• Supports Windows 10/11 and Linux (64 bit)
• Hardware TPM 2.0 (Infineon SLB9670VQ2) for enhanced system security and encrypted applications
Designed for continuous operation
The combination of fan-less design, high-quality material selection and efficient heat management makes the Shuttle BPCAL02 series a reliable platform for 24/7 operation – even under demanding conditions.
This text is machine translated.
Scope of delivery
- PC System
