Name: Siemens 3NW7132 3NW7132 Torpedo fuse holder incl. indicator 50 A 690 V AC 1 pc(s) Piece
Brand: Siemens
SKU: 1736200
Availability: BackOrder

A three-pole circuit breaker, grey, side view. Used in electrical distribution boards for overcurrent protection.

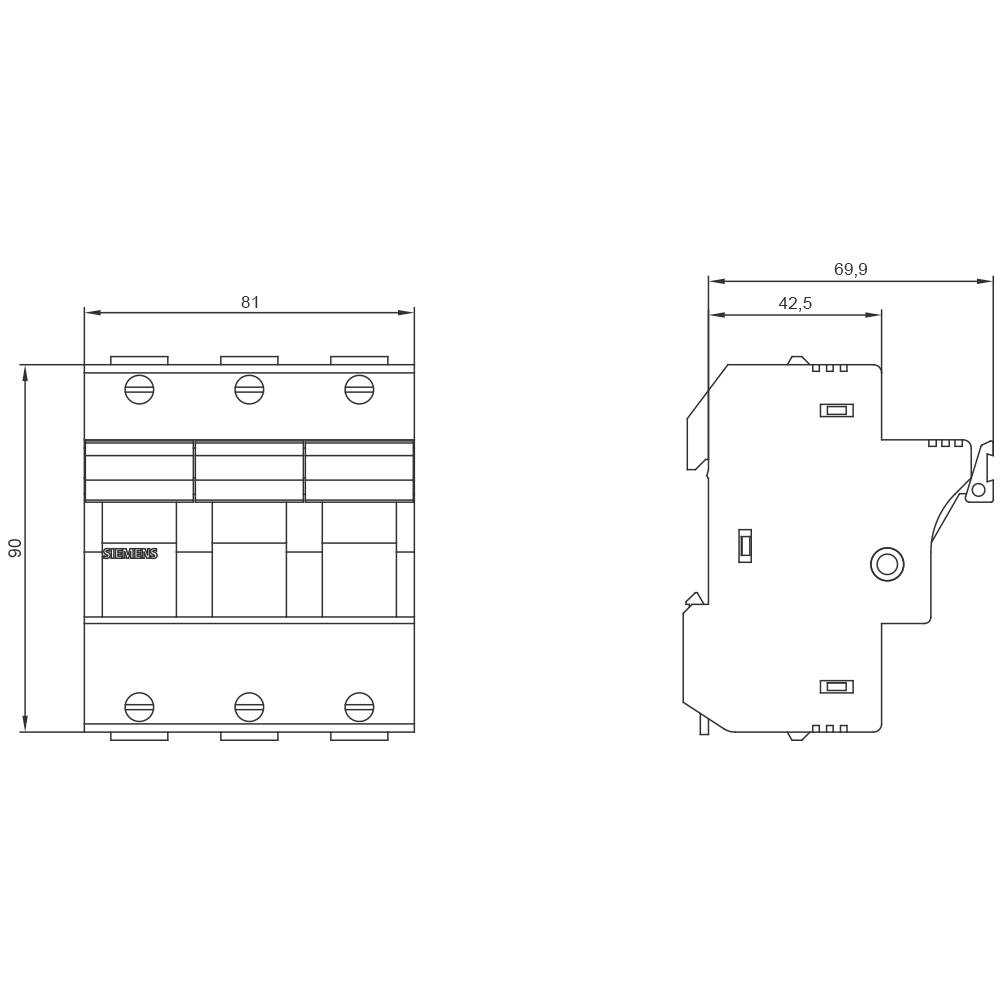

Drawing of an electrical switch with dimensions: 81 mm width, 90 mm height, 69.9 mm depth. Side and front view.

1/2

Image similar

Packaging type

Piece

Product type

Torpedo fuse holder

Nominal voltage

690 V AC

Nominal current - rounded value

50 A

Mounting type

DIN rail

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of pins: 3
Size of the fuse link: 14 x 51 mm
Cutout depth: 70 mm
Number of broad division units: 4.5

Packaging type: Piece

Product type: Torpedo fuse holder

Features: incl. indicator

Nominal voltage: 690 V AC

Nominal current: 50 A

Nominal current - rounded value: 50 A

Mounting type: DIN rail

: IP20

Type: LED indicator

Weight: 327 g

Length: 70 mm

Width: 81 mm

Height: 90 mm

Dimensions: 70 mm

Content: 1 pc(s)

Dim: (L x W x H) 70 x 81 x 90 mm

RoHS-compliant: Yes

Type: 3NW7132

: 690 V

: DIN rail

: FALSE

: 70 mm

: 3

: 4.5

: IP20

: FALSE

: TRUE

: 14x51 mm

UKCA: yes
