Name: Siemens 3NW7232 3NW7232 Torpedo fuse holder incl. status indicator 100 A 690 V AC 1 pc(s) Piece
Brand: Siemens
SKU: 1736275
Availability: BackOrder

A three-pole load disconnector from Siemens, type 3NP1, rated at 22 A, 690 V AC. Used for safe isolation of electrical circuits.

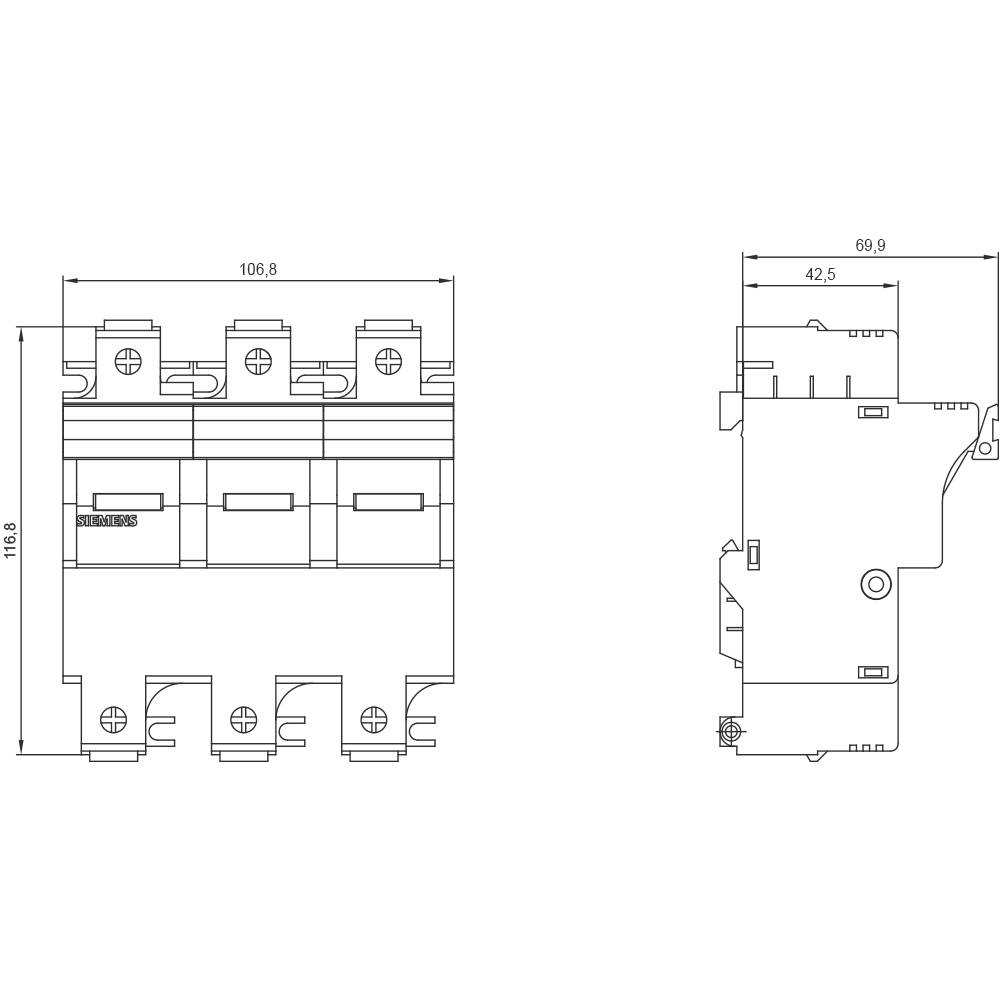

'Technical drawing of a three-pole circuit breaker' with dimensions in millimetres, shown from the front and side views.

1/2

Image similar

Packaging type

Piece

Product type

Torpedo fuse holder

Nominal voltage

690 V AC

Nominal current - rounded value

100 A

Mounting type

DIN rail

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of pins: 3
Size of the fuse link: 22 x 58 mm
Cutout depth: 70 mm
Number of broad division units: 6

Packaging type: Piece

Product type: Torpedo fuse holder

Features: incl. status indicator

Nominal voltage: 690 V AC

Nominal current: 100 A

Nominal current - rounded value: 100 A

Mounting type: DIN rail

: IP20

Number of fuses: 3

Type: LED indicator

Weight: 495 g

Length: 70 mm

Width: 108 mm

Height: 117 mm

Dimensions: 22x58 mm mm

Content: 1 pc(s)

Dim: (L x W x H) 70 x 108 x 117 mm

RoHS-compliant: Yes

Type: 3NW7232

: 690 V

: DIN rail

: FALSE

: 70 mm

: 3

: 6

: IP20

: FALSE

: TRUE

: 22x58 mm

UKCA: yes
