Name: Siemens 3RA2712-1AA00 Function module Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1698911
Availability: BackOrder

'Siemens SIRIUS 24V DC 3RA2712 Motor Protection Relay' in Black and Blue with Connections at the Bottom.

An open electrical cabinet with multiple recessed electrical components and cable harnesses.

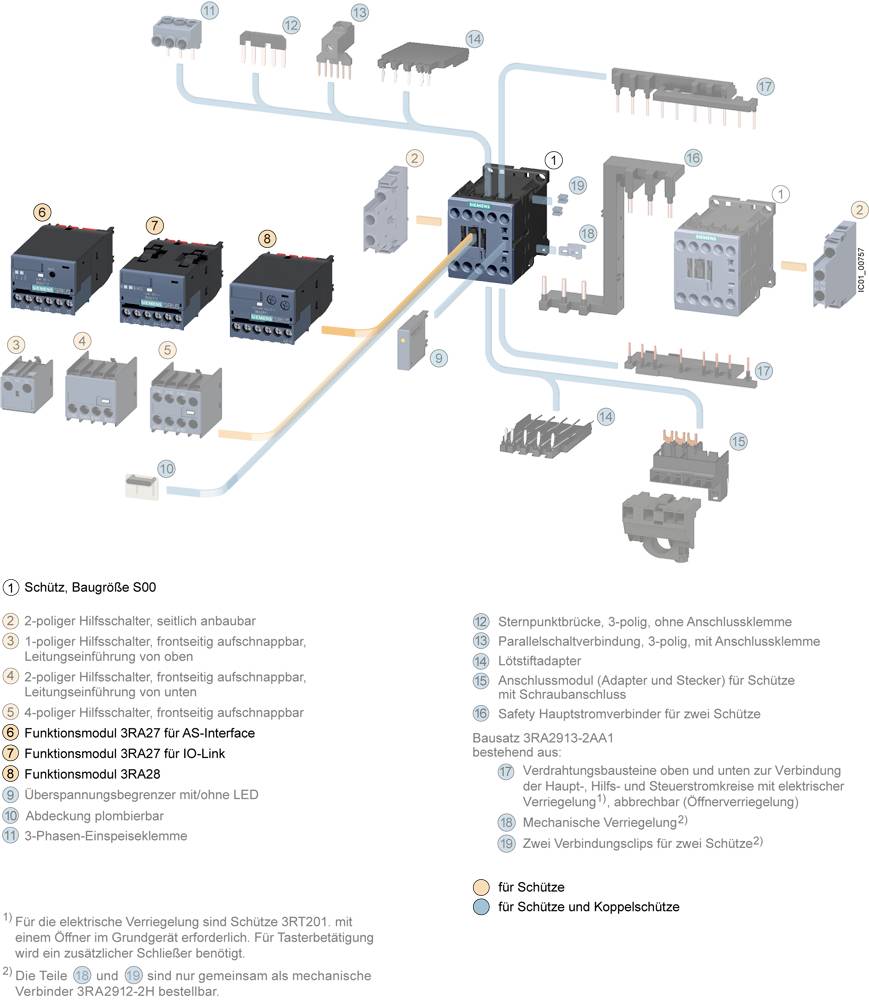

Schematic representation of the components for circuit breaker and coupling relay, including functional modules, wiring and connections.

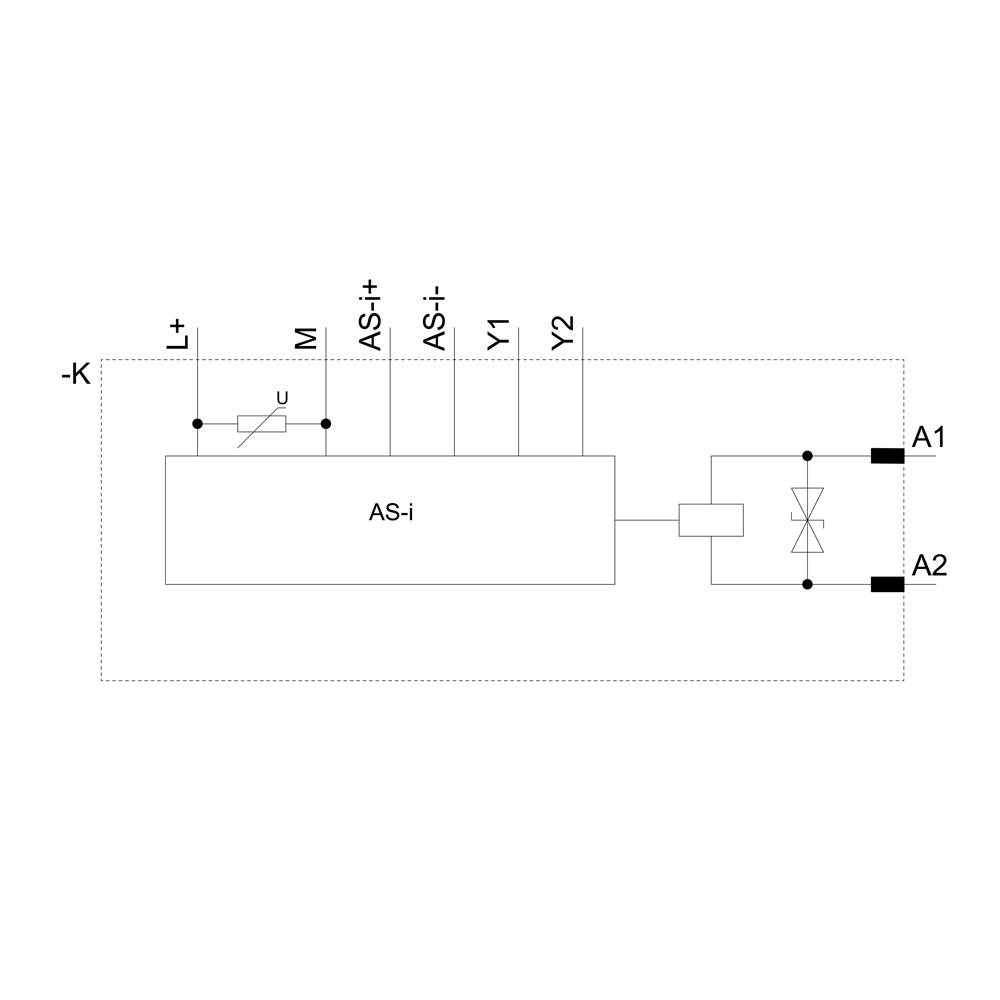

Circuit diagram shows AS-i interface with connections M, AS-i+, AS-i−, Y1, Y2; connected to two terminals A1, A2 and a switch K.

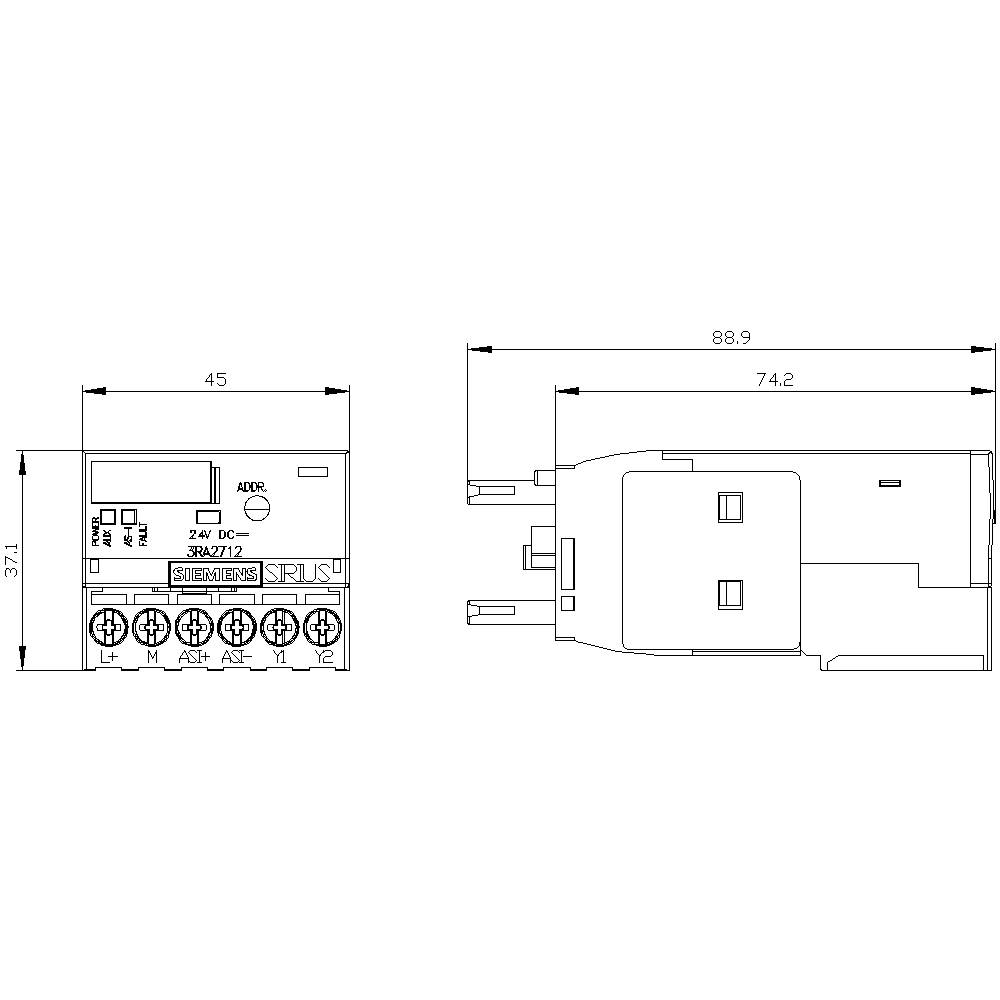

Technical drawing of a relay module with dimensions: width 45 mm, height 37.1 mm, depth 88.9 mm. Shows connections and side view.

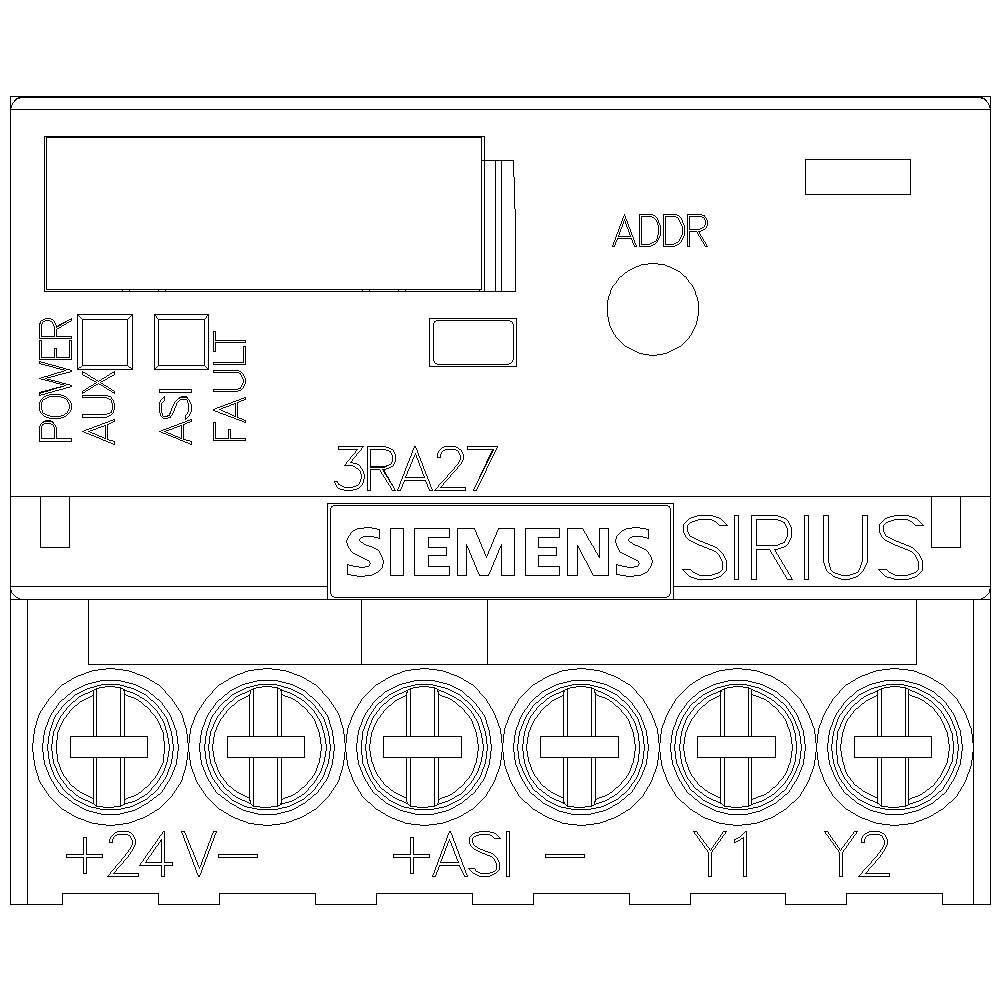

'Drawing of a Siemens Sirius module with connections and labelling: +24V, +ASI, Y1, Y2, POWER, AUX, ASI, FAULT, ADDR, 3RA27.'

1/6

Product type

Function module

Connection

Screw terminal

Packaging type

Piece

Type

3RA2712-1AA00

Compatible with

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 26 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BASIC SWITCH FOR

Our service for you

Technical specifications

Type of voltage: DC

Packaging type: Piece

Product type: Function module

Type: 3RA2712-1AA00

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Push-fit

Connection: Screw terminal

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 37 mm

Depth: 75 mm

Dim: (W x H x D) 45 x 37 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: TRUE

UKCA: not relevant
