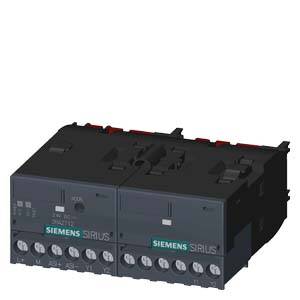

Name: Siemens 3RA2712-1BA00 Function module Compatible with (relay brand): Siemens Single 1 pc(s)
Brand: Siemens
SKU: 1745898
Availability: BackOrder

An open electrical cabinet with various electrical components and wiring, arranged in multiple rows.

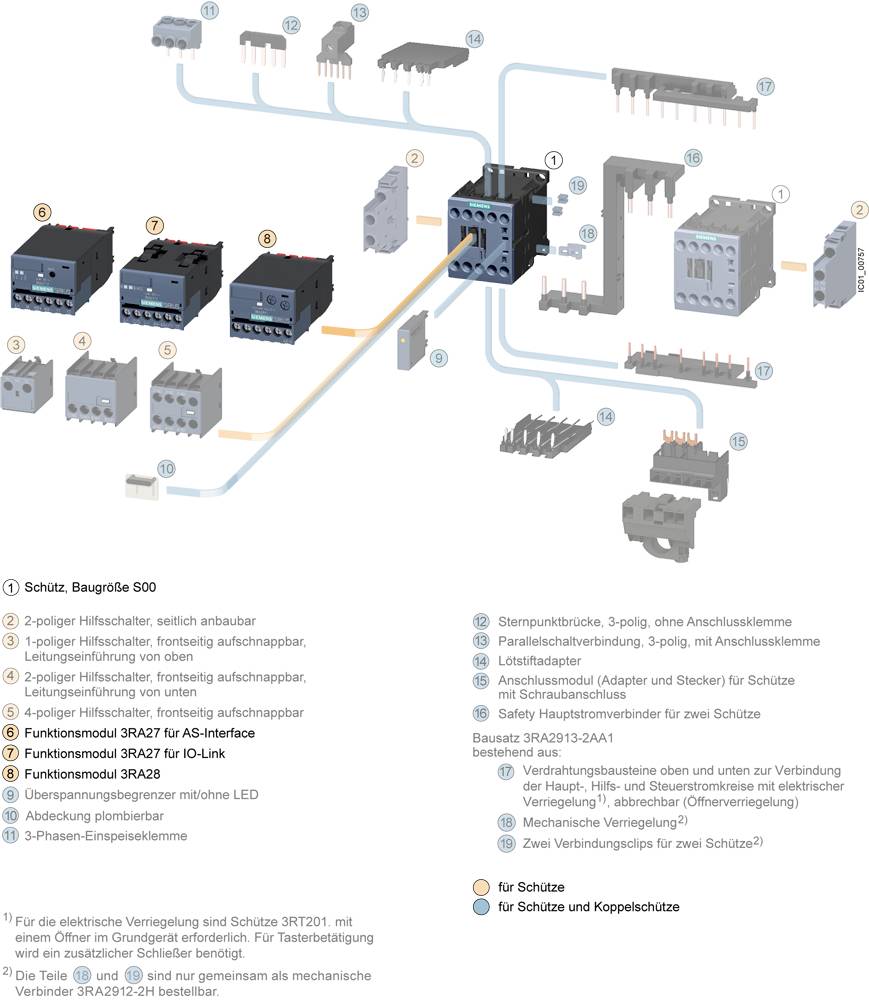

'Diagram describes potential-free contacts and connection options for contactors in electrical installations, with numbered interconnection points.'

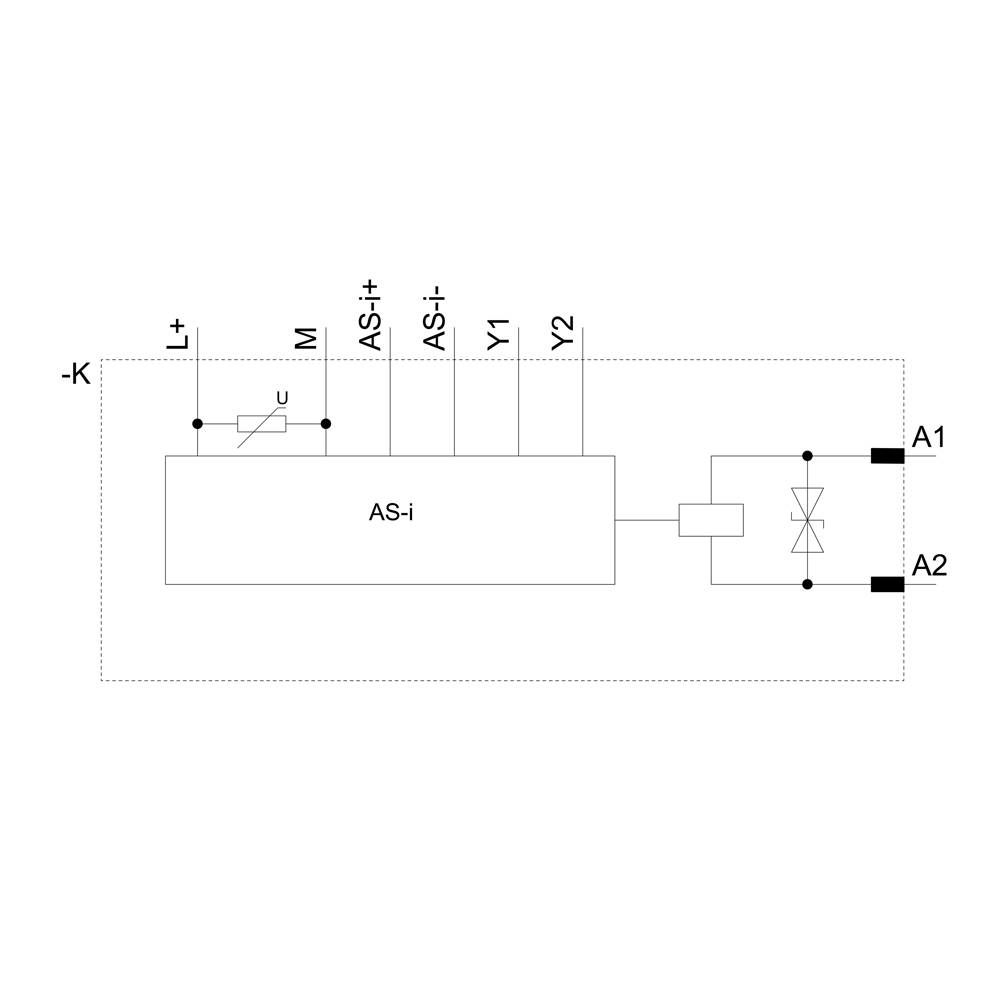

Circuit diagram shows AS-i module with connections: '+' and '-' for current, 'AS-i +', 'AS-i -', 'Y1', 'Y2', connected to lamp symbol via 'A1', 'A2'.

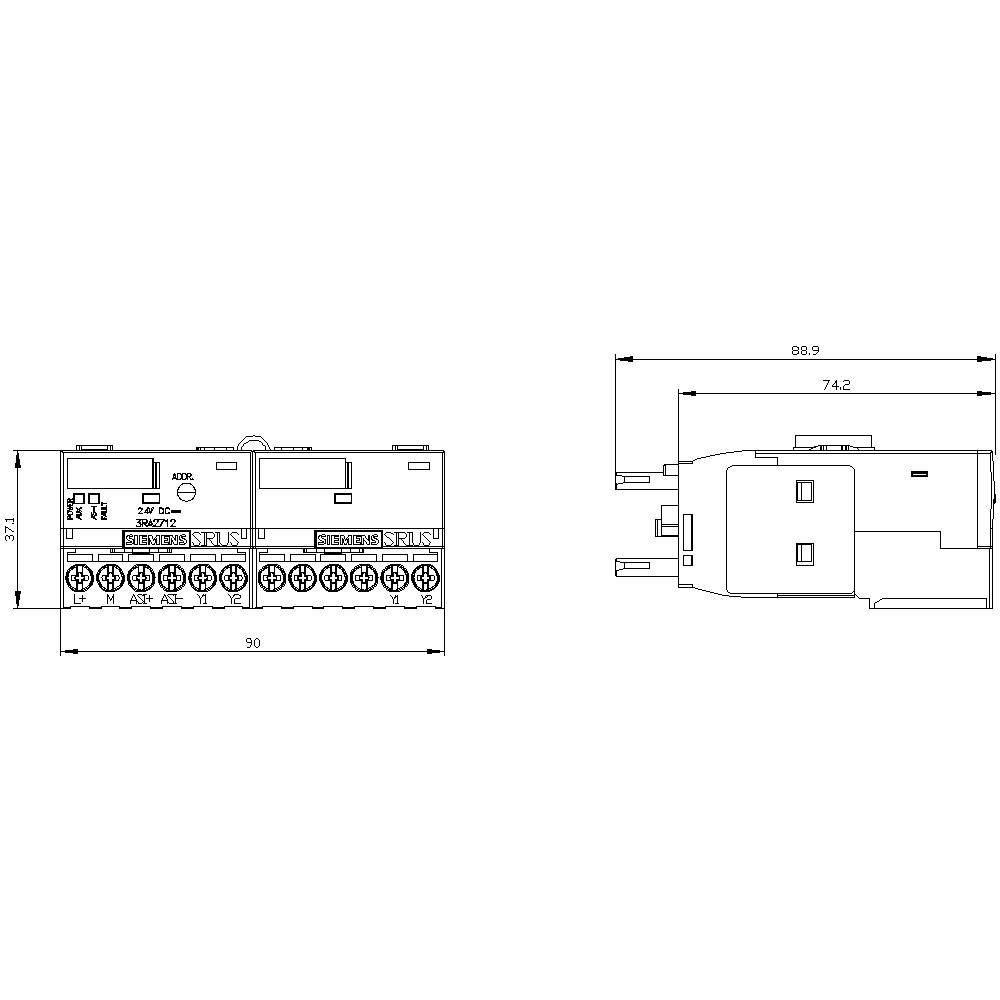

Technical drawing of an electrical switch with side view and front view. Dimensions: 97.2 mm high, 88.9 mm deep and 90 mm wide.

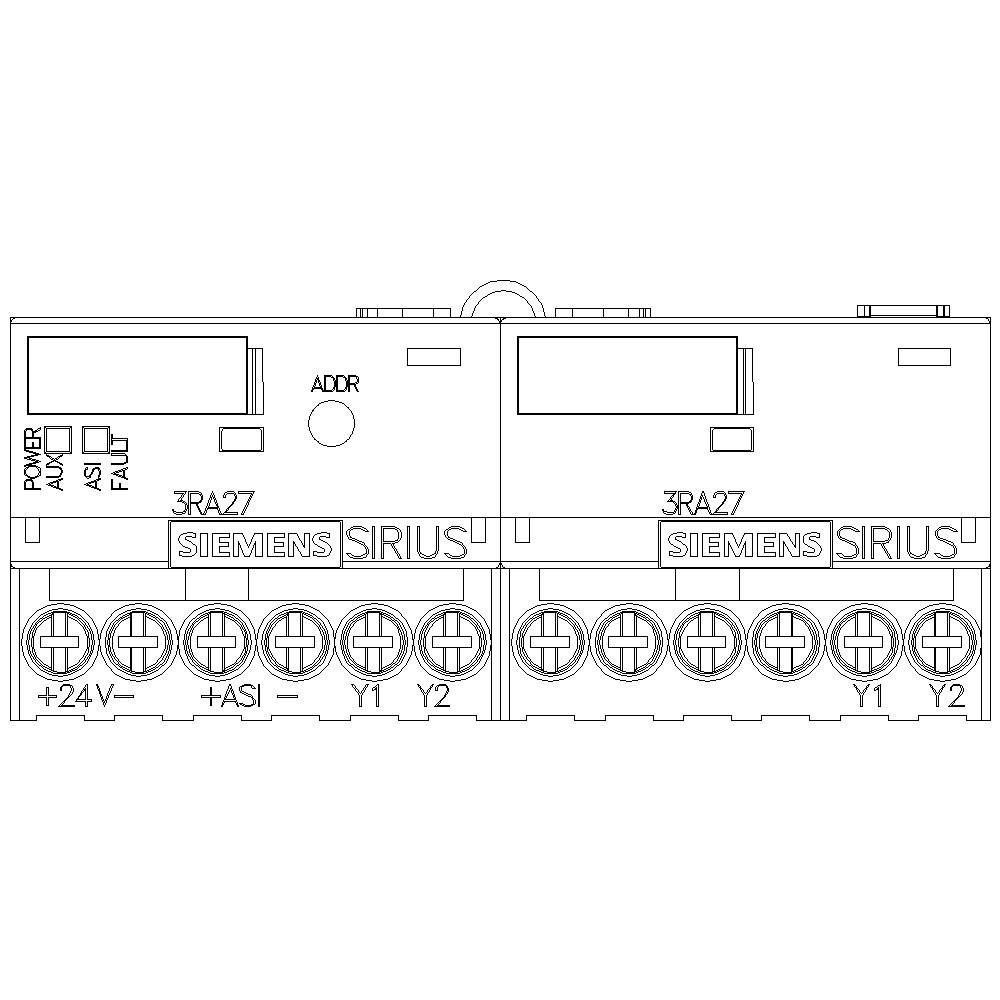

Two electronically adjacent modules, marked as '3RA27'. Connections at the bottom are labelled '+24V', '+ASI', 'Y1', 'Y2'. At the top: 'ADDR', 'POWER', 'ASI', 'FAULT'.

1/6

Image similar

Product type

Function module

Connection

Screw terminal

Packaging type

Single

Type

3RA2712-1BA00

Compatible with

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 25 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC

Packaging type: Single

Product type: Function module

Type: 3RA2712-1BA00

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Push-fit

Connection: Screw terminal

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 37 mm

Depth: 75 mm

Dim: (W x H x D) 45 x 37 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes
