Name: Siemens 3RH2422-1AB00 Auxiliary contactor pluggable Compatible with (relay brand): Siemens Single 1 pc(s)
Brand: Siemens
SKU: 1704473
Availability: BackOrder

A picture of two black Siemens contactors from the Sirius series, mounted side by side. They have multiple connection terminals.

An open electrical cabinet with multiple rows of electrical components and cables used for control and distribution purposes.

'Circuit diagram showing various auxiliary contactors, auxiliary interlock switches, and accessories; illustrates connections and potential configurations.'

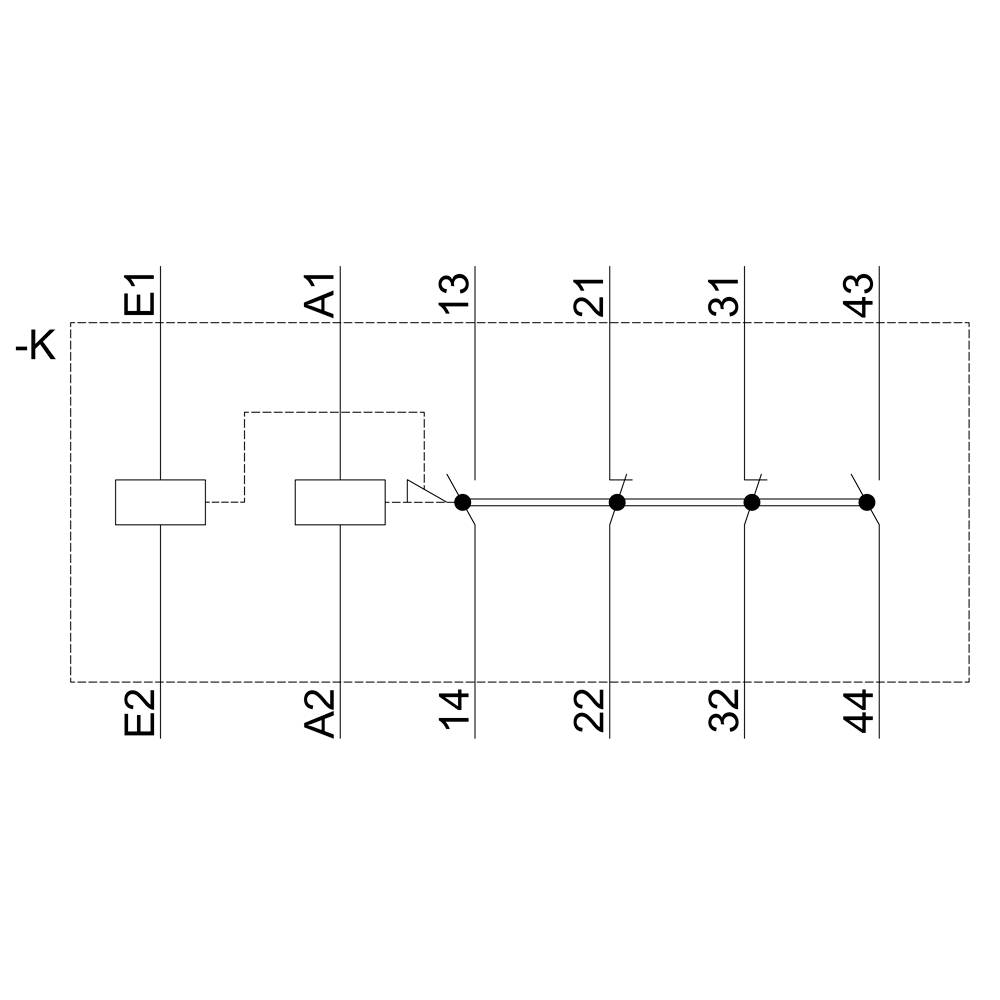

'Protective Circuit: Terminals E1, A1, E2, A2 and contacts 13, 14, 21, 22, 31, 32, 43, 44 connected. Representation of a circuit diagram.'

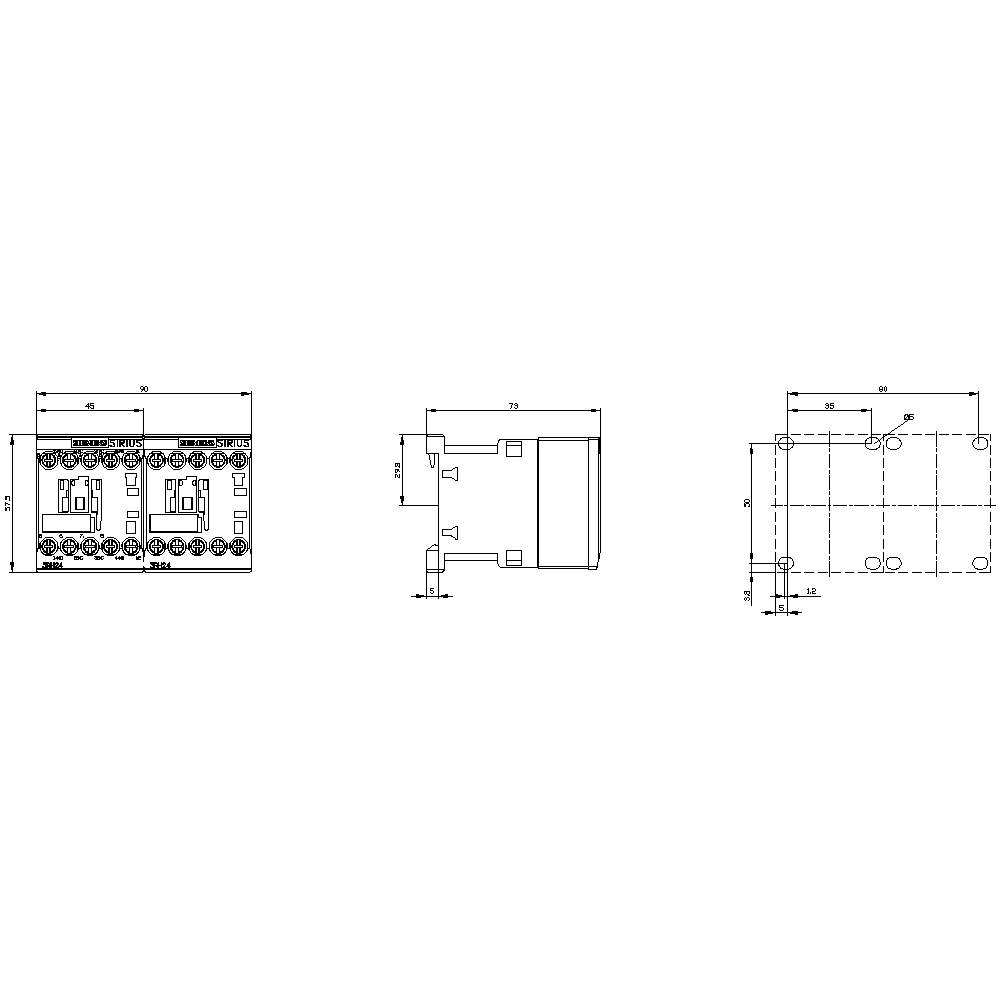

Technical drawing of an electronic component with front, side, and top view. Dimensions and positions are detailed.

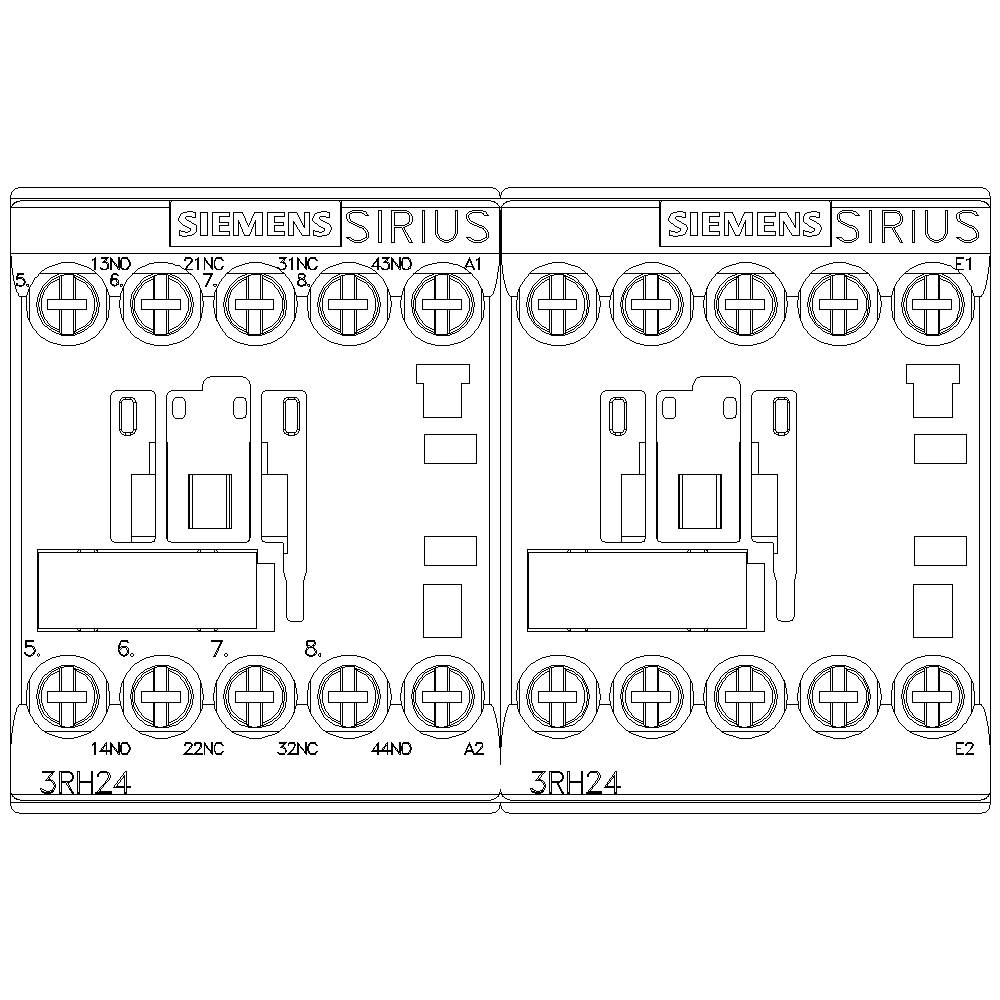

Two technical drawings of Siemens SIRIUS 3RH24 relays, with connections numbered at the top and bottom.

1/6

Image similar

Product type

Auxiliary contactor

No. of pins

4-pin

Connection

Screw terminal

Packaging type

Single

Type

3RH2422-1AB00

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC

Packaging type: Single

Product type: Auxiliary contactor

Type: 3RH2422-1AB00

Type: S00

No. of pins: 4-pin

Auxiliary contact type: 2 makers
2 breakers

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: pluggable

Mounting type: Snap-in
Screw-fit

Connection: Screw terminal

Durability: 5000000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 90 mm

Height: 57.5 mm

Depth: 73 mm

Dim: (W x H x D) 90 x 57.5 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 2

: 2

: 3 A

: Screw connection

: AC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Product type

Packaging type

Siemens 3RH1921-1CD01 Auxiliary switch module 1 breaker Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698904

Dispatches on Tue 20 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Siemens 3RH1921-1DA11 Auxiliary switch module Instant response Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698905

Fast track dispatch on Wed 14 Oct

13 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-1EA11 Auxiliary switch module Instant response pluggable Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698906

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Siemens 3RH1921-1KA02 Auxiliary switch module Instant response 2 breakers + auxiliary contact Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1704506

Dispatches on Tue 20 Oct

Conrad Electronic

Auxiliary switch module

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-1XA22-0MA0 Auxiliary switch module Instant response + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1744067

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Siemens 3RH1921-2DA11 Auxiliary switch module + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1699096

Fast track dispatch on Wed 14 Oct

11 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-2DE11 Auxiliary switch + enclosure Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1744068

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

Auxiliary switch

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens 3RH1921-2EA20 Auxiliary switch module Instant response 2 makers pluggable Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1704507

Dispatches on Tue 20 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Siemens 3RH1921-2EE02 Auxiliary switch 2 breakers Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1744069

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Siemens 3RH1921-2JE11 Auxiliary switch Instant response + auxiliary contact Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1744075

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Documents & Downloads

Datasheet

Datasheet 1704473 Siemens 3RH2422-1AB00 Auxiliary contactor pluggable Compatible with (relay brand): Siemens Single 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1704473 Siemens 3RH2422-1AB00 Auxiliary contactor pluggable Compatible with (relay brand): Siemens Single 1 pc(s)

Description

Contactor relay, latched, 2 NO + 2 NC, 24 V AC, 50 / 60 Hz, Size S00, screw terminal

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.

Description

Contactor relay, latched, 2 NO + 2 NC, 24 V AC, 50 / 60 Hz, Size S00, screw terminal

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
