Name: Siemens 3RM1007-1AA04 3RM10071AA04 Direct motor starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A
Brand: Siemens
SKU: 1419900
Availability: BackOrder

Industrial electronics module for Siemens control systems, Sirius model. Contains status indicators for device, errors and condition.

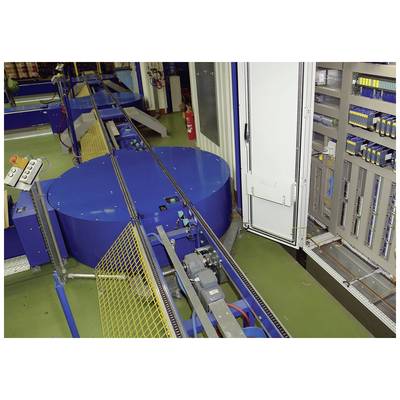

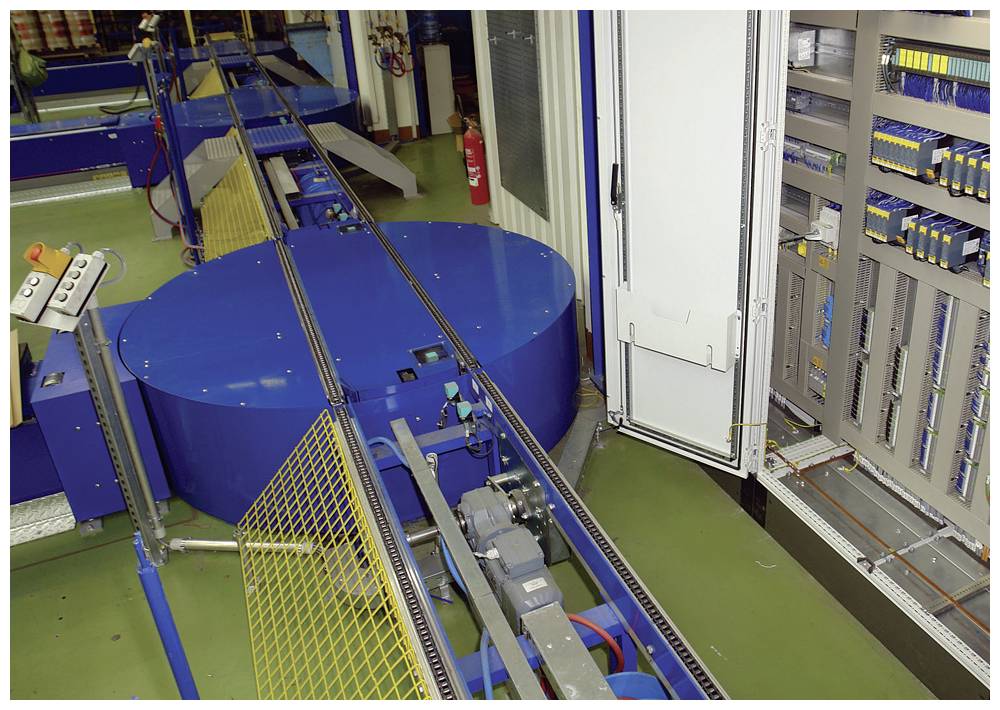

A blue, round factory machine with conveyor belts and a control panel, surrounded by shelves of electrical components in an industrial hall.

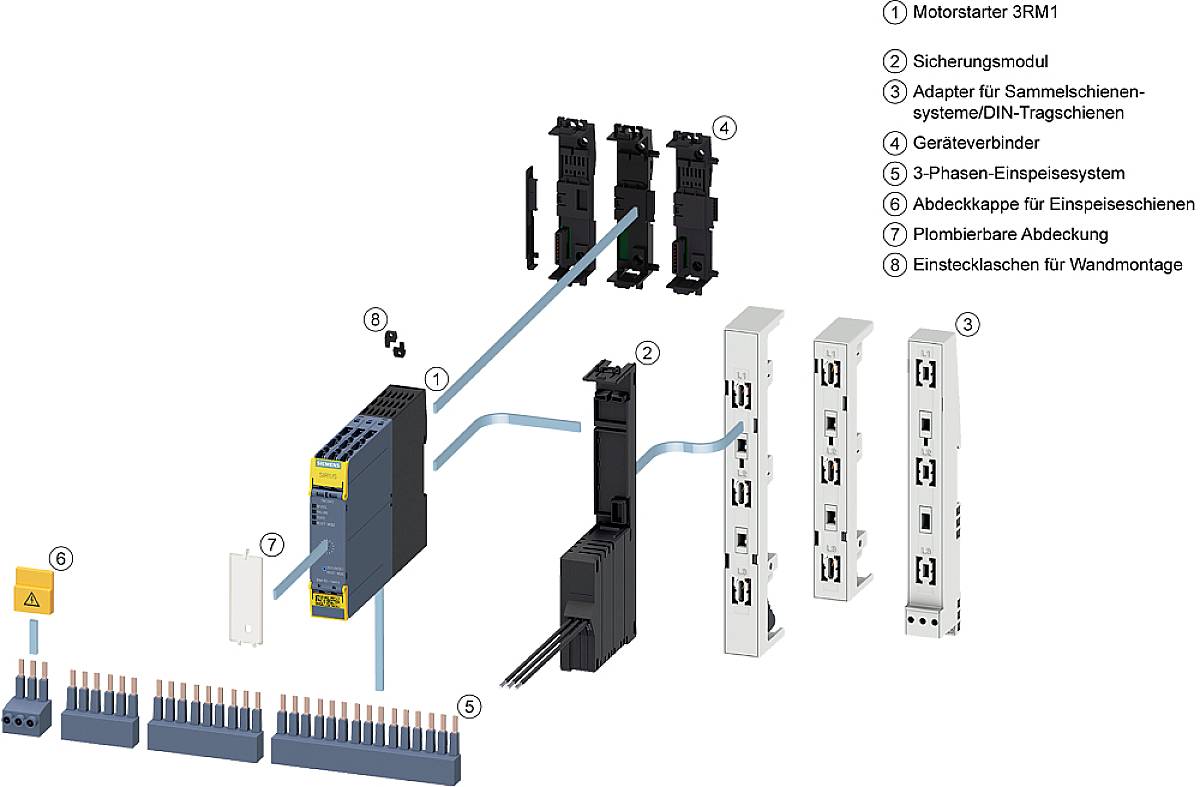

'Illustration of a motor start system. Shows motor starter 3RM1, fuse module, adapter, device connector and power supply system.'

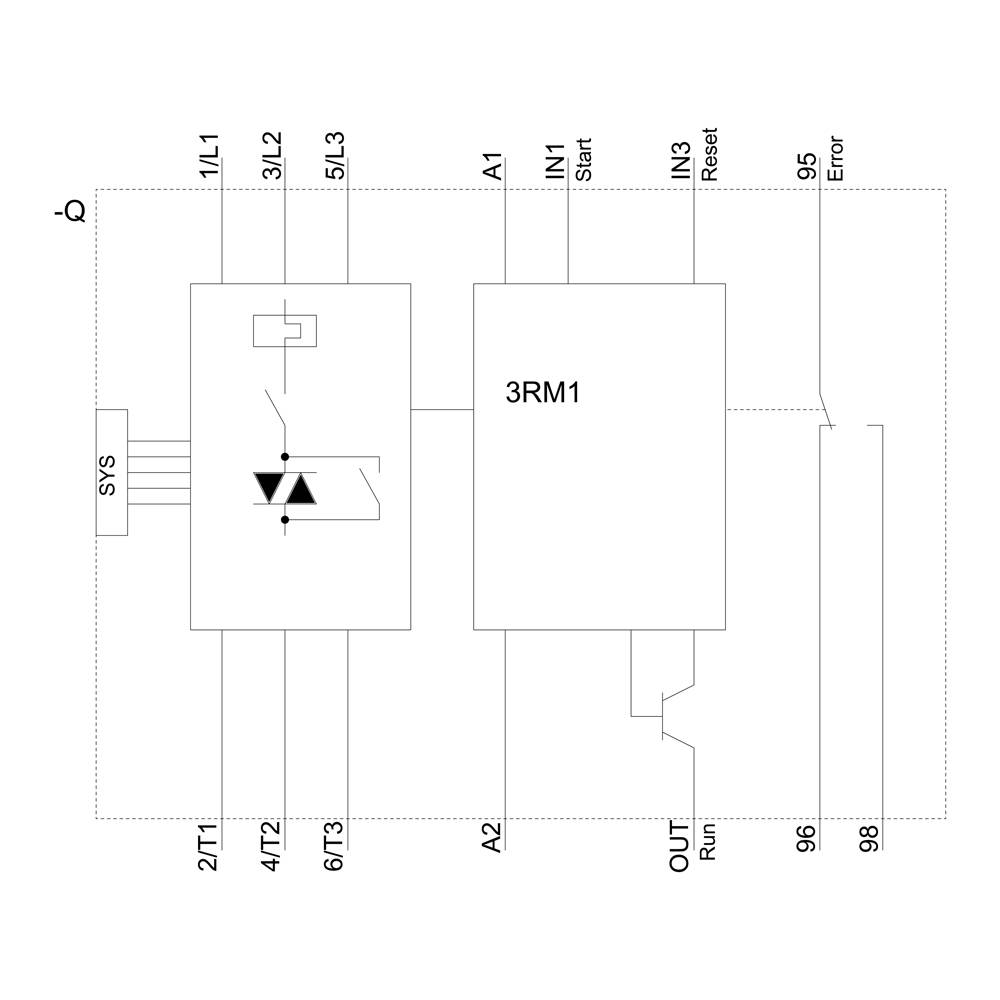

'Circuit diagram of a system with two modules: SYS with connections 1/L1 to 5/L3 and 3RM1 with connections A1, A2, IN1, IN3, OUT.'

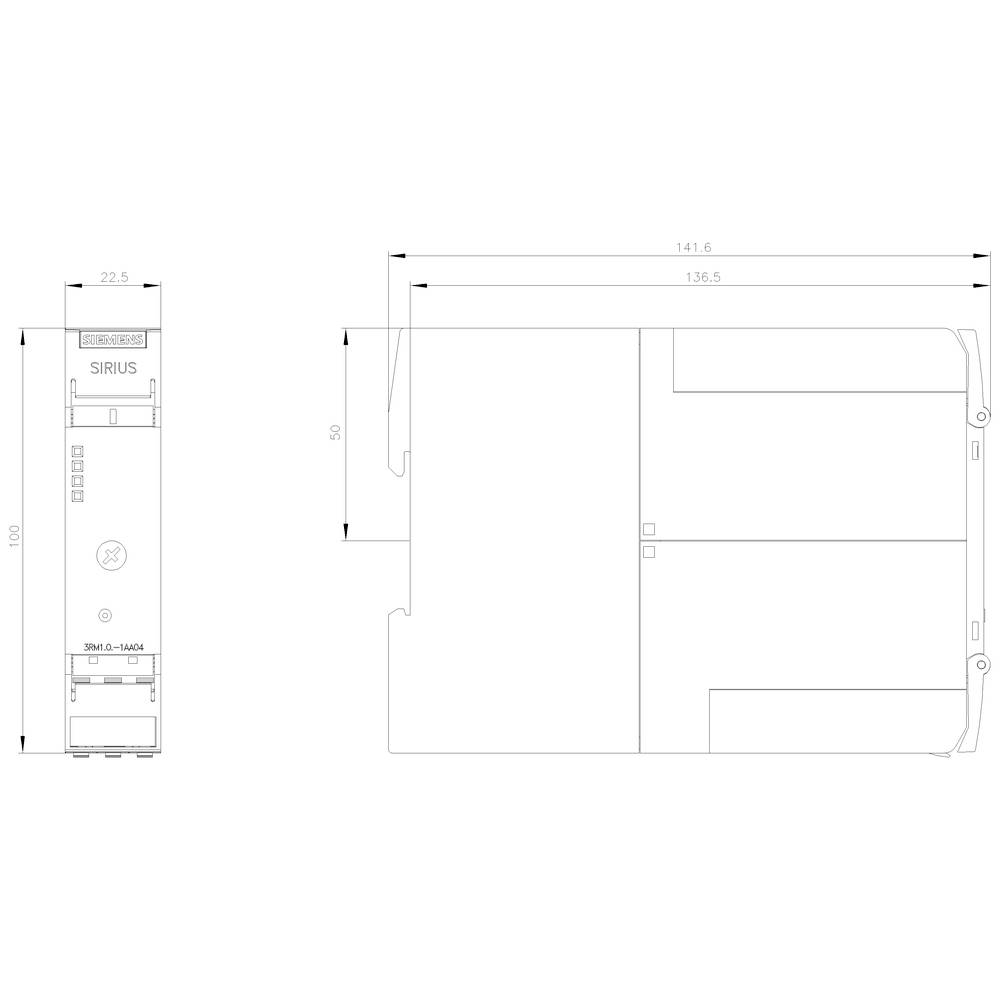

Technical drawing of an electronic device with dimensions: height 100 mm, width 22.5 mm, and depth 136.5 mm.

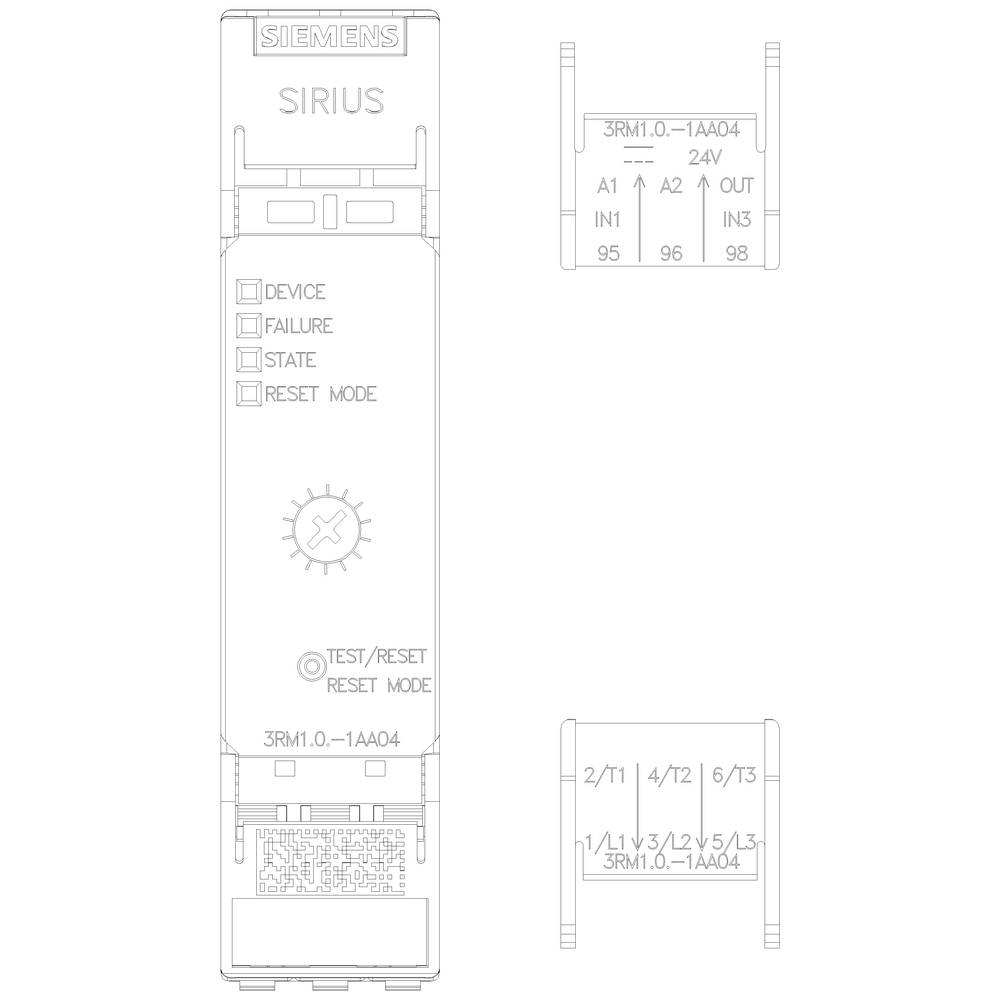

'Technical drawing of a Siemens SIRIUS device. Contains circuit diagram with connections and buttons, as well as details of model 3RM1.0-1AA04.'

1/6

Datasheet (PDF)

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Direct starter, 1.6-7 A, 24 V DC, screw connection

Multi-functionality: direct and reversing starters, overload protection, safety switch-off
Durable and energy-efficient hybrid switching technology
Small Device variance with wide setting range

Technical specifications

Motor voltage: 400 V

Product type: Direct motor starter

Supply current: 7.0 A

Motor power at 400 V: 3.00 kW

Nominal voltage: 24 V DC

Manufacturer part #: 3RM10071AA04

Nominal current: 7.0 A

Nominal current - rounded value: 7 A

Type: 3RM1007-1AA04

Motor power at 230V / 400V: 3.00 kW

Dim: (W x H x D) 22.5 x 100 x 141.6 mm

Connection: Screw terminal

Width: 22.5 mm

Height: 100 mm

Depth: 141.6 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

: 22.5

: 100 mm

: 141.6 mm

: FALSE

: 3 kW

: 0

: 1

: 1

: FALSE

: 7 A

: 4

: 7-7 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10 A

: FALSE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 1.5 kW

: 2.20649625 kW

: 7 A

: 50 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Motor power at 400 V

Product type

Motor power at 230V / 400V

Nominal voltage

Siemens 3RM1007-1AA04 3RM10071AA04 Direct motor starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A

Item no:1419900

Dispatches on Tue 3 Nov

Conrad Electronic

This article

7 A

3.00 kW

Direct motor starter

3.00 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1001-1AA04 3RM10011AA04 Direct motor starter Motor power at 400 V 0.12 kW Motor power at 230 V 1 kW 24 V DC Nominal current 0.5 A

Item no:1419888

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

1 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1001-1AA14 3RM10011AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419889

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

0.12 kW

110 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3RM1001-2AA04 3RM10012AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419890

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

0.12 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Siemens 3RM1001-2AA14 3RM10012AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419891

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

0.12 kW

110 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1001-3AA04 3RM10013AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419892

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

0.12 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Siemens 3RM1001-3AA14 3RM10013AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419893

Dispatches on Tue 3 Nov

Conrad Electronic

500 mA

0.12 kW

Direct motor starter

0.12 kW

110 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1002-1AA04 3RM10021AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419894

Fast track dispatch on Tue 27 Oct

6 Piece(s)Conrad Electronic

2 A

0.75 kW

Direct motor starter

0.75 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3RM1002-1AA14 3RM10021AA14 Direct motor starter Motor power at 400 V 0.75 kW 110 V AC, 230 V AC Nominal current 2.0 A

Item no:1419895

Dispatches on Tue 3 Nov

Conrad Electronic

2 A

0.75 kW

Direct motor starter

0.75 kW

110 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419896

Dispatches on Tue 3 Nov

Conrad Electronic

2 A

0.75 kW

Direct motor starter

0.75 kW

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Documents & Downloads

Datasheet

Datasheet 1419900 Siemens 3RM1007-1AA04 3RM10071AA04 Direct motor starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A

User & Safety Instructions

User & Safety Instructions 1419900 Siemens 3RM1007-1AA04 3RM10071AA04 Direct motor starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A

Description

Direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, SIRIUS 3RM1 direct-on-line starters screw terminals for operational switching of three-phase motors.
Narrow width, multifunctional, with electronic overload protection, long-lasting and energy-efficient hybrid switching technology, low device variance through wide adjustment range, easy mounting through lower wiring expenditure, fast error diagnosis through LED-display, innovative housing concept e.g. with labeled cover flaps and removable connection clamps.
Available as direct or reversing starters with either ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection techniques.
Extensive accessories such as device connectors, fuse module, infeed system or sealable covers round off the system.
Starting in confined spaces - SIRIUS 3RM1 motor starters.

This text is machine translated.
