Name: Siemens 3RM1207-2AA04 3RM12072AA04 Reversing starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A
Brand: Siemens
SKU: 1419938
Availability: BackOrder

'Siemens SIRIUS Safety Relay', blue, black housing, with labels: 'DEVICE', 'FAILURE', 'STATE', 'RESET MODE'.

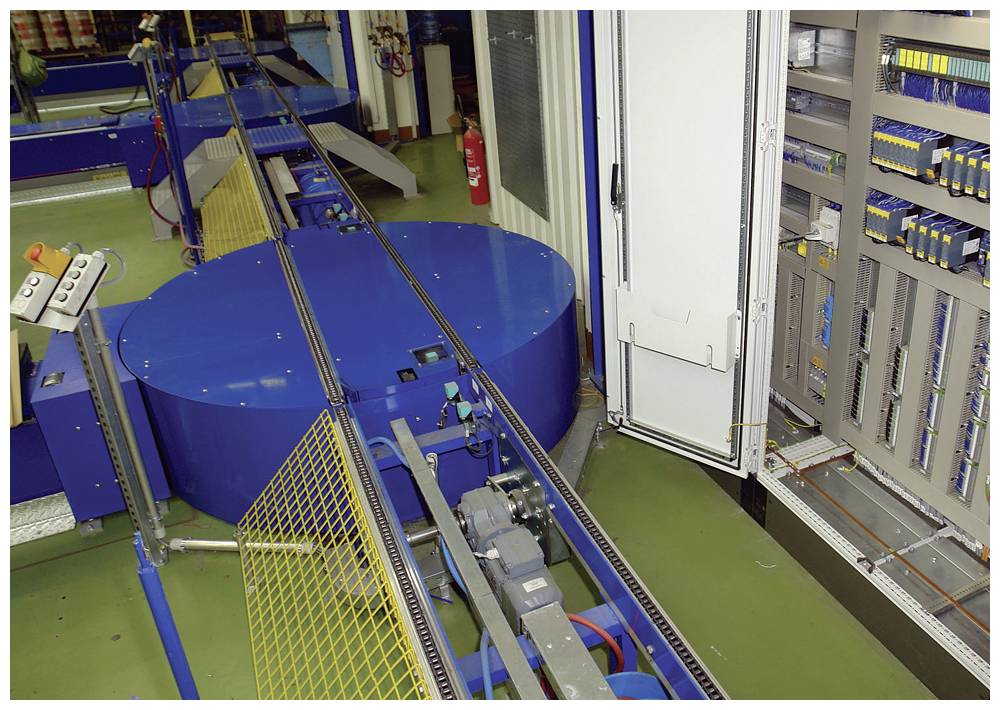

A blue conveyor belt in a factory hall, transporting material. Electrical cabinets with wiring are visible on the right.

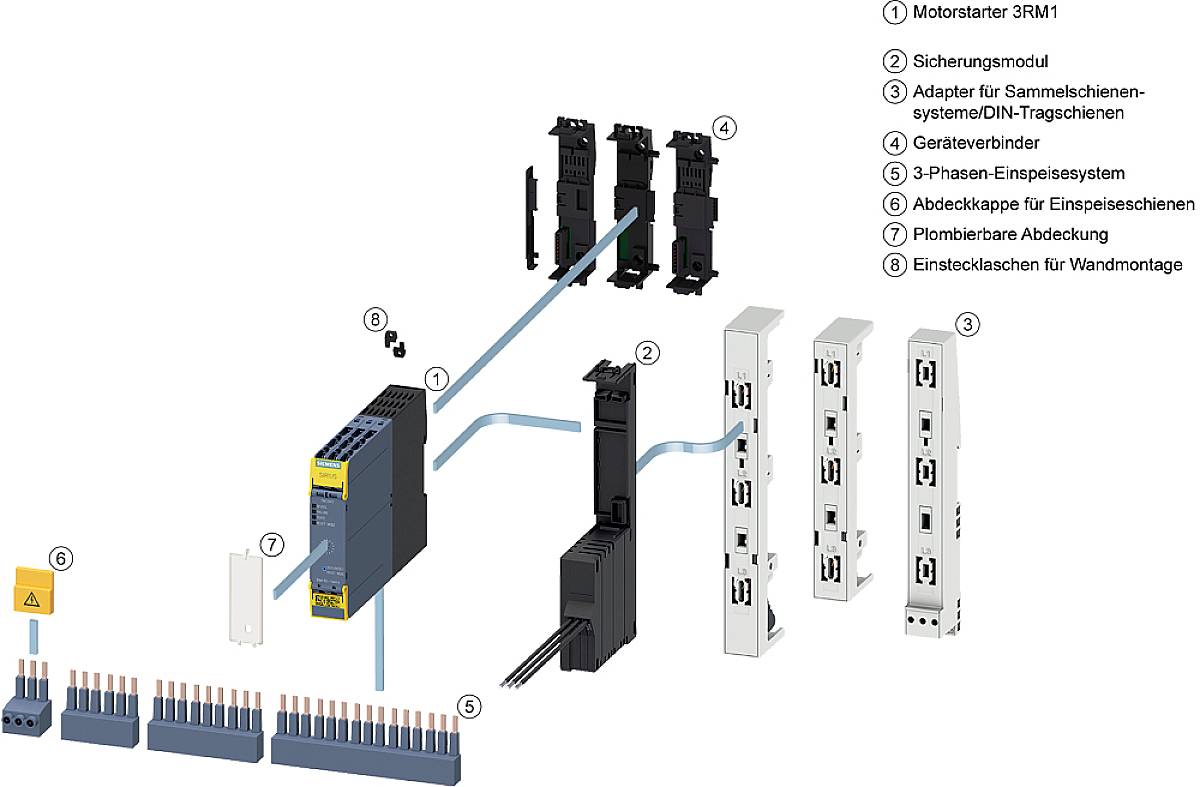

'Diagram of a motor starter system with components: Motor starter 3RM1, fuse module, mounting rail adapter, device connector.'

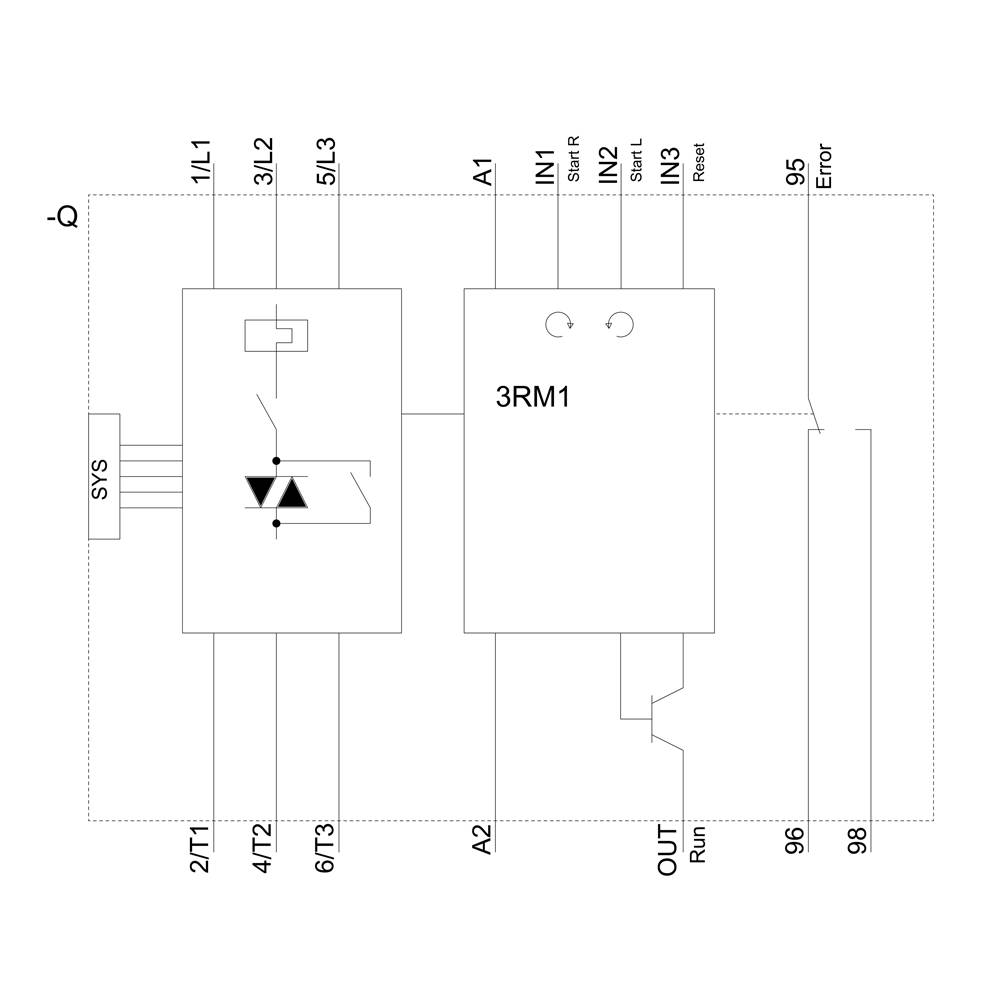

'Circuit diagram of an electrical control system with labels: SYS, 3RM1, IN1, IN2, OUT, Run, Reset, Error.'

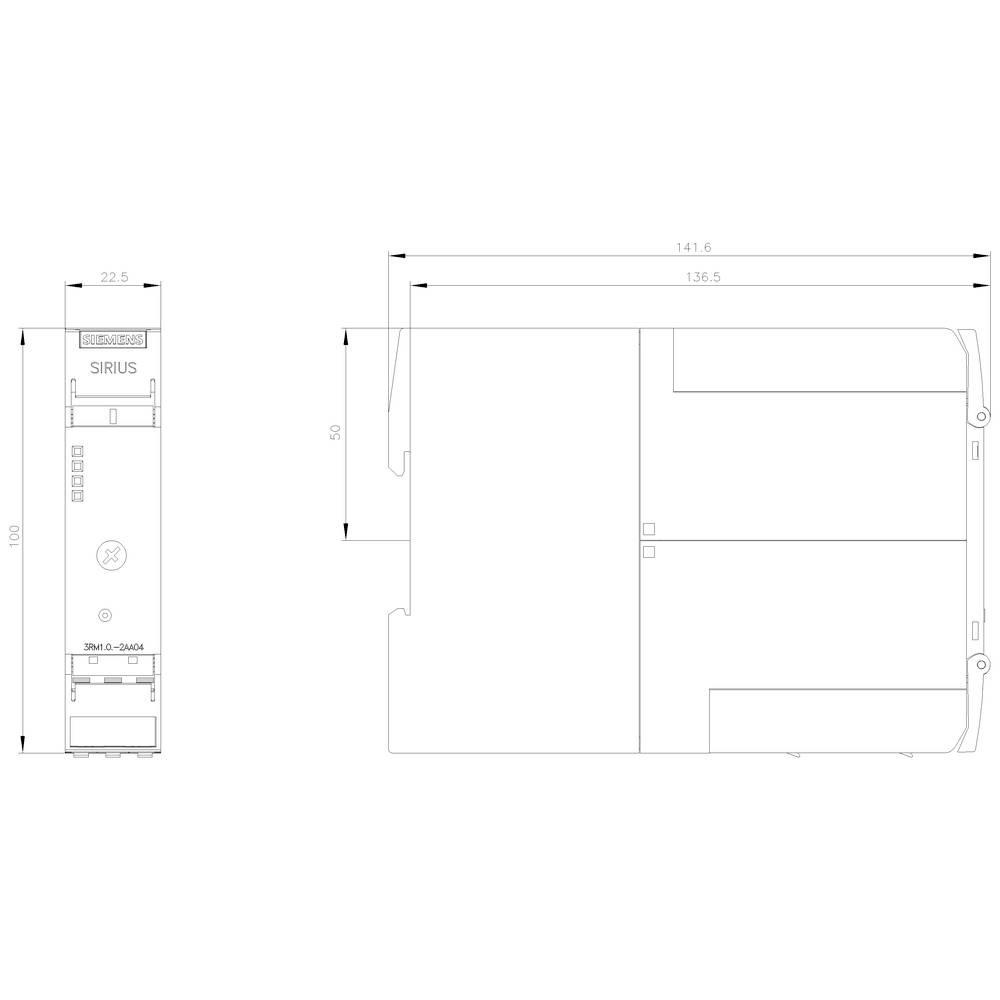

Technical drawing of an electrical device with dimensions: Width 22.5 mm, Height 100 mm, Depth 141.6 mm. Product name: SIRIUS.

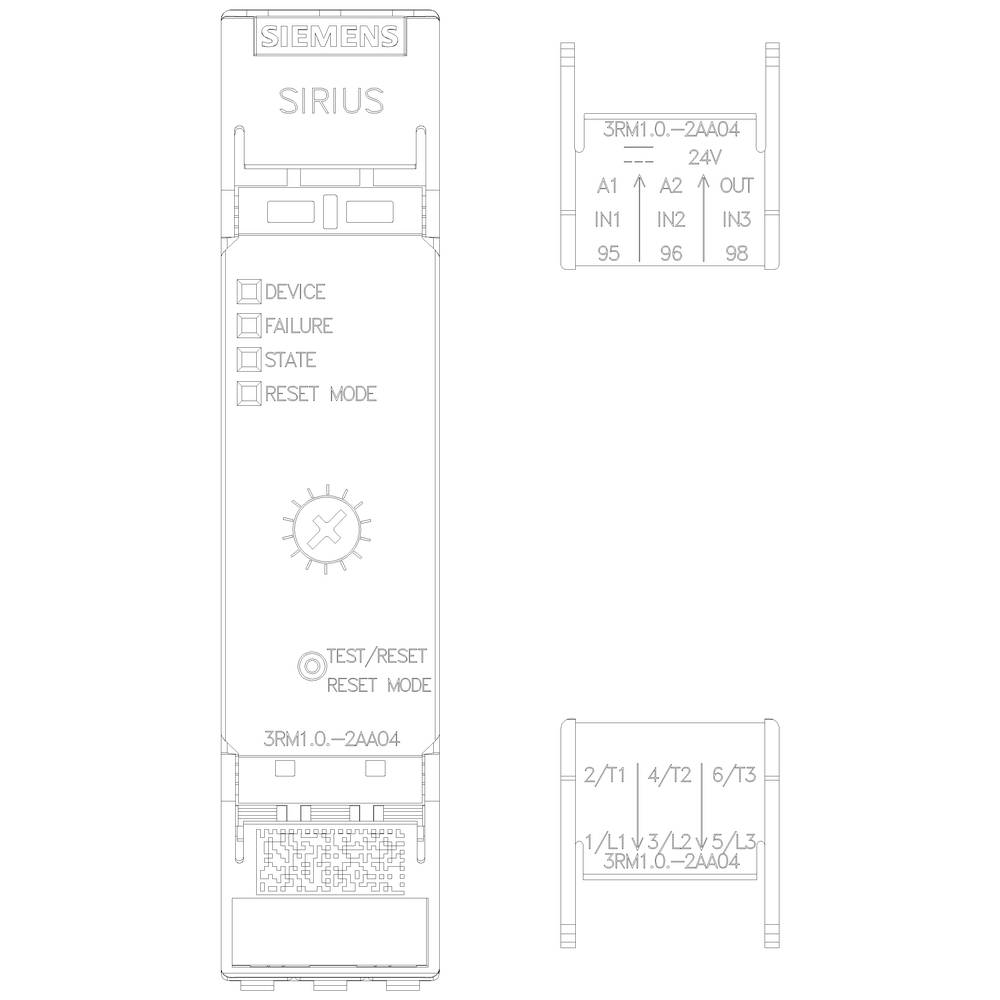

Drawing of a Siemens Sirius device with connection details, indicator lights for 'Device', 'Failure', 'State' and 'Reset Mode'.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 239.99 / piece)

€ 239.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Reversing starter, 1.6-7 A, 24 V DC, spring-loaded connection

Multi-functionality: direct and reversing starters, overload protection, safety switch-off
Durable and energy-efficient hybrid switching technology
Small Device variance with wide setting range

Technical specifications

Motor voltage: 400 V

Product type: Reversing starter

Supply current: 7.0 A

Motor power at 400 V: 3.00 kW

Nominal voltage: 24 V DC

Manufacturer part #: 3RM12072AA04

Nominal current: 7.0 A

Nominal current - rounded value: 7 A

Type: 3RM1207-2AA04

Motor power at 230V / 400V: 3.00 kW

Dim: (W x H x D) 22.5 x 100 x 141.6 mm

Connection: Spring-loaded connector

Width: 22.5 mm

Height: 100 mm

Depth: 141.6 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

: 22.5

: 100 mm

: 141.6 mm

: FALSE

: 3 kW

: 0

: 1

: 1

: FALSE

: 7 A

: 4

: 7-7 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10 A

: FALSE

: FALSE

: Other

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 1.5 kW

: 2.20649625 kW

: 7 A

: 50 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal voltage

Motor power at 400 V

Motor power at 230V / 400V

Nominal current - rounded value

Product type

Siemens 3RM1001-1AA04 3RM10011AA04 Direct motor starter Motor power at 400 V 0.12 kW Motor power at 230 V 1 kW 24 V DC Nominal current 0.5 A

Item no:1419888

Dispatches on Thu 12 Nov

Conrad Electronic

24 V DC

0.12 kW

1 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1001-1AA14 3RM10011AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419889

Dispatches on Thu 12 Nov

Conrad Electronic

110 V AC

0.12 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3RM1001-2AA04 3RM10012AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419890

Dispatches on Thu 12 Nov

Conrad Electronic

24 V DC

0.12 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Siemens 3RM1001-2AA14 3RM10012AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419891

Dispatches on Thu 12 Nov

Conrad Electronic

110 V AC

0.12 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Siemens 3RM1001-3AA04 3RM10013AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419892

Dispatches on Thu 12 Nov

Conrad Electronic

24 V DC

0.12 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Siemens 3RM1001-3AA14 3RM10013AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419893

Dispatches on Thu 12 Nov

Conrad Electronic

110 V AC

0.12 kW

500 mA

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Siemens 3RM1002-1AA04 3RM10021AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419894

Fast track dispatch on Wed 4 Nov

6 Piece(s)Conrad Electronic

24 V DC

0.75 kW

2 A

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3RM1002-1AA14 3RM10021AA14 Direct motor starter Motor power at 400 V 0.75 kW 110 V AC, 230 V AC Nominal current 2.0 A

Item no:1419895

Dispatches on Thu 12 Nov

Conrad Electronic

110 V AC

0.75 kW

2 A

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419896

Dispatches on Thu 12 Nov

Conrad Electronic

24 V DC

0.75 kW

2 A

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Siemens 3RM1002-2AA14 3RM10022AA14 Direct motor starter Motor power at 400 V 0.75 kW 110 V AC, 230 V AC Nominal current 2.0 A

Item no:1419897

Dispatches on Thu 12 Nov

Conrad Electronic

110 V AC

0.75 kW

2 A

Direct motor starter

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

Documents & Downloads

Datasheet

Datasheet 1419938 Siemens 3RM1207-2AA04 3RM12072AA04 Reversing starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A

User & Safety Instructions

User & Safety Instructions 1419938 Siemens 3RM1207-2AA04 3RM12072AA04 Reversing starter Motor power at 400 V 3.00 kW 24 V DC Nominal current 7.0 A

Description

Reversing starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, SIRIUS 3RM1 reversing starter spring-type connection for operational switching of three-phase motors.
Narrow width, multifunctional, with electronic overload protection, long-lasting and energy-efficient hybrid switching technology, low device variance through wide adjustment range, easy mounting through lower wiring expenditure, fast error diagnosis through LED-display, innovative housing concept e.g. with labeled cover flaps and removable connection clamps.
Available as direct or reversing starters with either ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection techniques.
Extensive accessories such as device connectors, fuse module, infeed system or sealable covers round off the system.
Starting in confined spaces - SIRIUS 3RM1 motor starters.

This text is machine translated.
