Name: Siemens 3RT2026-2CK64-3MA0 Electrical contactor 3 makers 11 kW 690 V AC + varistor Compatible with (relay brand): Siemen
Brand: Siemens
SKU: 1745764
Availability: InStock

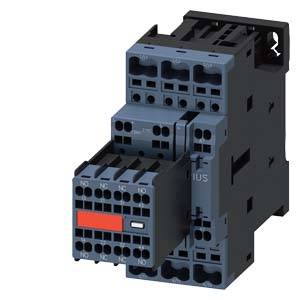

An electrical relay with black connection terminals and a red switch is depicted from a side perspective.

An electrical cabinet with electronic components on the left. To the right, a window with water droplets, revealing a view of machines in the background.

'Detailed circuit diagram of a protection system with multiple components, numberings and an explanatory text about wiring.'

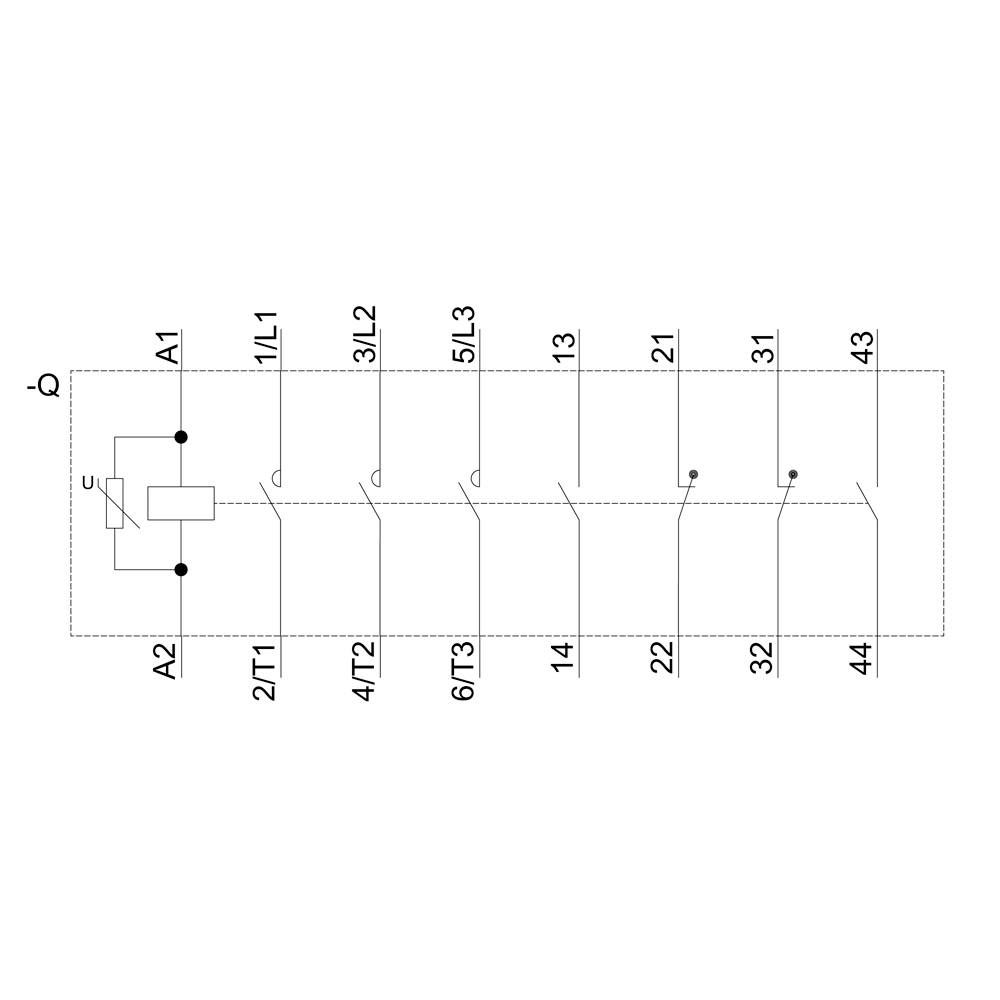

Circuit diagram of a three-phase contactor with connections: A1, A2 for control circuit, 1L1, 3L2, 5L3 input, 2T1, 4T2, 6T3 output.

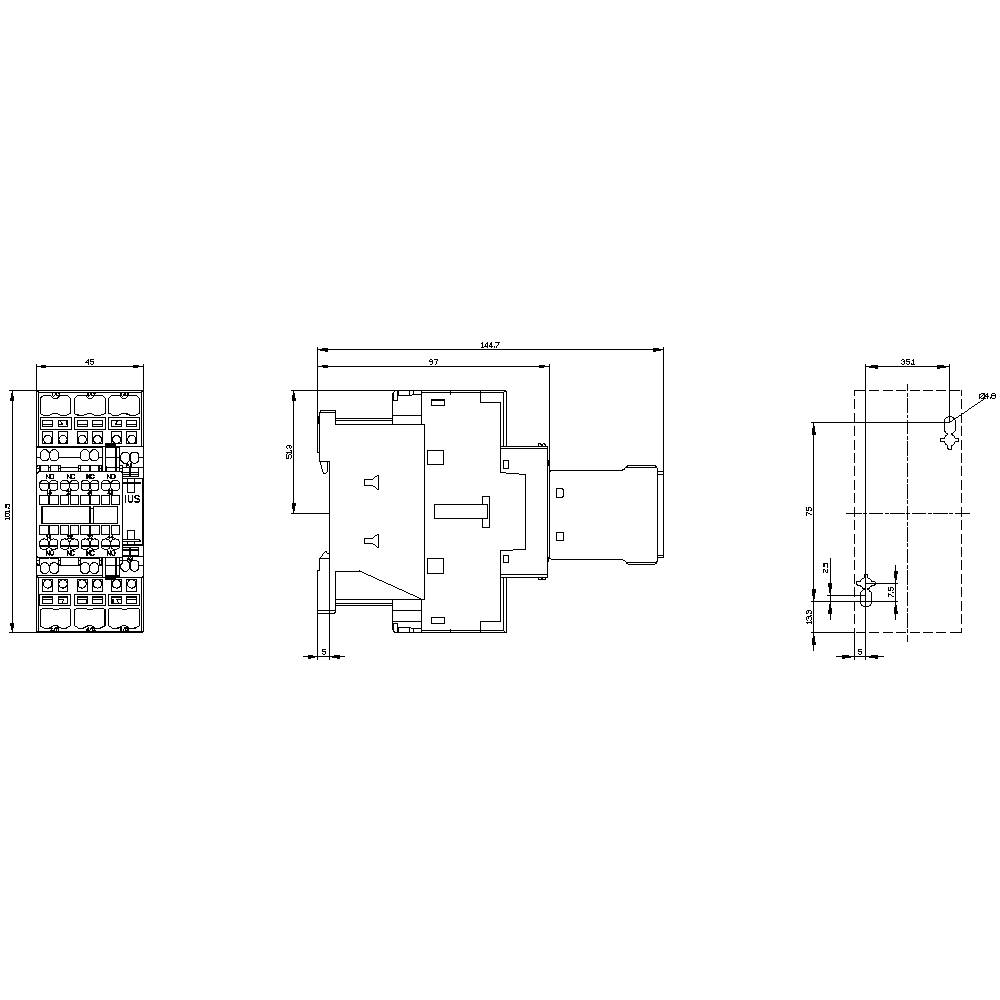

Technical drawing of an electrical device with dimensions. Shows front, side, and top views. Contains detailed measurements and component positions.

1/5

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

11 kW

Connection

Spring-loaded connector

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 189.99 / piece)

€ 189.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for fine-wire: 6 mm²

Product type: Electrical contactor

Type: 3RT2026-2CK64-3MA0

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 110 V AC

Control voltage (max.): 120 V AC

Control voltage range: 110 - 120 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 25 A

: 11 kW

Compatible with: Siemens

Compatible with series: Siemens S0 type

Features: + varistor

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 144 mm

Dim: (W x H x D) 45 x 102 x 144 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 11 kW

: 3

: 2

: 2

: 25 A

: 40 A

: Spring clamp connection

: AC

: 15.5 A

: 11.03248125

UKCA: yes
