Name: Siemens 3RT2027-2AN24 Contactor 3 makers 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(
Brand: Siemens
SKU: 1745962
Availability: InStock

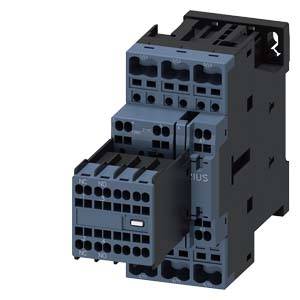

A dark electrical terminal block with multiple plug connections, primarily for industrial applications.

A control cabinet with an open door reveals electrical components. A machine is visible through a rain-covered window in the background.

Exploded diagram of a switching device with numbered components and description list, showing wiring and connection instructions.

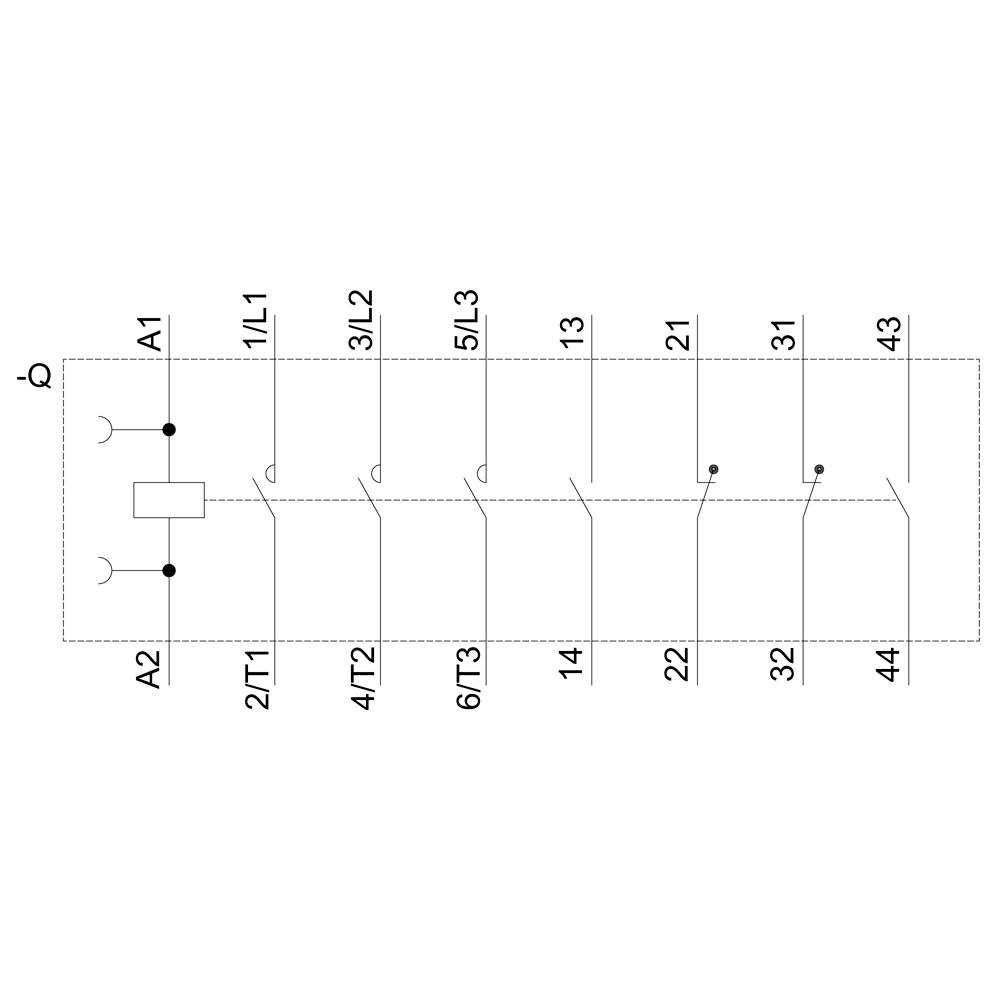

A circuit diagram shows an electrical circuit with multiple connections and lines that are numbered: A1, A2, 1/L1, 2/T1, etc.

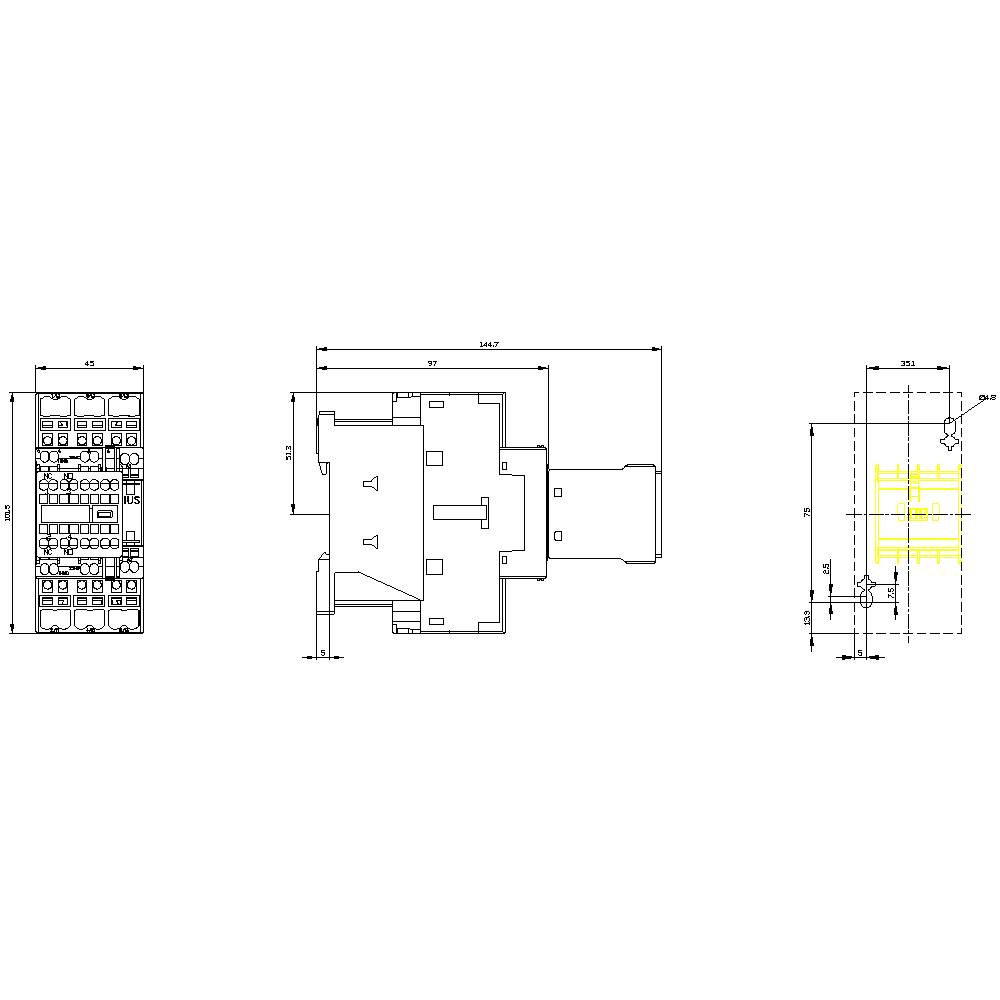

Three-part technical drawing of an electrical component with dimensions in millimetres. Main view in the centre, side views on the left and right.

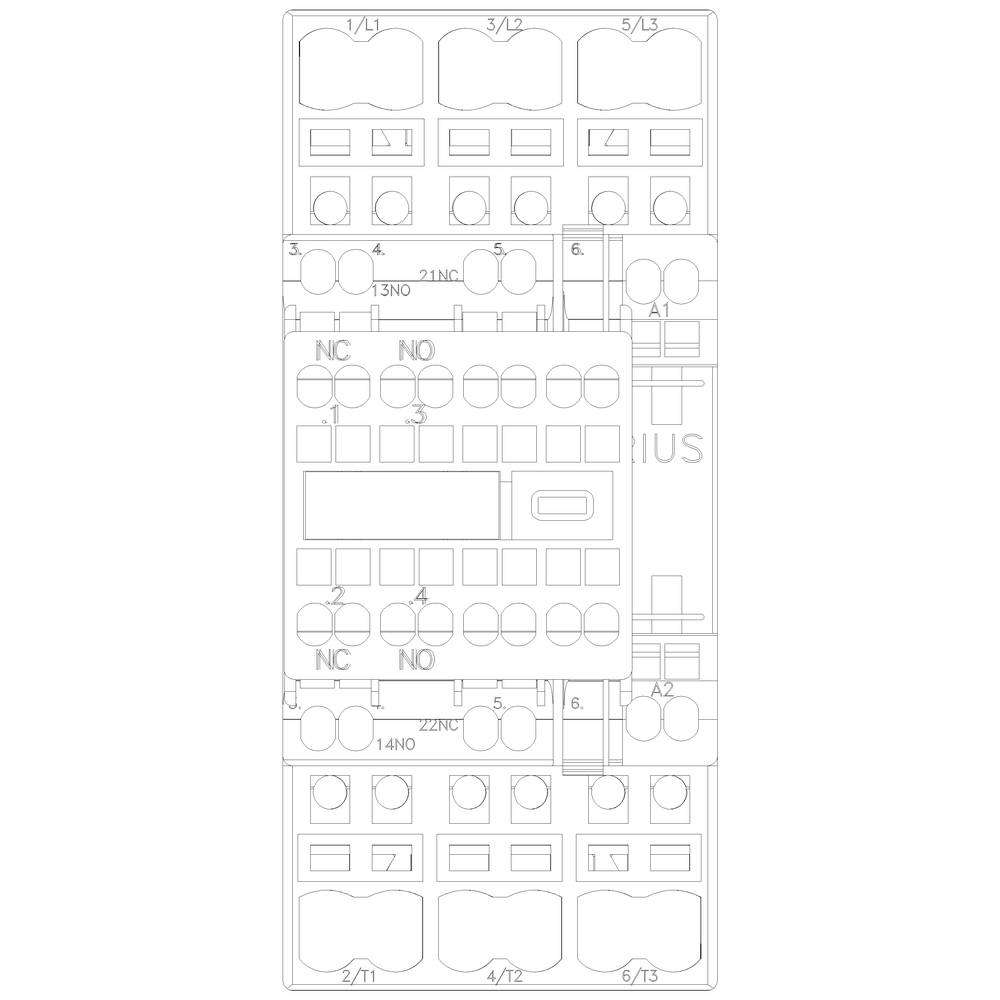

A technical drawing of a control panel with various buttons and contacts, labelled with 'NO' and 'NC'.

1/6

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Spring-loaded connector

Packaging type

Piece

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for fine-wire: 6 mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2027-2AN24

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 2 makers

Nominal voltage: 690 V AC

Control voltage (max.): 220 V AC

Control voltage range: 220 V AC (max)

Switching voltage (max.): 690 V AC

Permanent current (max.): 32 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 144 mm

Dim: (W x H x D) 45 x 102 x 144 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 15 kW

: 3

: 2

: 2

: 32 A

: 50 A

: Spring clamp connection

: AC

: 22 A

: 14.709975

UKCA: yes
