Name: Siemens 3RT2037-1AP64 Contactor 3 makers 30 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece
Brand: Siemens
SKU: 1745578
Availability: BackOrder

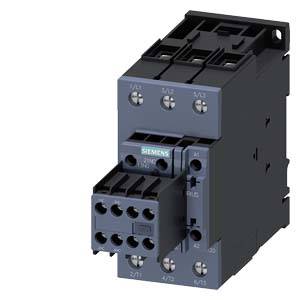

A black, rectangular electrical contactor with multiple terminals, manufactured by Siemens. Used for controlling electrical circuits.

Industrial cabinet with electrical circuits in the foreground, production facility visible through a rain-streaked window in the background.

'Exploded diagram of a protection device with numbered parts. Shows components and their arrangement for assembly and connection.'

'Circuit diagram shows circuits with designations A1, A2, 1/L1, 3/L2, 5/L3; Contacts 13 NC, 14 NO, 31 NC, 32 NO, 43 NO.'

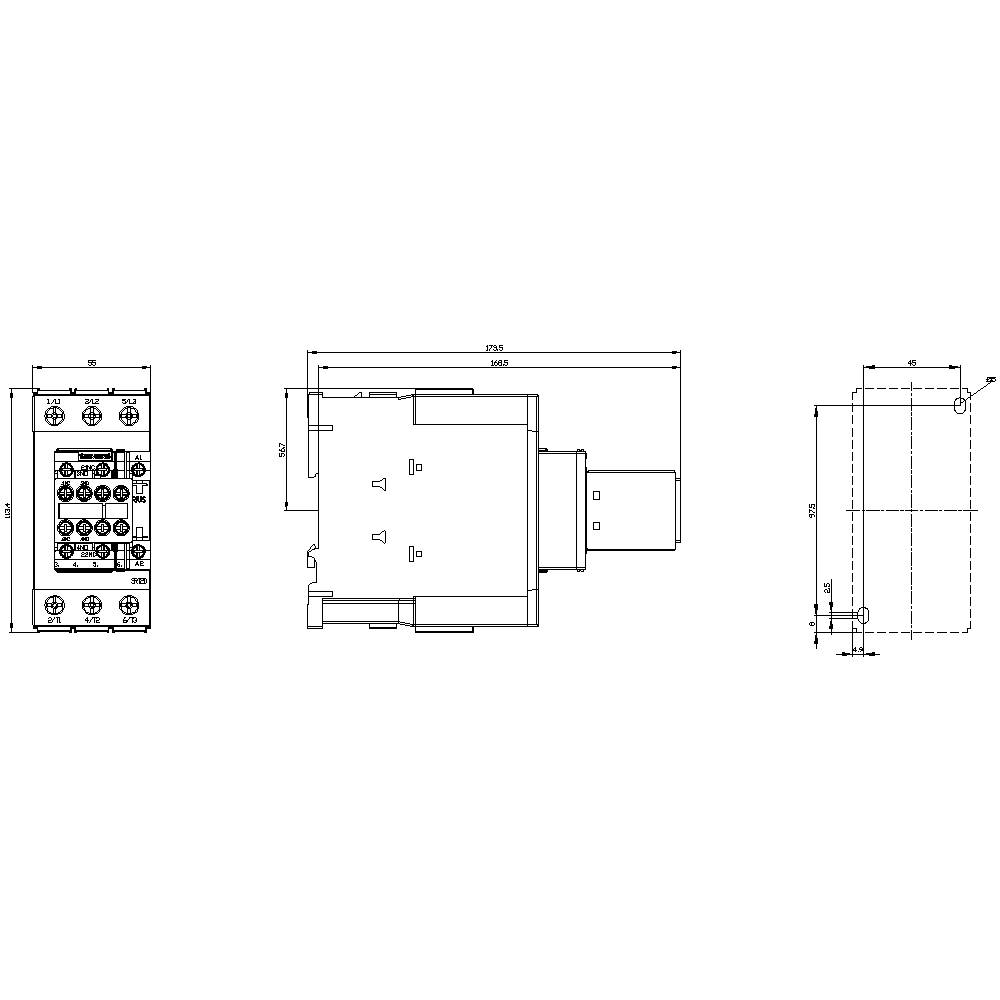

Technical drawing of an electrical device with top view, front view, and side view. Dimensions and technical details provided.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

30 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 305.00 / piece)

€ 305.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2037-1AP64

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 220 V AC

Control voltage (max.): 240 V AC

Control voltage range: 220 - 240 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 65 A

: 30 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 174 mm

Dim: (W x H x D) 55 x 114 x 174 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 30 kW

: 3

: 2

: 2

: 65 A

: 80 A

: Screw connection

: AC

: 55 A

: 36.7749375

UKCA: yes
