Name: Siemens 3RT2038-1AF04 Contactor 3 makers 37 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece
Brand: Siemens
SKU: 1745791
Availability: BackOrder

A switchgear installation with an open door reveals complex electronics. Through the glass, a production machine can be seen in operation.

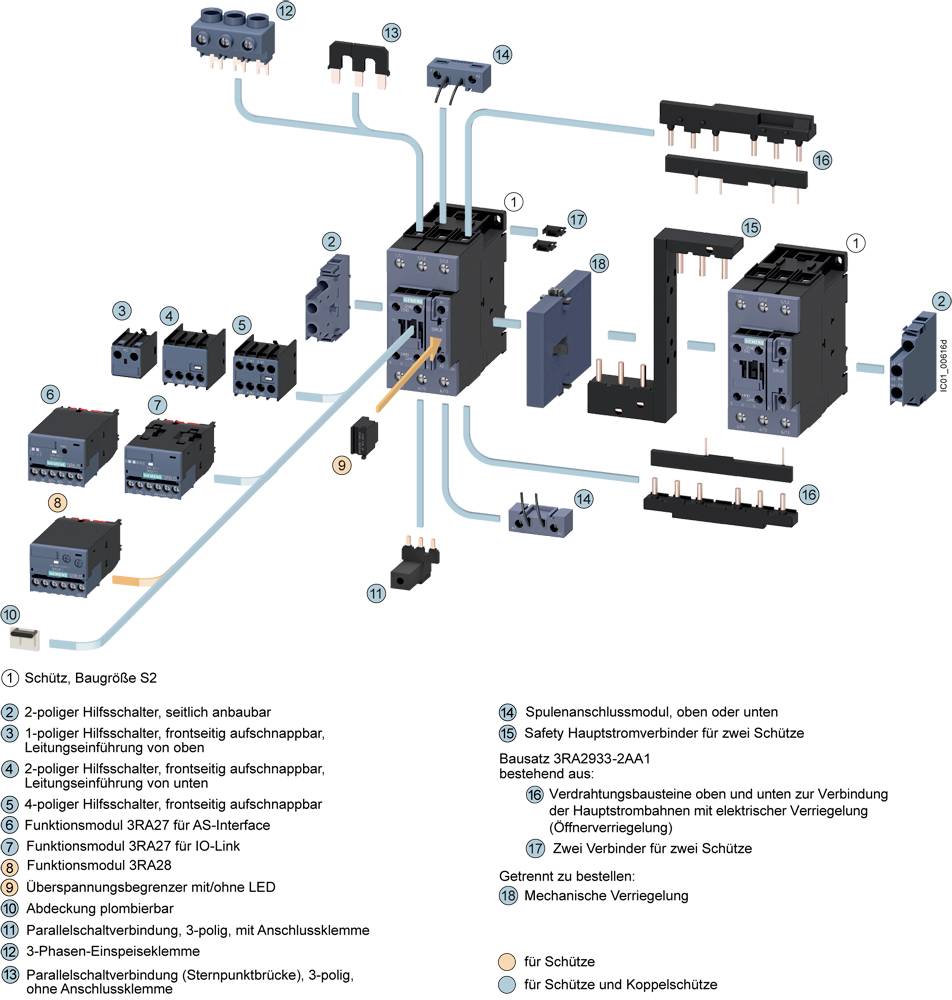

Schütz Diagram: Shows various components of a contactor, their positions and connections. Numbered components with text descriptions.

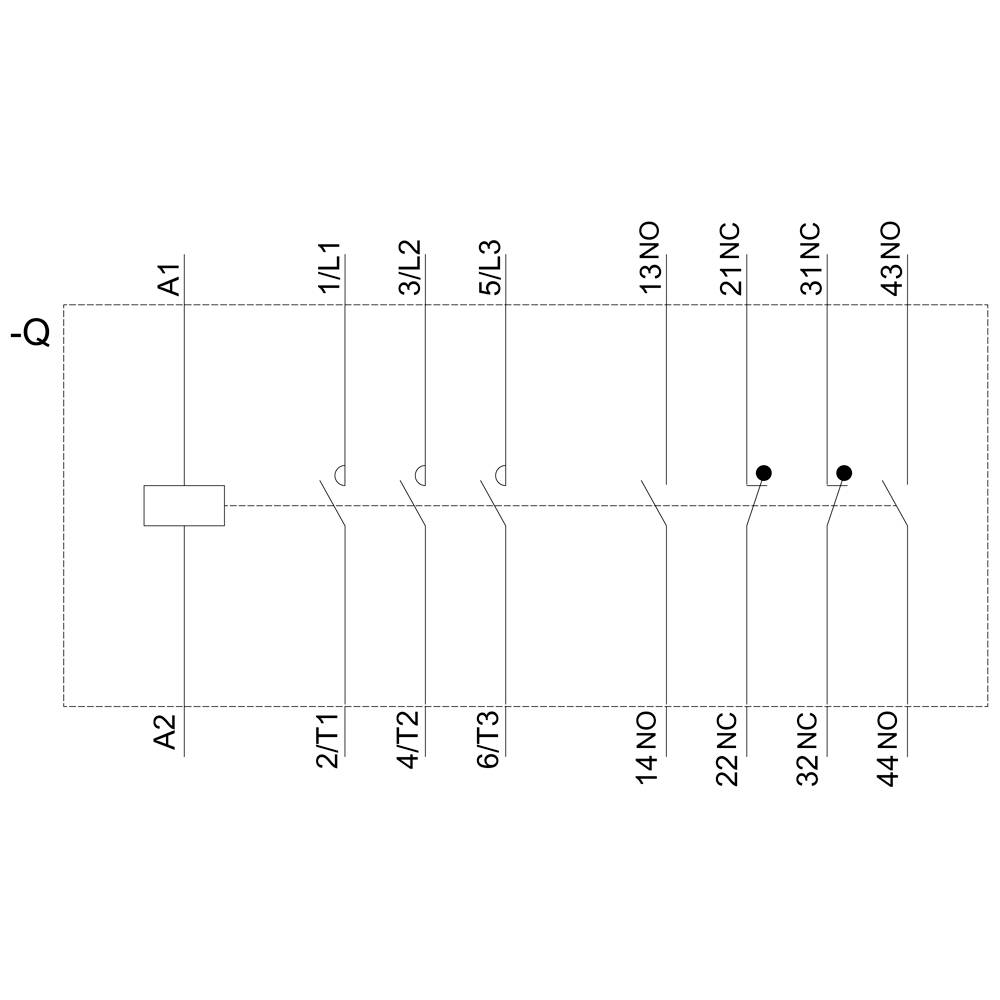

Circuit diagram of an electrical contactor system with coil connections at A1 and A2, as well as connections 1L1, 3L2, 5L3 and contacts 13, 14, 31, 43.

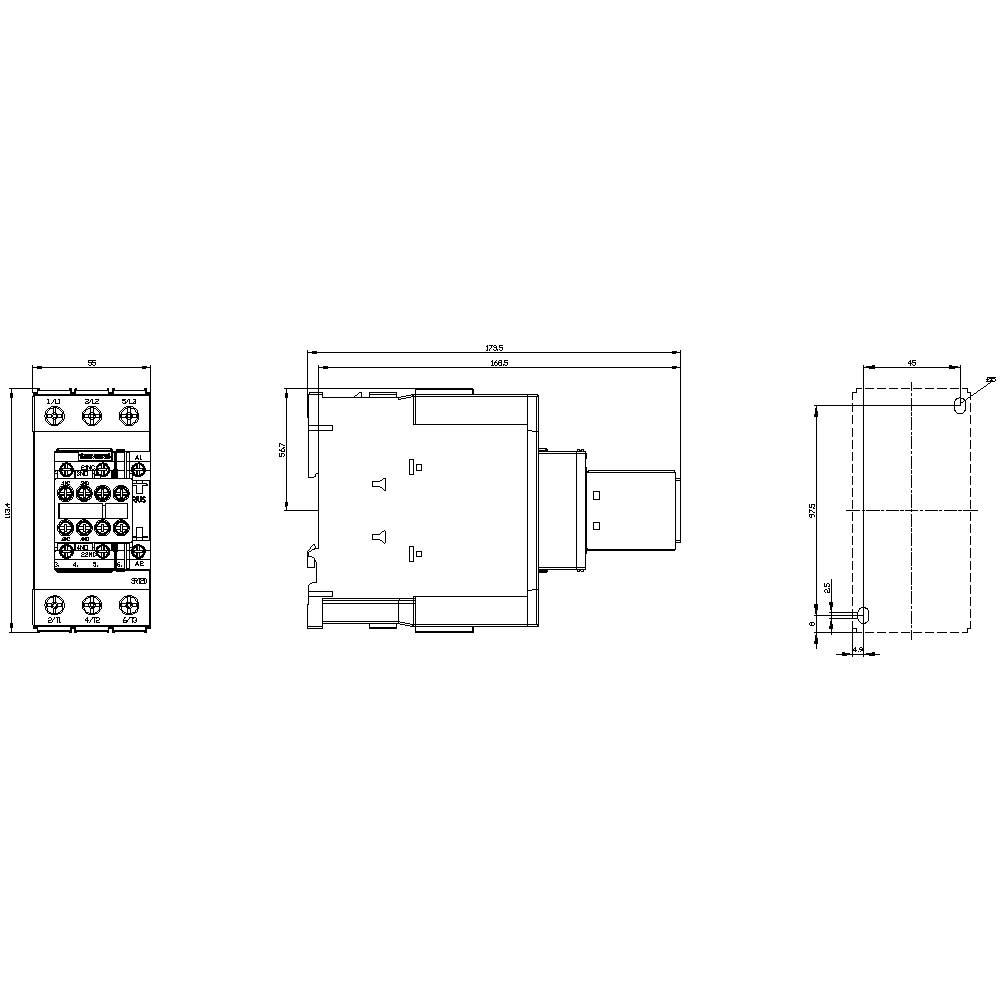

Technical drawing of an electric switch with front, side, and top views. Dimensions in millimetres. Components and connections are shown in detail.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

37 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 345.00 / piece)

€ 345.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2038-1AF04

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 110 V AC

Control voltage (max.): 110 V AC

Control voltage range: 110 - 110 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 80 A

: 37 kW

Compatible with: Siemens

Compatible with series: Siemens S2 type

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 174 mm

Dim: (W x H x D) 55 x 114 x 174 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 37 kW

: 3

: 2

: 2

: 80 A

: 90 A

: Screw connection

: AC

: 55 A

: 36.7749375

UKCA: yes
