Name: Siemens 3RT2038-1AL24 Contactor 3 makers 37 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
Brand: Siemens
SKU: 1745797
Availability: BackOrder

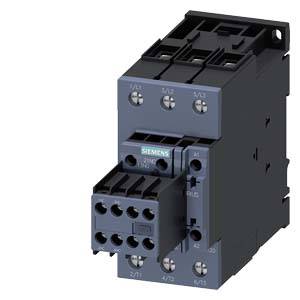

A black electric contactor with multiple connection options, primarily used for controlling electrical circuits.

A glimpse inside a factory; in the foreground an open electrical cabinet with cables and components, machines visible through a rain-streaked window in the background.

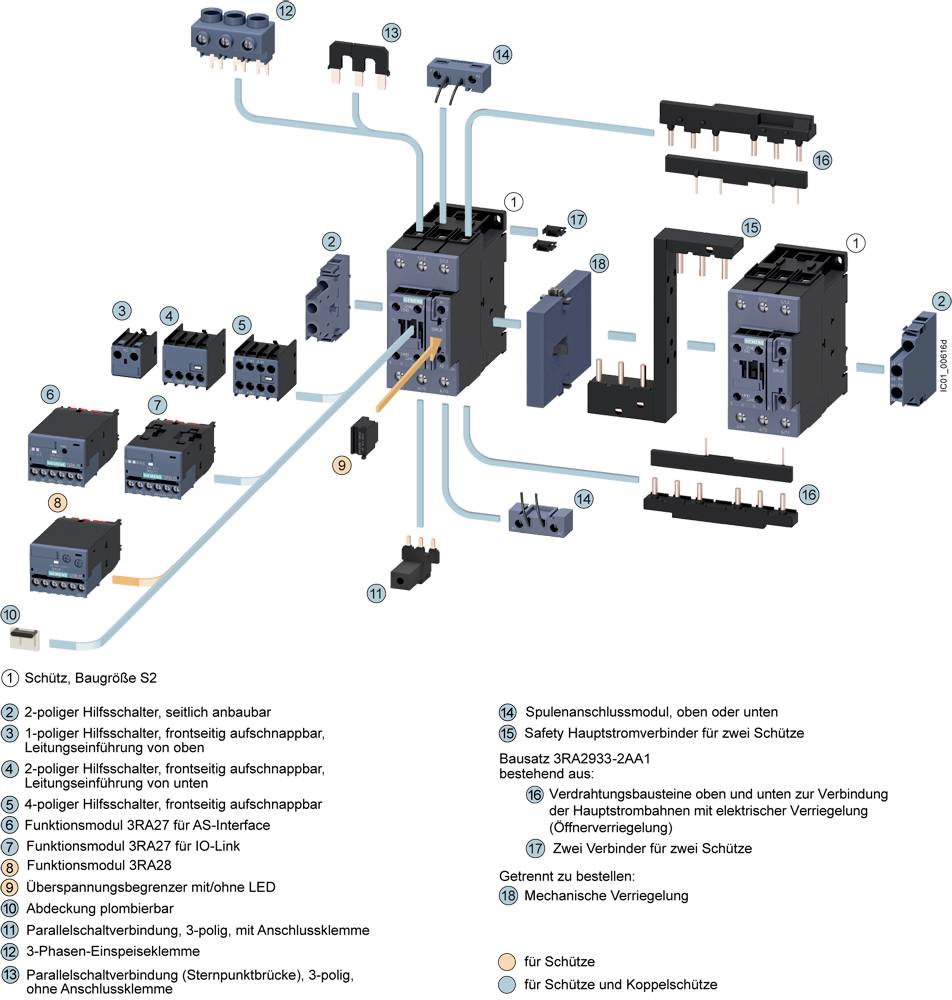

Electrical diagram shows the configuration of a contactor with all connection points and modules, including auxiliary switches and coil terminals.

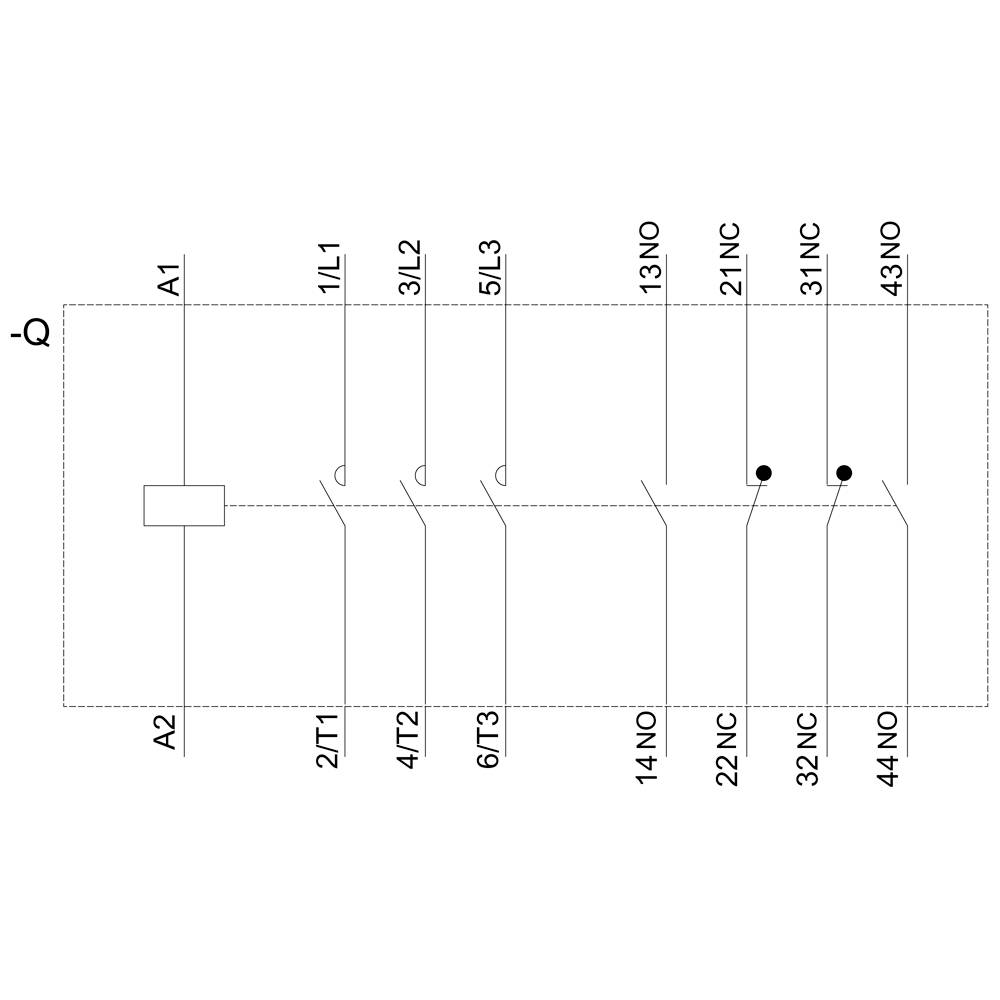

Circuit diagram of an electrical circuit with multiple switches and contacts, numbered from 1 to 43, showing a logical connection.

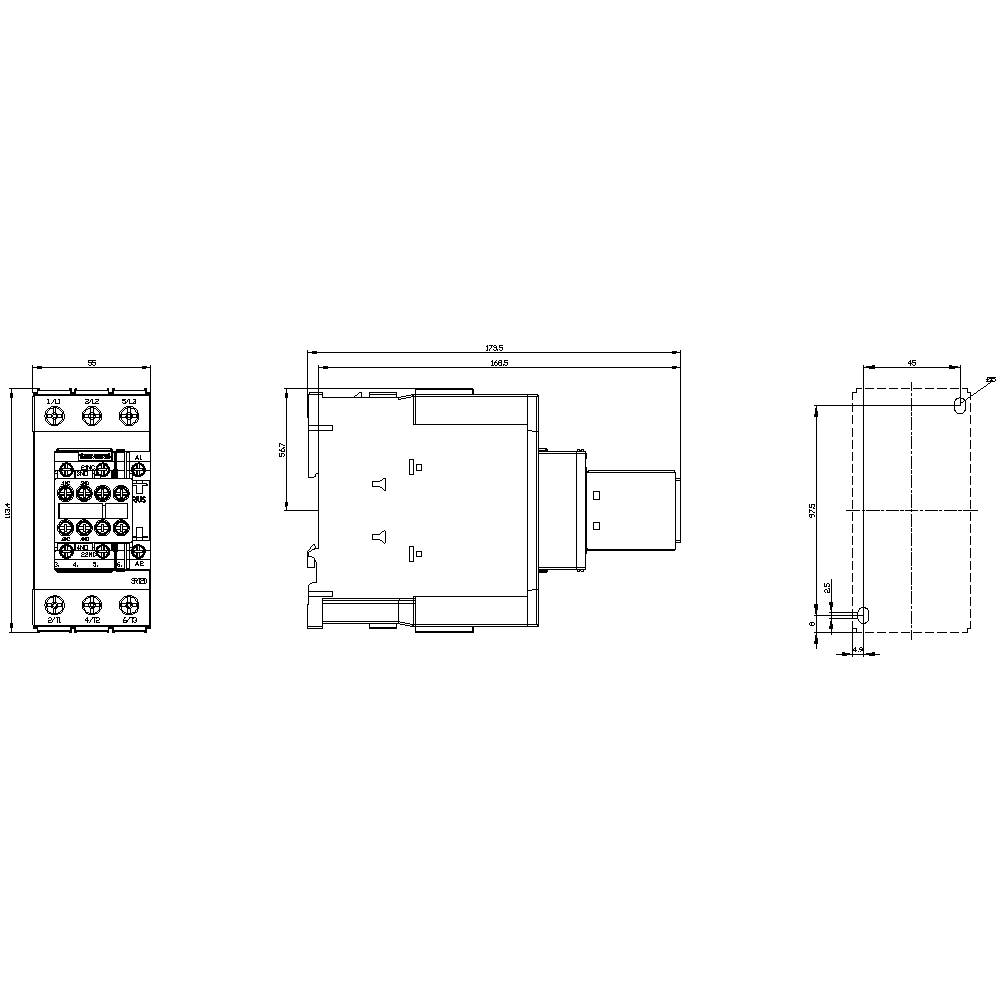

Technical drawing of an electronic component with multiple side views and dimensions. Connections on the left, housing in the centre.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

37 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 299.00 / piece)

€ 299.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2038-1AL24

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 230 V AC

Control voltage (max.): 230 V AC

Control voltage range: 230 - 230 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 80 A

: 37 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 174 mm

Dim: (W x H x D) 55 x 114 x 174 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 37 kW

: 3

: 2

: 2

: 80 A

: 90 A

: Screw connection

: AC

: 55 A

: 36.7749375

UKCA: yes
