Name: Siemens 3RT2038-1NP34 Contactor 3 makers 37 kW 690 V AC + varistor Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1746456
Availability: BackOrder

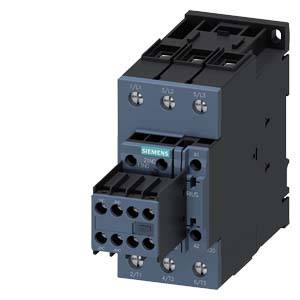

A black and blue electrical contactor, a device for switching electrical circuits, with connection terminals and labelled 'Siemens'.

An open electrical cabinet with cables and electronics on the left, with an industrial machine seen blurrily through a rain-streaked window on the right.

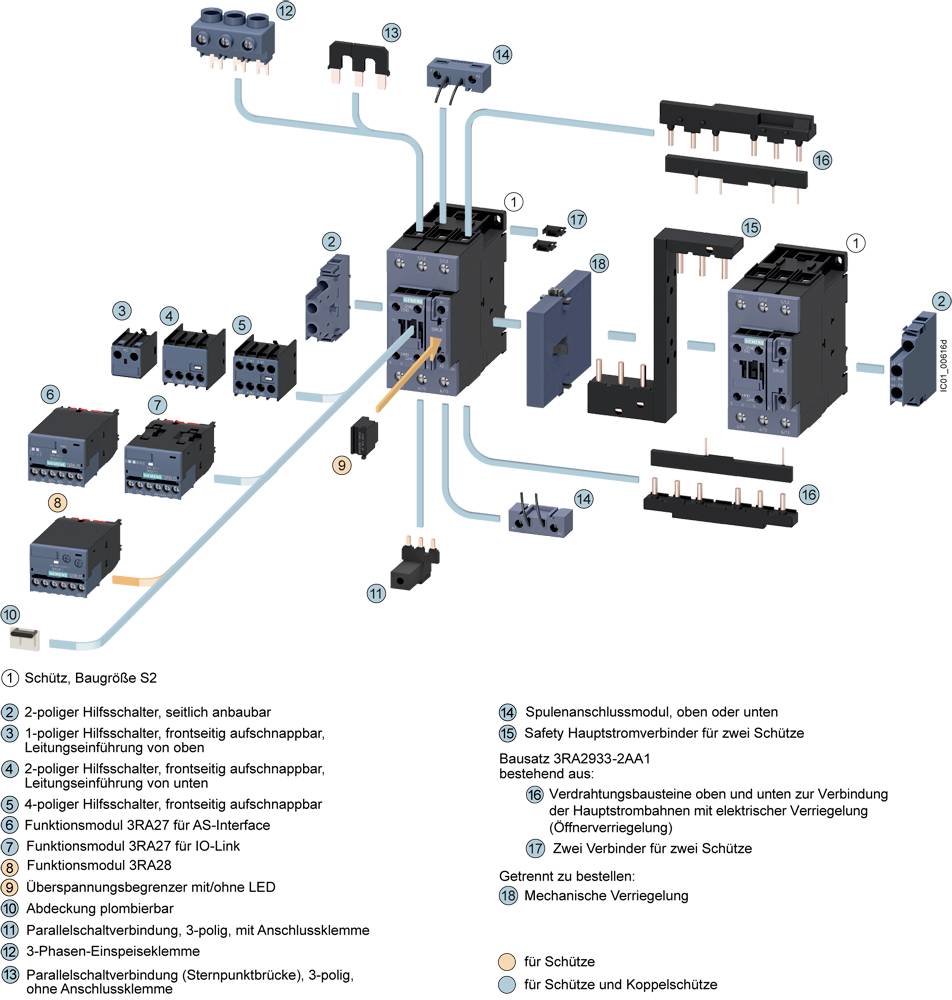

Assembly Instructions for Contactor: Various modules and connection points are numbered and described, including accessories and functions.

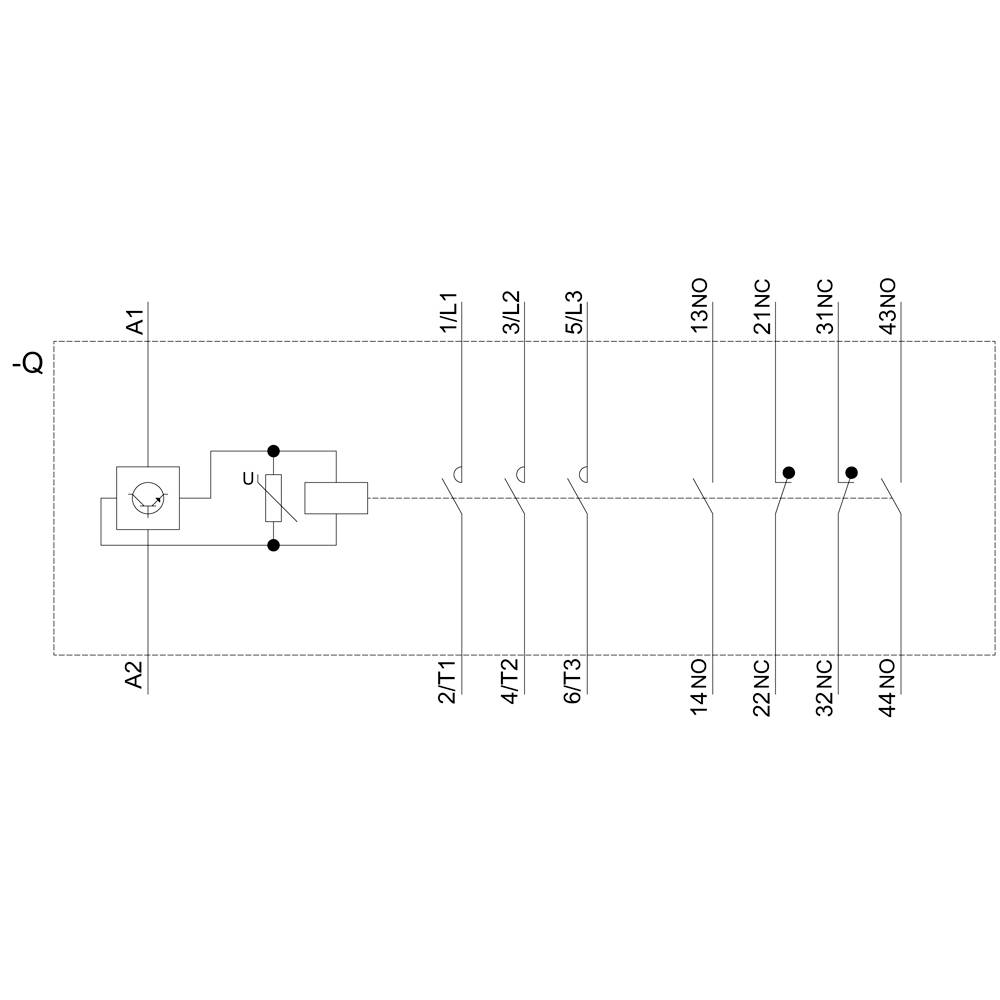

'Electrical circuit diagram with an inductor U1, a lamp, and several contacts. The inductor U1 is connected to A1 and A2.'

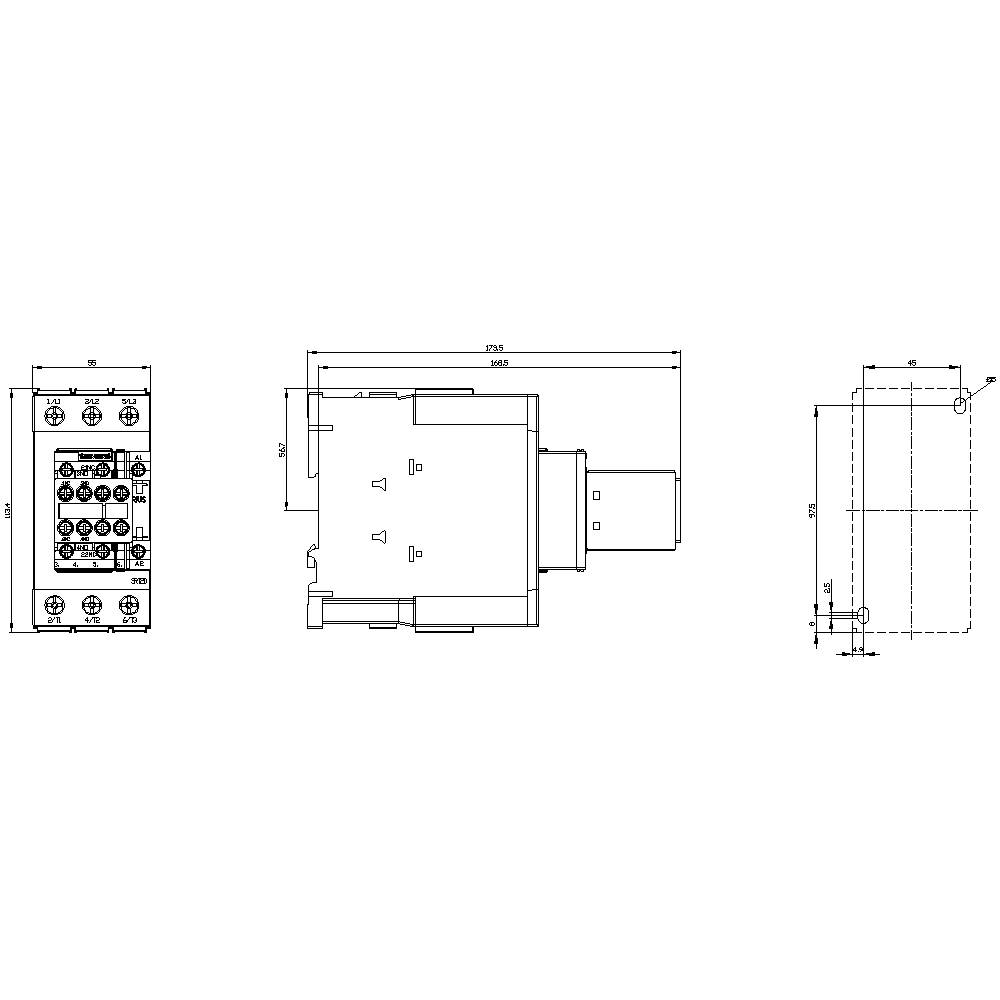

Technical drawing of an electrical connector with dimensional measurements and connections. Shows front, side, and top views.

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

37 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 695.00 / piece)

€ 695.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2038-1NP34

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 80 A

: 37 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 174 mm

Dim: (W x H x D) 55 x 114 x 174 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 37 kW

: 3

: 2

: 2

: 80 A

: 90 A

: Screw connection

: AC/DC

: 55 A

: 36.7749375

UKCA: yes
