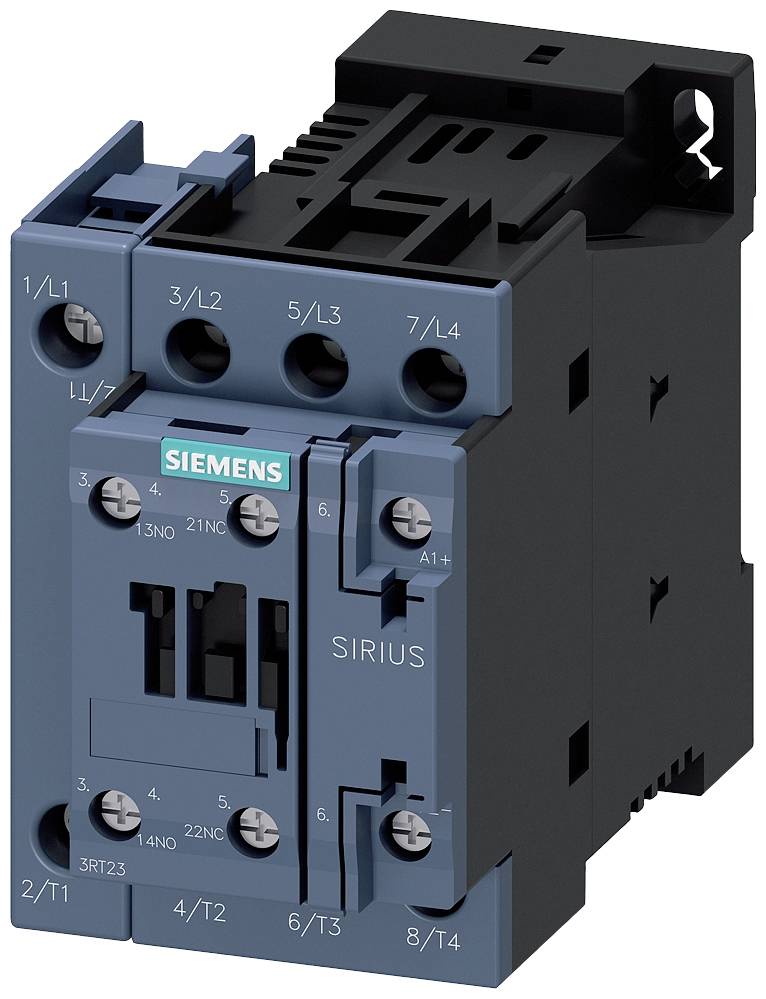

Name: Siemens 3RT2325-1BF40 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1706012
Availability: BackOrder

Electronic control cabinet on the left, machine visible behind glass through rain shower on the right, emphasising technological complexity.

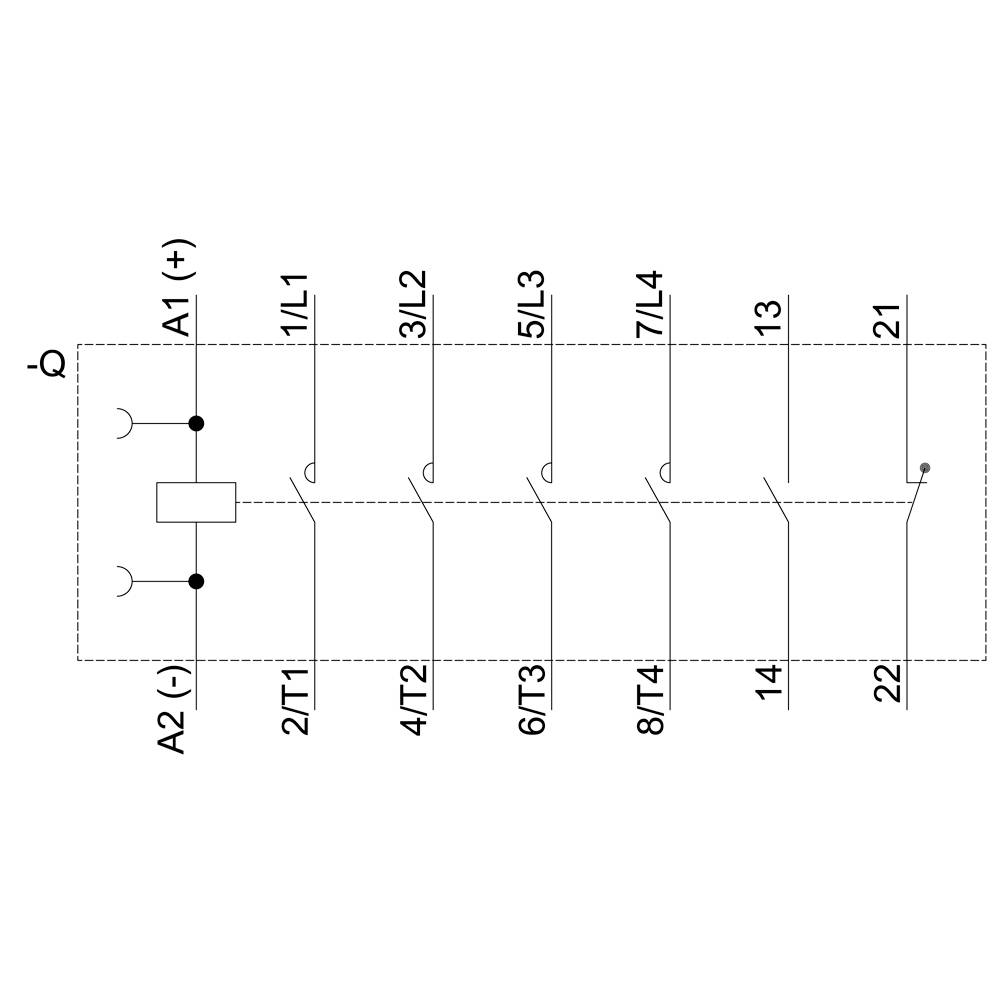

Switching symbol for contactor: A1 and A2 are connections with contact relays and changeover switches. Shows electrical connection points.

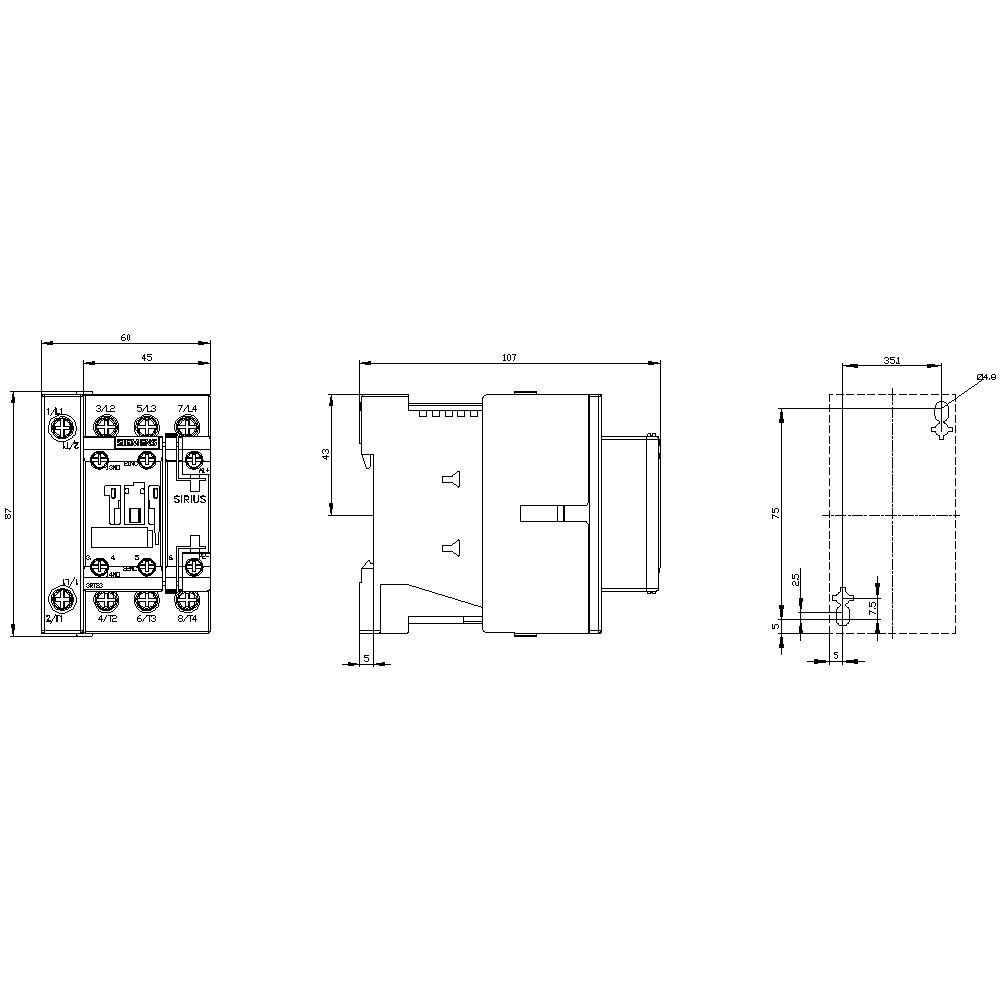

Technical drawing of an electrical switching device with front, side, and top views. Dimensions and mounting points are indicated.

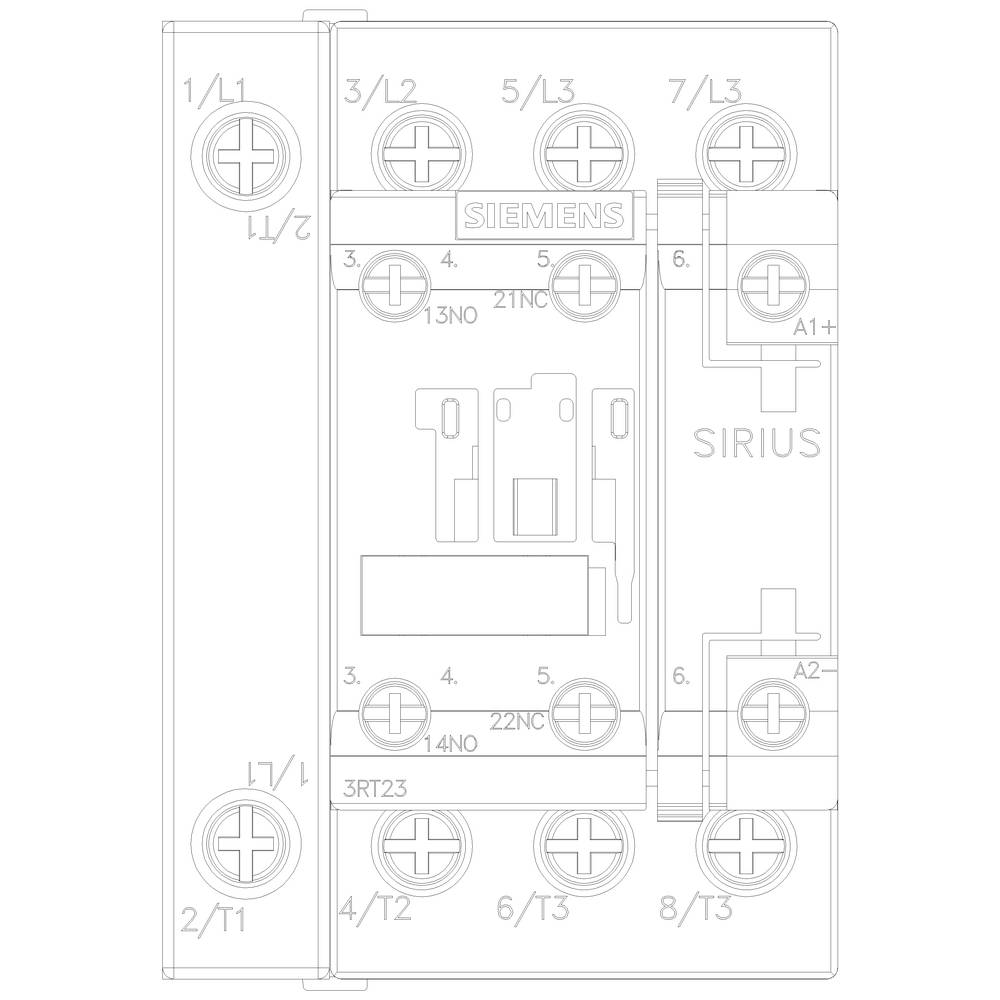

'Circuit diagram of a Siemens SIRIUS contactor module. Includes several labelled terminal connections and switching contacts, identified as 3RT23.'

1/5

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Screw terminal

Packaging type

Piece

Type

3RT2325-1BF40

Datasheet (PDF)

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2325-1BF40

Type: S0

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Control voltage (max.): 110 V DC

Control voltage range: 110 V DC (max)

Switching voltage (max.): 400 V AC

Max. switching capacity: 14000 VA

Permanent current (max.): 35 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screw terminal

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 60 mm

Height: 85 mm

Depth: 107 mm

Dim: (W x H x D) 60 x 85 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 7.5 kW

: 4

: 1

: 1

: 15.5 A

: 35 A

: Screw connection

: DC

: 15.5 A

: 7.5 kW

UKCA: yes
