Name: Siemens 3RT2336-1AN20 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1700485
Availability: BackOrder

A blue Siemens contactor with multiple screw terminals, suitable for controlling electrical contacts in control cabinets.

Industrial control system: Open electrical cabinet reveals electronic components, with a window showing raindrops beside it, and a machine visible in the background.

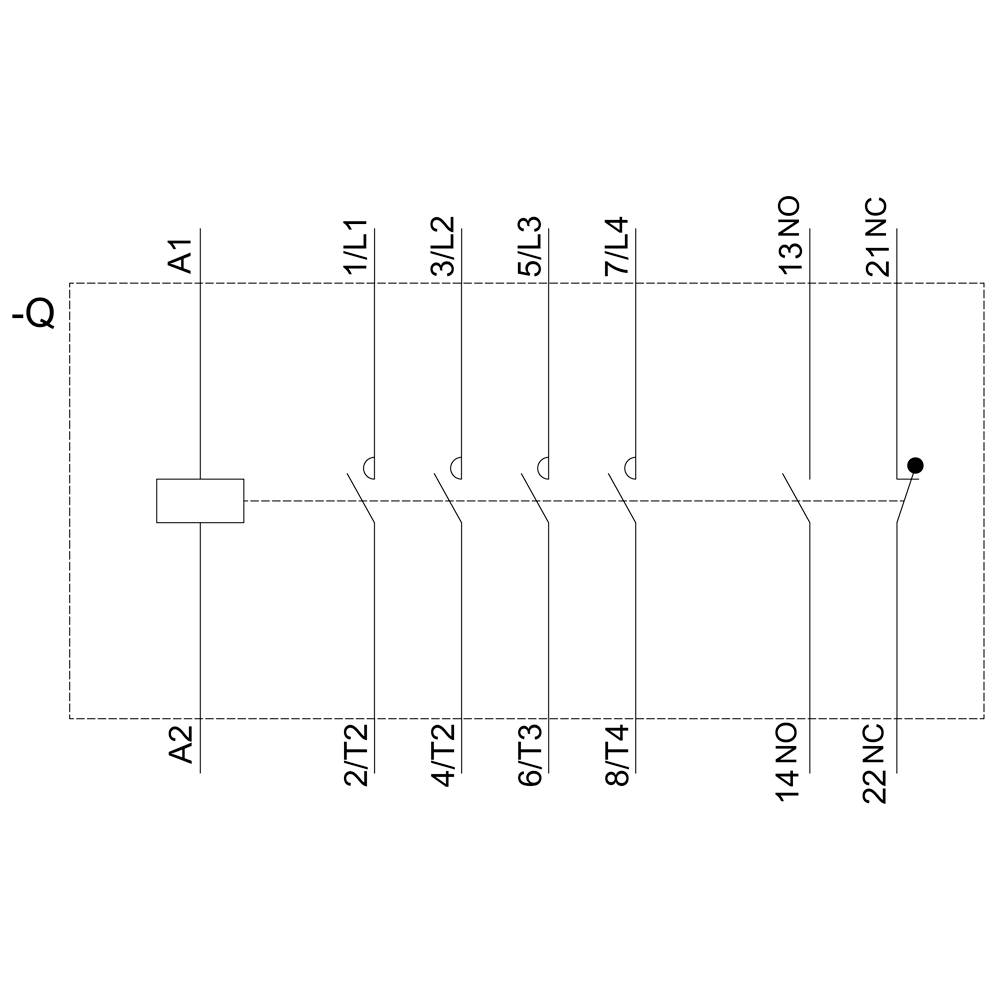

Schematic circuit diagram of an electrical protection system with alternately numbered terminals from A1 to 22NC, starting at A1.

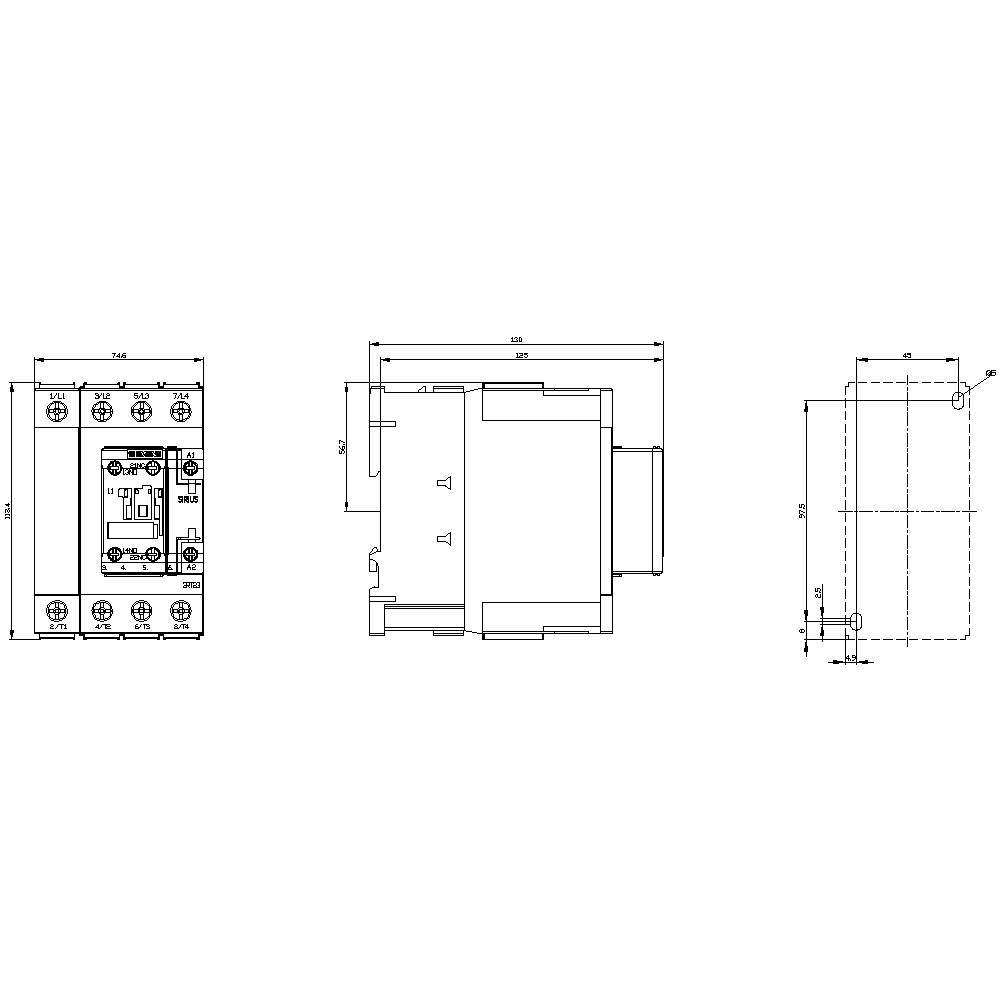

Technical drawing of an electrical component with front, side, and top views. Dimensions and connection details are marked.

1/4

Image similar

Product type

Contactor

No. of pins

4-pin

Packaging type

Piece

Type

3RT2336-1AN20

Type

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2336-1AN20

Type: S2

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Control voltage (min.): 220 V AC

Control voltage (max.): 220 V AC

Control voltage range: 220 - 220 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 60 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Durability: 1000 0000

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 75 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 75 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 4

: 1

: 1

: 38 A

: 60 A

: Screw connection

: AC

UKCA: yes
