Name: Siemens 3RT2336-1NB30 Contactor 4 makers + varistor Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1730074
Availability: BackOrder

A Siemens contactor, an electrically operated switching contactor for motor control, with blue labelling on a black housing.

An open electrical cabinet with electronic components on the left. To the right, a rain-streaked window with an industrial machine visible in the background.

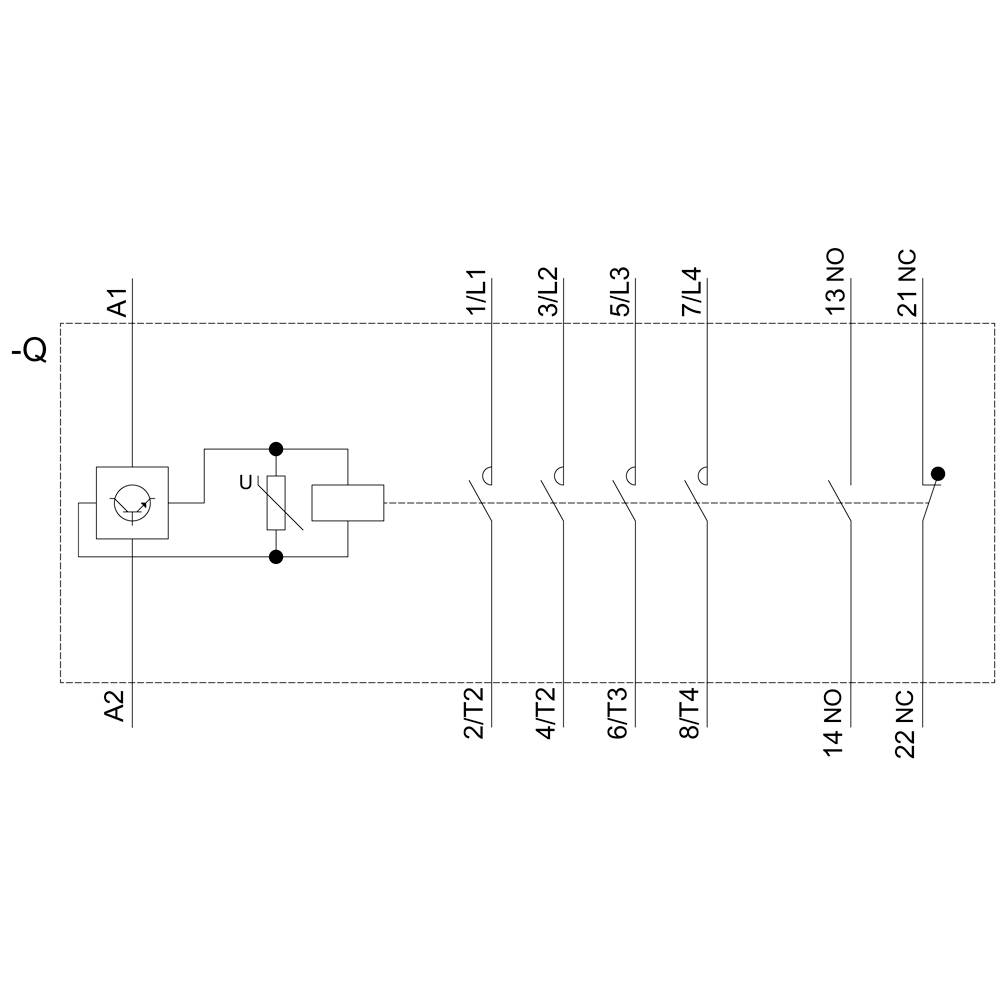

Circuit diagram showing a relay, multiple contacts, and electrical connections, illustrated for connecting and controlling an electrical device.

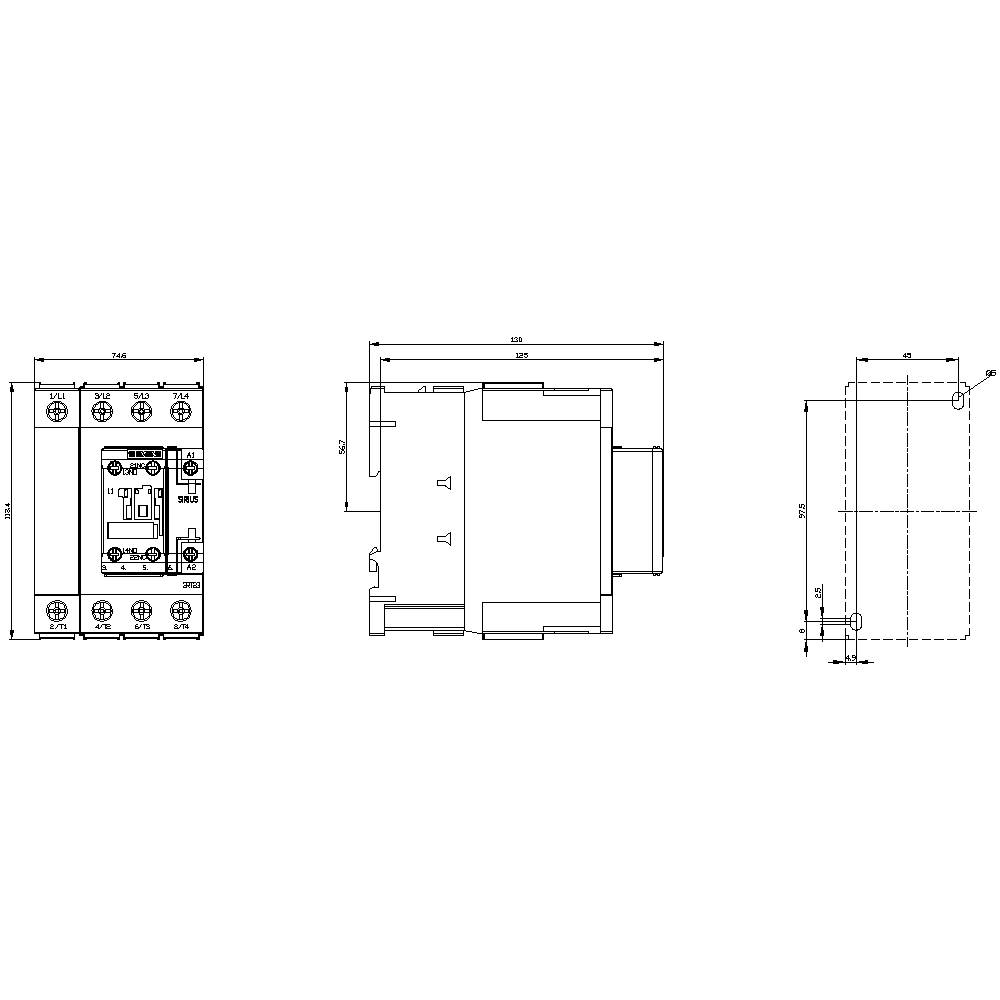

Technical drawing of an electrical switch with three views: front view, side view, and top view with dimensional specifications.

1/4

Image similar

Product type

Contactor

No. of pins

4-pin

Type

3RT2336-1NB30

Type

Contact type

4 makers

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 325.00 / piece)

€ 325.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2336-1NB30

Type: S2

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Switching voltage (max.): 400 V AC

Permanent current (max.): 60 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Snap-in
Screw-fit

Durability: 1000 0000

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 75 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 75 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 4

: 1

: 1

: 38 A

: 60 A

: 20-33 V

: 20-33 V

: 20-33 V

: Screw connection

: AC/DC

UKCA: yes
