Name: Siemens 3SU10004WS100AA0 3SU1000-4WS10-0AA0 Key switch 3 x 45 ° IP65 1 pc(s) Piece
Brand: Siemens
SKU: 1737252
Availability: BackOrder

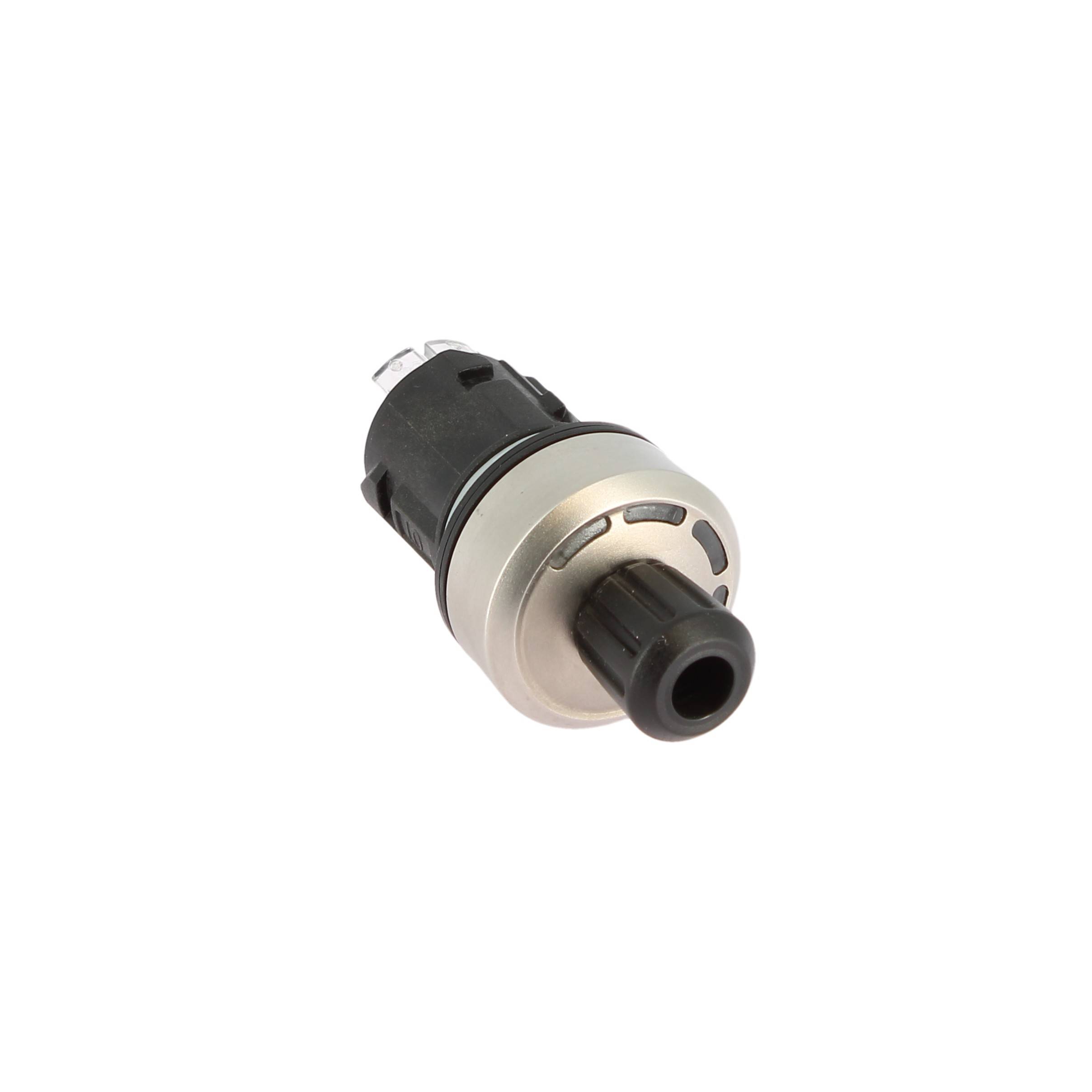

Plastic automotive component, cylindrical, black body, suitable for valves or hoses, shows technical component in enlarged view.

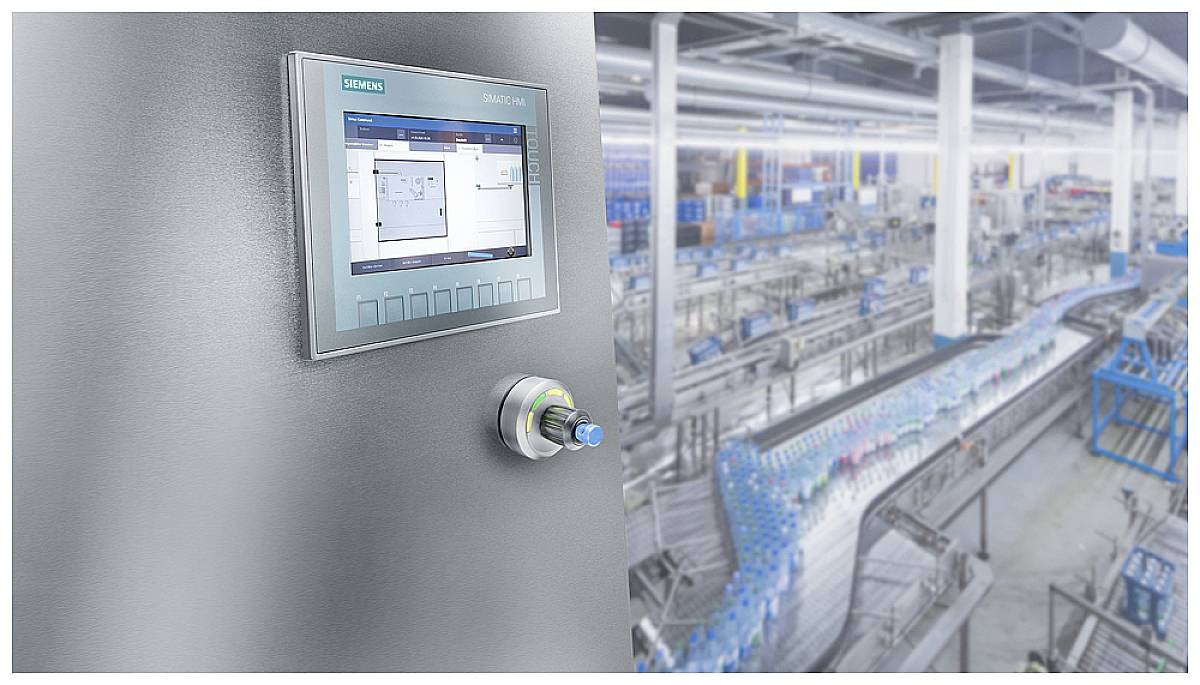

Production line in a factory focusing on a Siemens control unit. Various production stations and conveyor belts in the background.

Technical drawing of a cylindrical component with two views. Dimensions: Diameter 29.5 mm, length 59.1 mm, additional section 29.6 mm.

1/3

Image similar

Packaging type

Piece

Product type

Key switch

Functions

latch

Switch postions

IP rating

IP65

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting height 29.6 mm
Installation width: 29.5
Installation depth: 29.5 mm
Switch position for Key Removal: key removal in all 4 positions are possible
The number of positions: 4

Packaging type: Piece

Product type: Key switch

Casing/button colour: Black

Functions: latch

Switching angle: 3 x 45 °

Switch postions: 4

Material: Plastic

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 29.5 mm

Height: 29.5 mm

(Ø): 29.5 mm

Durability: 100000

Shape: Round

Recess diameter: 22.3 mm

: IP65

Type: 3SU1000-4WS10-0AA0

Content: 1 pc(s)

Dim: (Ø x H) 29.5 mm x 29.5 mm

RoHS-compliant: Yes

Weight: 0.0100 kg

: 22.3 mm

: 4

: FALSE

: FALSE

: Black

: IP65

: 29.5 mm

: 29.6 mm

: Plastic

: TRUE

: Round

: Other

: Black

: TRUE

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1737252 Siemens 3SU10004WS100AA0 3SU1000-4WS10-0AA0 Key switch 3 x 45 ° IP65 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 1737252 Siemens 3SU10004WS100AA0 3SU1000-4WS10-0AA0 Key switch 3 x 45 ° IP65 1 pc(s) Piece

Information

Information 1737252 Siemens 3SU10004WS100AA0 3SU1000-4WS10-0AA0 Key switch 3 x 45 ° IP65 1 pc(s) Piece

Description

Illuminated pushbutton, 22 mm, round, plastic, green, pushbutton, raised momentary contact type

Description

Illuminated pushbutton, 22 mm, round, plastic, green, pushbutton, raised momentary contact type
