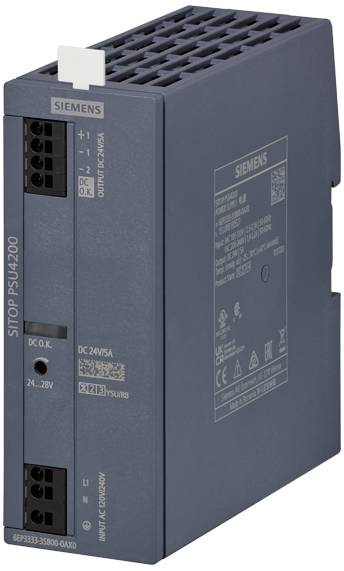

Siemens 6EP33333SB000AX0 Rail mounted PSU (DIN) 24 V 5 A No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Nominal input voltage
AC 100 V - 240 V
- Product type
Rail mounted PSU (DIN)
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Output type (power supply units)
Fixed voltage
- Phases
1
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Dim
(W x H) 125.0000 mm x 50.0000 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Manufacturer part #
6EP33333SB000AX0
- Content
1 pc(s)
- PSU features
Regulated
- Width
125.0000 mm
- Height
50.0000 mm
IP20
- Type
6EP3333-3SB00-0AX0
50
135 mm
125 mm
225 mm
50 mm
AC
120 W
IP20
5 A
24 V
5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044574 Siemens 6EP33333SB000AX0 Rail mounted PSU (DIN) 24 V 5 A No. of outputs:1 x Content 1 pc(s)
Description
SITOP PSU4200 1AC 24 V/5 A regulated power supply PSU4200 input: AC 120/240 V output: DC 24 V/5 A The 1-phase power supplies SITOP PSU4200 are designed for basic requirements in the industrial environment and offer all important functions at a reasonable price. The input with automatic voltage range switching enables the connection to various 1-phase supply networks. Due to their narrow width, the power supplies require a small space on the DIN rail and their good degree of efficiency, low heat loss is generated in the control cabinet. To further increase the 24 V availability, the SITOP PSU4200 power supplies can be combined with buffer, redundancy and selectivity modules. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
