Name: Siemens 8GK1122-1KA12 Enclosure (empty) 300 x 500 x 210 Steel White 1 pc(s) Piece
Brand: Siemens
SKU: 2862167

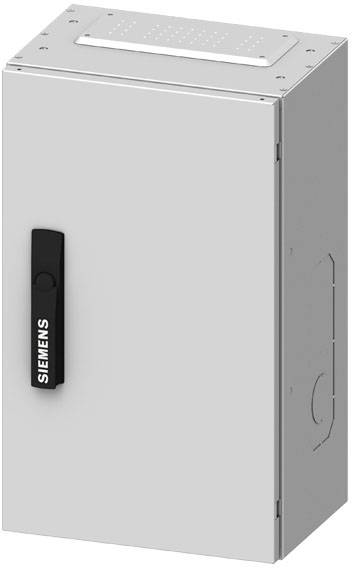

A metal control cabinet with a black handle, labelled 'Siemens'.

Image similar

Packaging type

Piece

Product type

Enclosure (empty)

Material

Steel

Width

300 mm

Height

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Alpha 400, wall cabinet, IP44 protection class 1 H=500mm, B=300mm RAL 9016

Our service for you

Technical specifications

Number of flange holes: 2Type of door: SingleEquipment protection class: Protection class 1Operating current / nominal value: 400 A.Installation depth: 210 mmIK09 protection classMaterial thickness / door/lid: 0.75 mmSurface treatment: Powder-coatedProduct component/cable entry: Yes

Packaging type: Piece

Product type: Enclosure (empty)

Features: with door

Material: Steel

: IP43

Factory colour: White

Type: Surface-mounted

Width: 300 mm

Height: 500 mm

Dimensions: 300 x 500 x 210 mm

Weight: 7 kg

Content: 1 pc(s)

Type: 8GK1122-1KA12

Dim: (W x H x D) 300 x 500 x 210 mm

RoHS-compliant: Yes

Manufacturer part #: 8GK11221KA12

Depth: 210 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2862167 Siemens 8GK1122-1KA12 Enclosure (empty) 300 x 500 x 210 Steel White 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2862167 Siemens 8GK1122-1KA12 Enclosure (empty) 300 x 500 x 210 Steel White 1 pc(s) Piece

Description

Alpha 400 DIN wall distributor surface-mounted H=500mm, B=300mm, T=210mm IP44, protection class 1 RAL 9016 The installation distributors Alpha - a complete system of wall and stand distributors for the installation of devices up to 1250 A. The Alpha distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and the modular structure, the device-specific installation kits can be integrated into different distribution versions. This makes planning and installation easier. The assembly is carried out individually and project-specific. The configuration software SIMARIS configuration supports the planning stage right through to the documentation of the power distribution units and installation distributors. Alpha - the system concept counts.

This text is machine translated.
