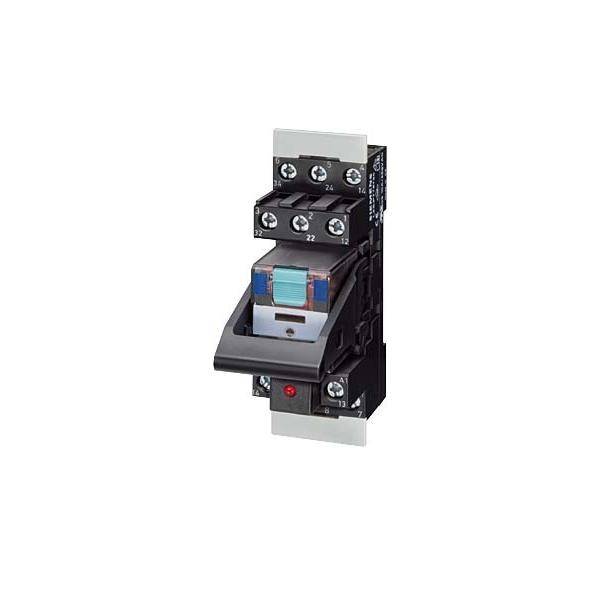

Siemens LZS:PT3A5S15 Plug-in relay 3 change-overs 5 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 92.43 / piece)
€
Technical specifications
- Mounting type: Snap-on mounting
- Power loss: 1 W
- Thermal current: 10 A
- To suit conductor cross-section: 1 mm²-2.5 mm²
- Wire stripping length: 8 mm
- Control supply voltage frequency: 50/60 Hz
- Type
LZS:PT3A5S15
- Connection
Screws
- Contact type
3 change-overs
- Contact material
AgNi 90/10
- Electrical lifespan
180000
- Durability
2.0E7
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
74 mm
- Width
28 mm
- Height
72 mm
- Dim
(W x H x D) 28 x 72 x 74 mm
- Content
5 pc(s)
- Product type
Plug-in relay
Documents & Downloads
Datasheet
Datasheet 1740360 Siemens LZS:PT3A5S15 Plug-in relay 3 change-overs 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1740360 Siemens LZS:PT3A5S15 Plug-in relay 3 change-overs 5 pc(s)
Description
Plug-in relay complete unit 4 W, 24 V AC LED module red Socket with logic isolation Spring-type terminal (push-in)
