Siemens LZS:RT4A4S15 Plug-in relay 2 change-overs 5 pc(s)

A black and orange electrical relay component with terminal connectors at the ends, used for controlling electrical devices.
An open electrical cabinet with various electrical components, including relays, switches and cables, used for controlling machinery.

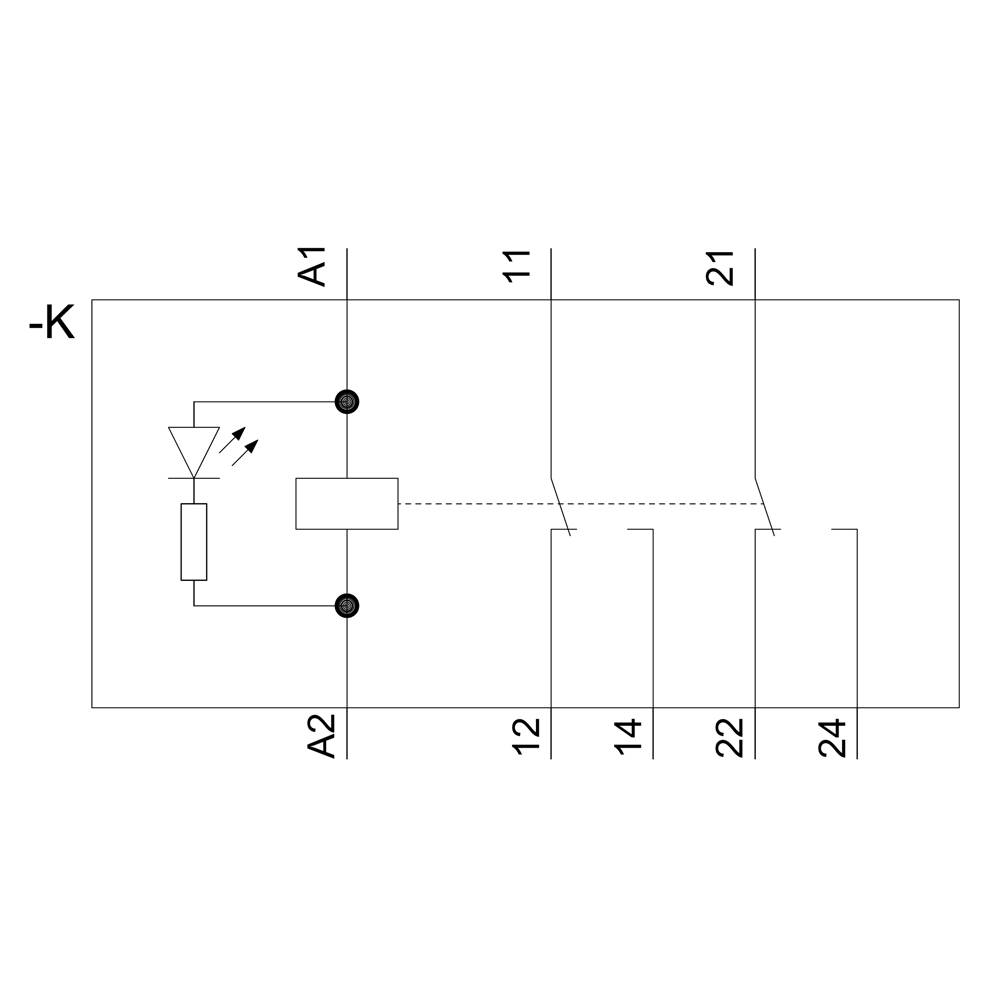

'Circuit diagram shows relay circuit with LED indication. Contacts A1, A2, 11, 12, 14, 21, 22, and 24 are marked.'

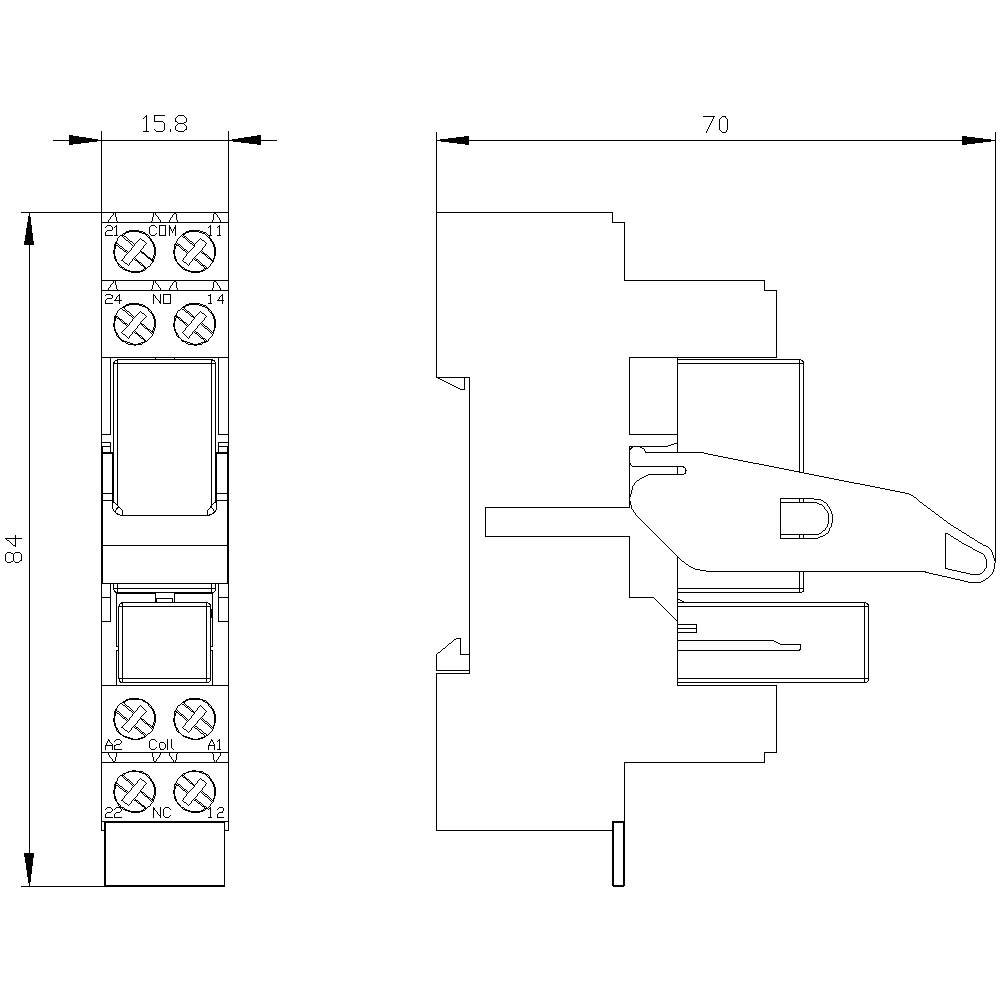

Technical drawing of a relay with dimensions: height 84 mm, width 15.8 mm, depth 70 mm. Triggers electrical circuits.
1/4
Image similar
Product type
Plug-in relay
Contact type
2 change-overs
Type
LZS:RT4A4S15
Connection
Screws
Contact material
AgNi 90/10
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 5 pc(s))
Total (€ 29.00 / piece)
€ 144.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: Snap-on mounting
  • Power loss: 1 W
  • Thermal current: 8 A
  • To suit conductor cross-section: 1 mm²-2.5 mm²
  • Wire stripping length: 8 mm
  • Control supply voltage frequency: 50/60 Hz
Product type

Plug-in relay

Type

LZS:RT4A4S15

Connection

Screws

Contact type

2 change-overs

Contact material

AgNi 90/10

Electrical lifespan

80000

Durability

5000000

Features

pluggable

IP20

Max. temperature

+70 °C

Min. temperature

-40 °C

Depth

78 mm

Width

15.5 mm

Height

71 mm

Dim

(W x H x D) 15.5 x 71 x 78 mm

Content

5 pc(s)

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1740402 Siemens LZS:RT4A4S15 Plug-in relay 2 change-overs 5 pc(s)

User & Safety Instructions

User & Safety Instructions 1740402 Siemens LZS:RT4A4S15 Plug-in relay 2 change-overs 5 pc(s)

Description

SIVACON S4 Floor panel Degree of protection IP4X With cable entry Width 400 mm Depth 400 mm
