ElectromechanicsRelaysCoupling Relays

Siemens LZX:PT580730 Plug-in relay 4 change-overs 1 pc(s)

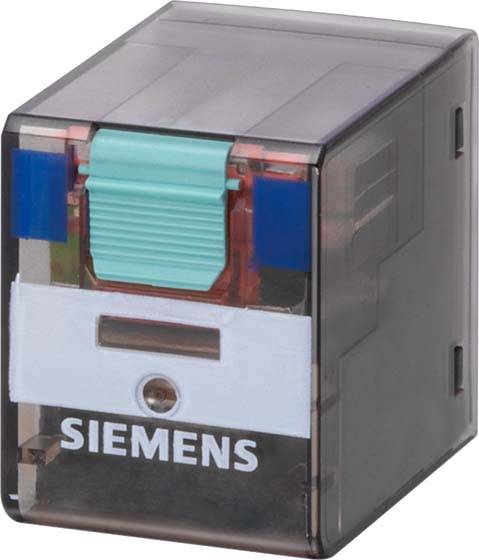

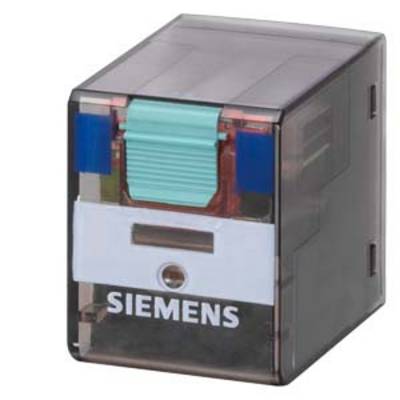

A rectangular Siemens relay with a transparent casing and green button for controlling electrical signals.
An open electrical control cabinet with various electronic components and cables used for controlling industrial processes.

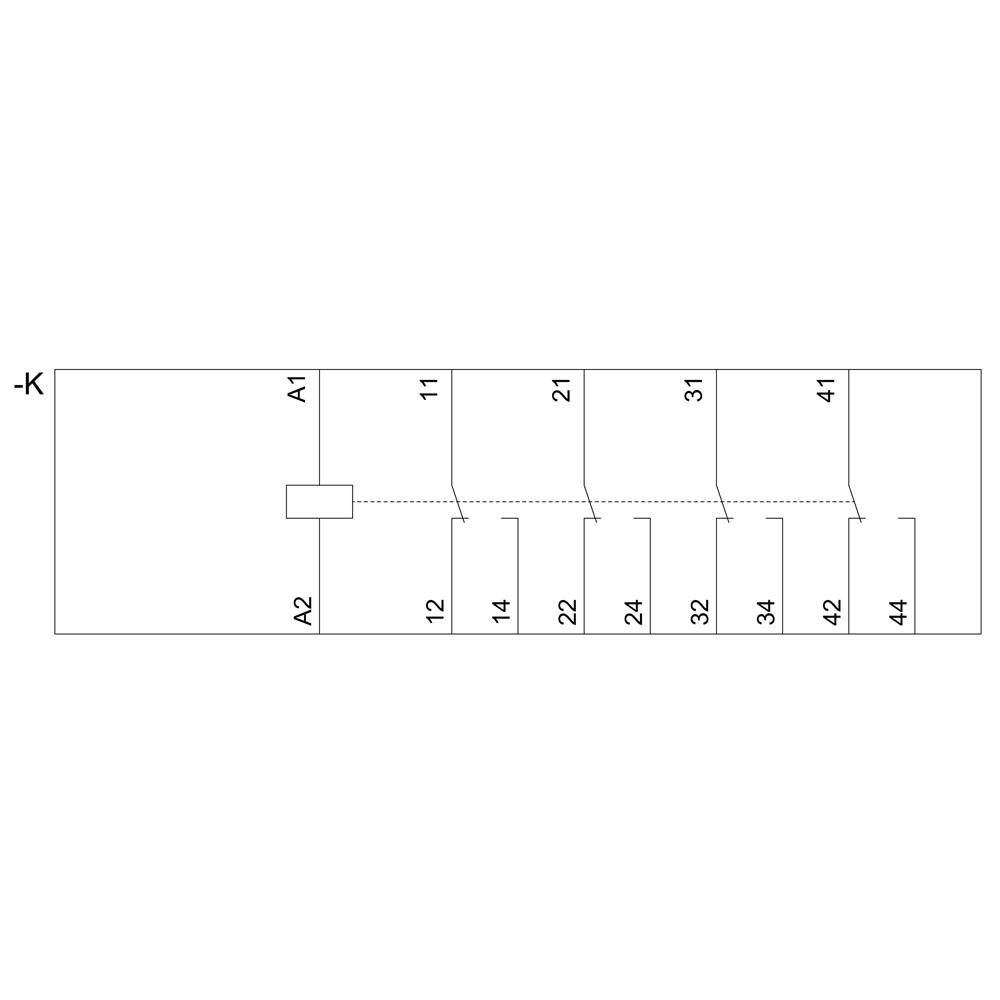

Circuit diagram shows a matrix with rows A1, A2 and columns 11-44 to represent an electrical connection.

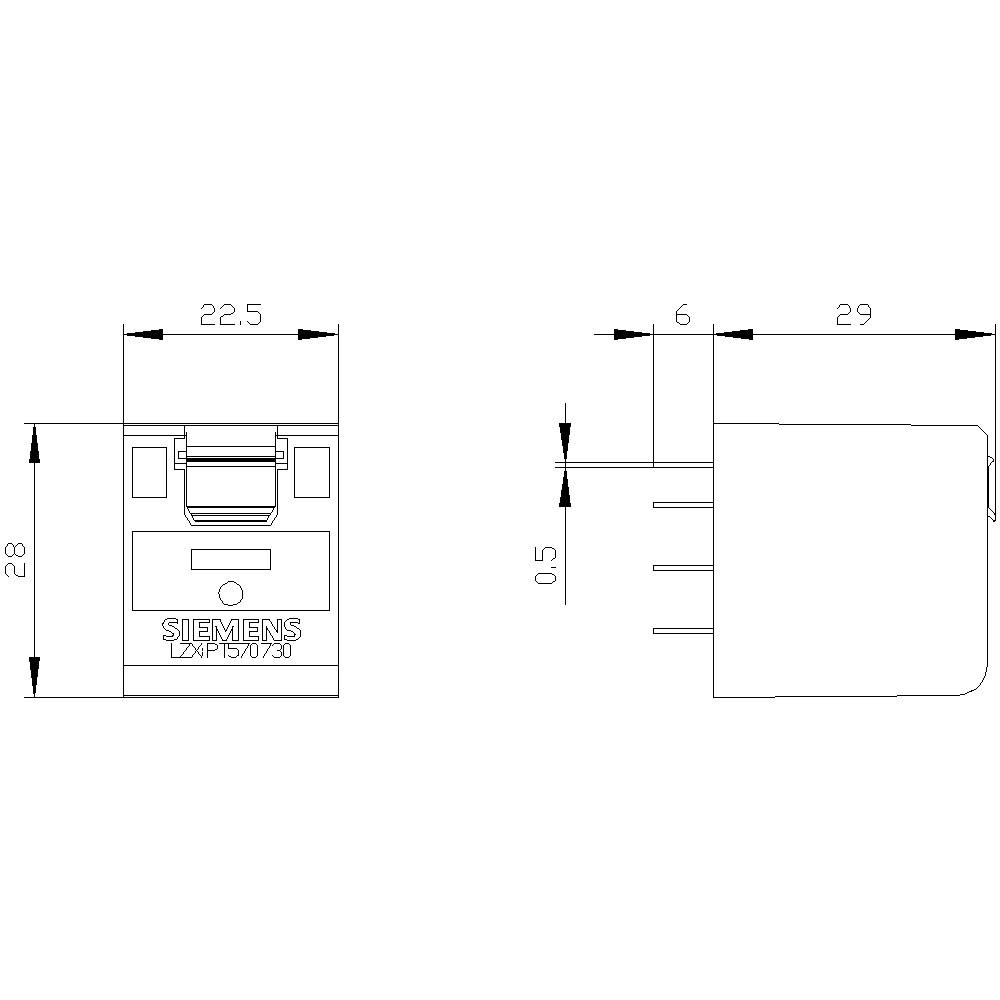

Technical drawing of a Siemens component. Left: Front view with dimensions 28x22.5 mm. Right: Side view, 29 mm long.
1/4
Image similar
Product type
Plug-in relay
Contact type
4 change-overs
Type
LZX:PT580730
Contact material
AgNi 90/10
Electrical lifespan
250000
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: socket mounting
  • Execution of the switching function: Switch
  • Control supply voltage 230 V
  • Control supply voltage frequency: 50/60 Hz
  • Thermal current 6 A
  • Power loss: 1 W
Product type

Plug-in relay

Type

LZX:PT580730

Contact type

4 change-overs

Contact material

AgNi 90/10

Electrical lifespan

250000

Durability

2.0E7

Max. temperature

+70 °C

Min. temperature

-40 °C

Depth

35 mm

Width

22.5 mm

Height

28 mm

Dim

(W x H x D) 22.5 x 28 x 35 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1740438 Siemens LZX:PT580730 Plug-in relay 4 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1740438 Siemens LZX:PT580730 Plug-in relay 4 change-overs 1 pc(s)

Description

Integrated signal lamp, single flash light, w. built-in electronic flash, green, 24 V AC/DC, Diameter 70 mm
