Active ComponentsOptoelectronicsLEDs & AccessoriesLED Arrays

Signal Construct LED component Green (L x W x H) 15 x 5 x 14 mm Bulk

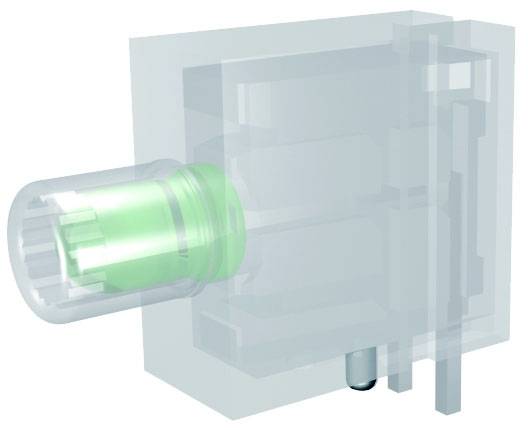

A schematic diagram shows a transparent machine containing a green-glowing element, presumably a crucial component.

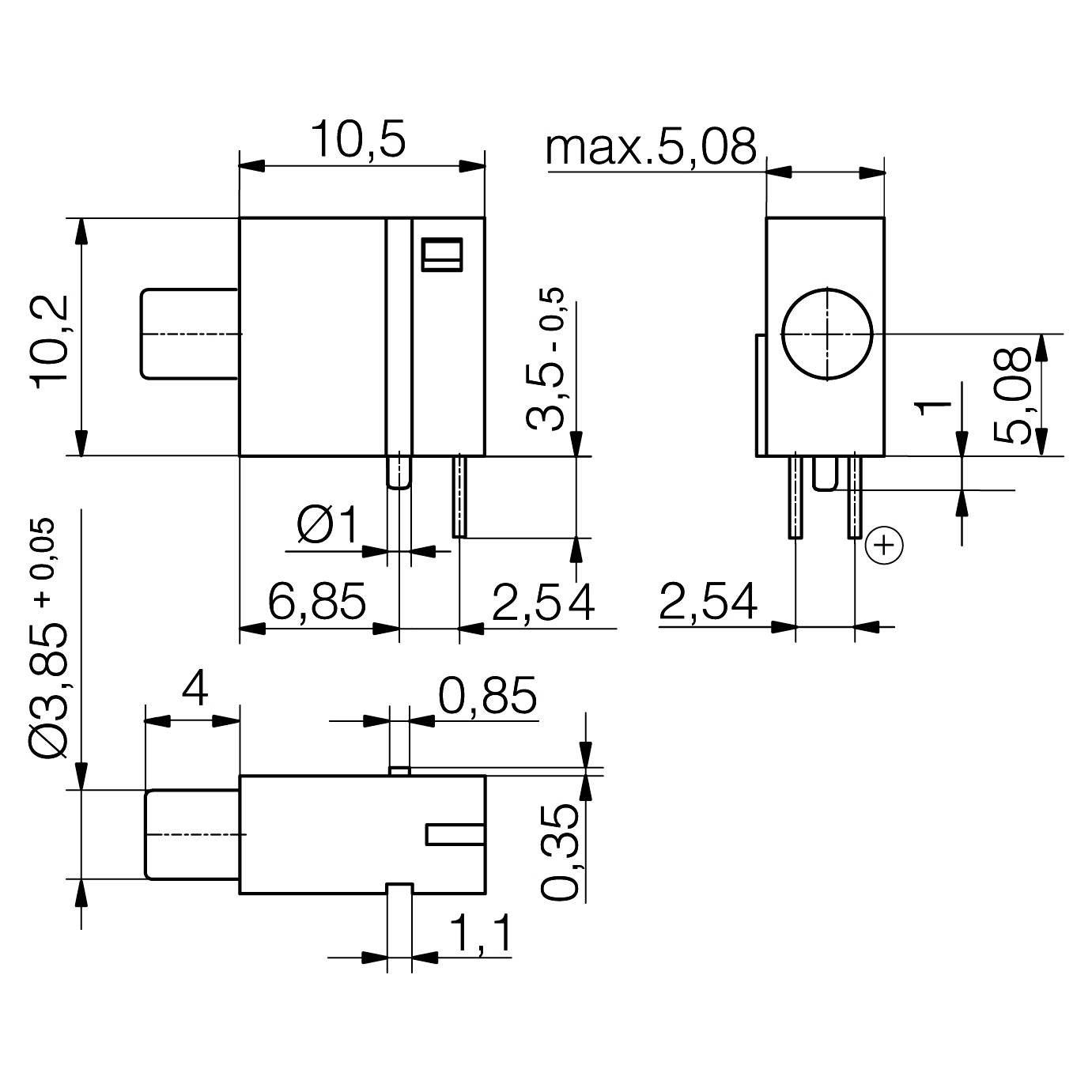

Drawing of an electrical component with precise dimensions: height 10.2 mm, width 10.5 mm, various diameters and distances indicated.
1/2
Packaging type
Bulk
Product type
LED component
CS
2.54 mm
Factory colour
Green
Case colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
55 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 3
Total (€ 1.49 / piece)
€ 4.47
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Factory colour

Green

Packaging type

Bulk

Product type

LED component

CS

2.54 mm

Case colour

Black

Dim

(L x W x H) 15 x 5 x 14 mm

Radiation angle

40°

LEDs

1

Type (LEDs)

Diffused

Forward voltage U(F)

2.2 V

Forward current I(F)

20 mA

Moisture Sensitiviy Level (MSL)

1

Width

5 mm

Height

14 mm

Length

15 mm

RoHS-compliant

Yes

Wavelength

568 nm

Documents & Downloads

Datasheet

Datasheet 2435432 Signal Construct LED component Green (L x W x H) 15 x 5 x 14 mm Bulk

User & Safety Instructions

User & Safety Instructions 2435432 Signal Construct LED component Green (L x W x H) 15 x 5 x 14 mm Bulk

Description

LED component for direct soldering in
Printed circuit boards. Optimum ESD strength
Through integrated protective cap. Dimensions 14.5 x 10 x 5.4 mm
ESD-withstand voltage: 15kV
Soldering temperature 260°/5 sec.

This text is machine translated.
