A white-beige rectangular object with red squares and long, narrow, silver stripes underneath.

Image similar

A white-beige rectangular object with red squares and long, narrow, silver stripes underneath.

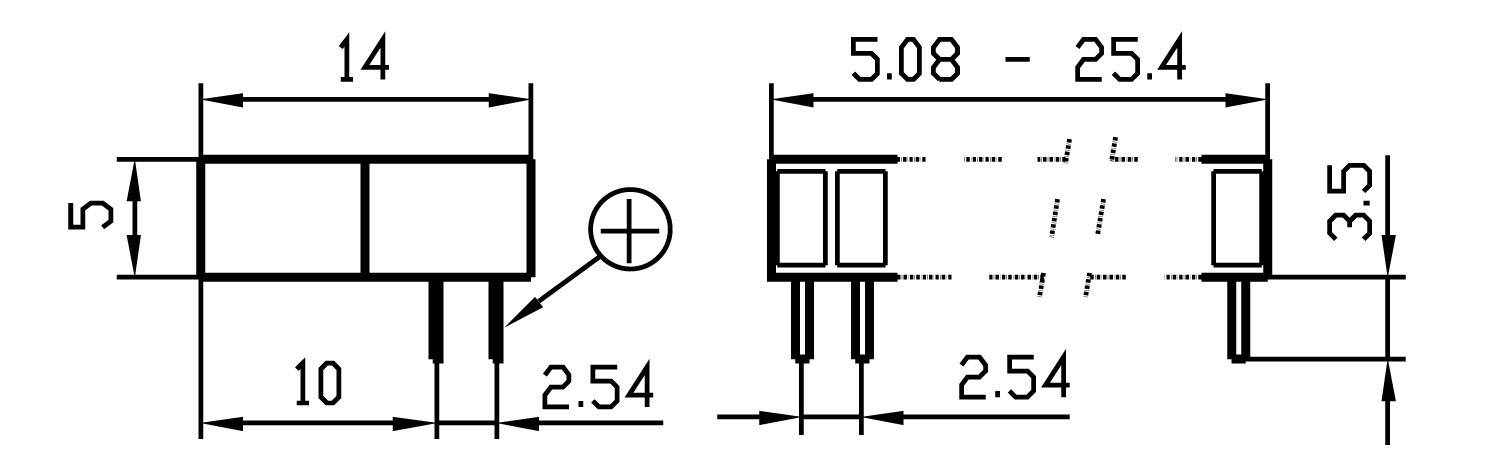

Technical drawing of an electrical connector with dimensions: width 14 mm, height 5 mm, pin spacing 2.54 mm, overall length 25.4 mm.

1/2

Image similar

Signal Construct

Our service for you

Datasheet (PDF)

European union

Fast track dispatch on Mon, 14 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.03 / piece)

€ 4.03

plus VAT.

Report legal concerns

Technical specifications

Factory colour: Red

Type: ZAEW 1030

Dim: (L x W x H) 25.4 x 14 x 5 mm

Height: 5 mm

Length: 25.4 mm

Width: 14 mm

Wavelength: 628 nm

CS: 2.54 mm

Forward current I(F): 10 mA

Radiation angle: 104°

LEDs: 10

RoHS-compliant: Yes

Product type: LED linear array

Documents & Downloads

Datasheet

European union

Datasheet 150474 Signal Construct ZAEW 1030 LED linear array 10x Red (L x W x H) 25.4 x 14 x 5 mm

Description

Overexposure is prevented by use of a light shaft. Precise pin positioning and V-shaped contact tips ensure problem-free mounting.
