Name: Skross 1.500268-E Travel adapter
Brand: Skross
SKU: 3639903
Availability: InStock

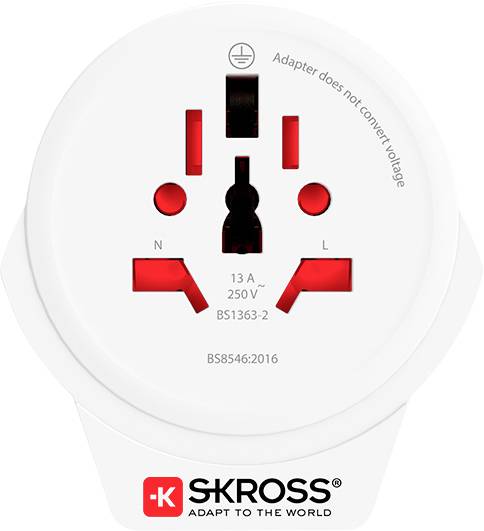

White SKROSS travel adapter showing multiple pin sockets, labeled '13 A, 250 V'. Note: 'Adapter does not convert voltage'.

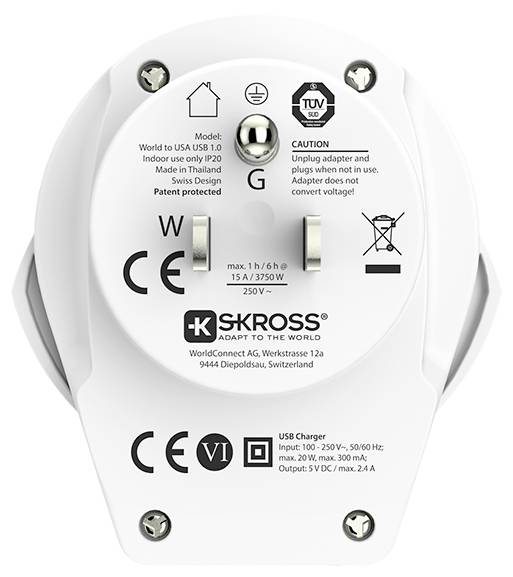

The image shows the bottom view of a white universal power plug adapter by SKROSS, detailing specifications and safety symbols.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

World to US USB country travel adapter

Designed in Switzerland
Suitable for devices with grounded & unearthed plugs (2- & 3-pin) and USB devices
Input plug: Euro, Australia/China, UK, USA/Japan, Switzerland, Italy, Brazil
Output plug USA
Input voltage 100 V – 250 V, 50/60 Hz
Max. Load 15 A
Power rating: E.g. 100 V – 1500 W / 250 V – 3750 W.
USB type-A output 5.0 V DC/max. 2.4 A, max. 12.0 W total
Average Active Efficiency: 81.8% Low Load Efficiency (10%): 76.3% Idle Power Consumption: 0.05 W.
Does not convert voltage

Technical specifications

Product type: Travel adapter

For devices from: Europe
Australia
China
United Kingdom
USA
Japan
Switzerland
Brazil

USB port: Yes

Operating voltage: 100 VAC – 250 VAC

Destination: USA

Max. nominal current: 15 A

For mains outlet: B

Mains plug type (on device): C
I
G
J
L
N
A
B

For products from: Australia, Brazil, China, Europe, Japan, Switzerland, United Kingdom, USA

Destination: USA

Dim: (W x H x D) 65 x 59 x 70 mm

Width: 65 mm

Height: 59 mm

Factory colour: White

Depth: 70 mm

No. of USB ports: 1 x

: 3750 W

Power supply (details): 100-250 V

Weight: 60 g

UKCA: yes

USB charging port: yes

Quantity: 1

Master (outer) case gross weight: 2.29 kg

USB output voltage: 5 V

Master (outer) case length: 360 mm

USB port current: 2.4 A

Master (outer) case height: 210 mm

Master (outer) case width: 250 mm

Current rating: 15 A

Package weight: 88 g

Documents & Downloads

Datasheet

Datasheet 3639903 Skross 1.500268-E Travel adapter

User & Safety Instructions

User & Safety Instructions 3639903 Skross 1.500268-E Travel adapter

Description

The US socket standard is used in more than 50 destinations worldwide. Our Skross® World to US USB country travel adapter offers travellers secure, reliable and easy connections when connecting 2-pin and 3-pin devices while enabling the effective charging of a USB device.

This text is machine translated.
