Smartwin SMMT050800480H-A23 Module 12.7 cm (5 inch) 800 x 480 Pixel Backlighting

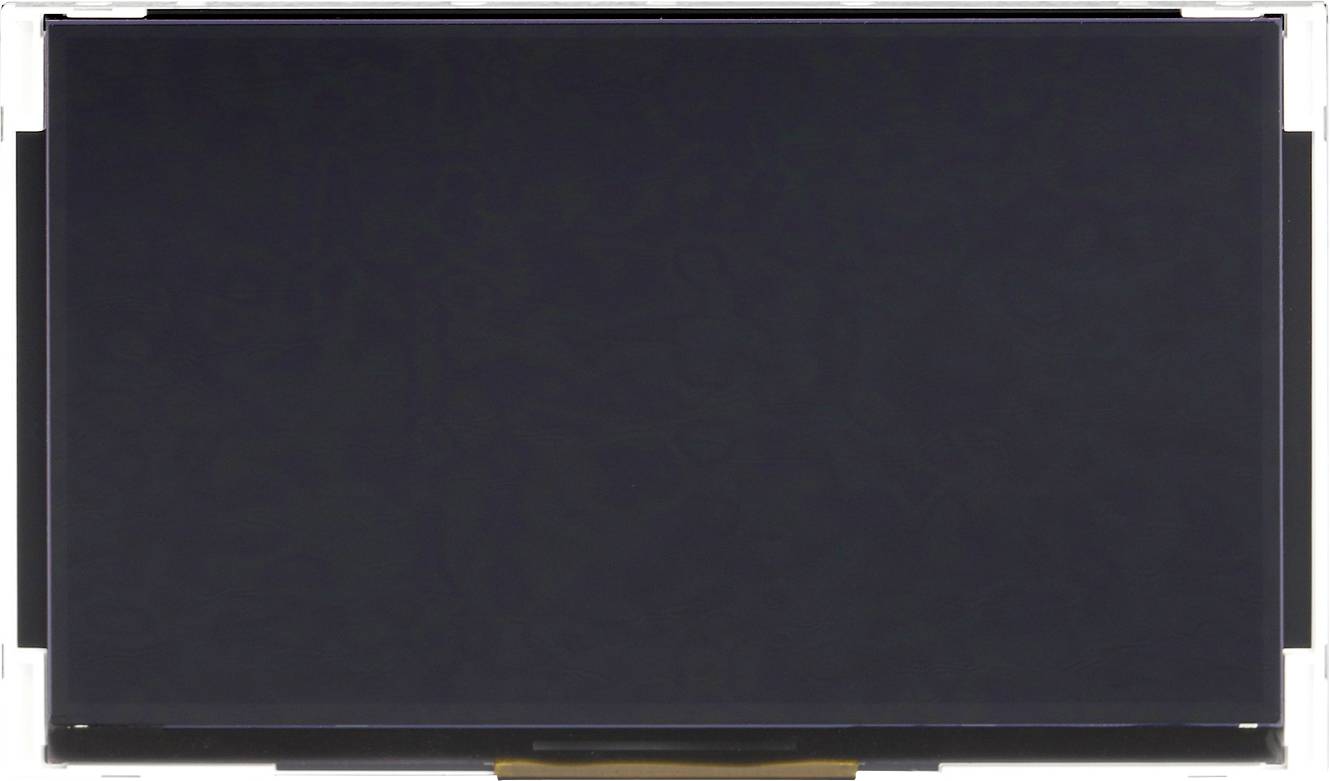

A black screen is centred in the middle of the image. No further details or information are visible.

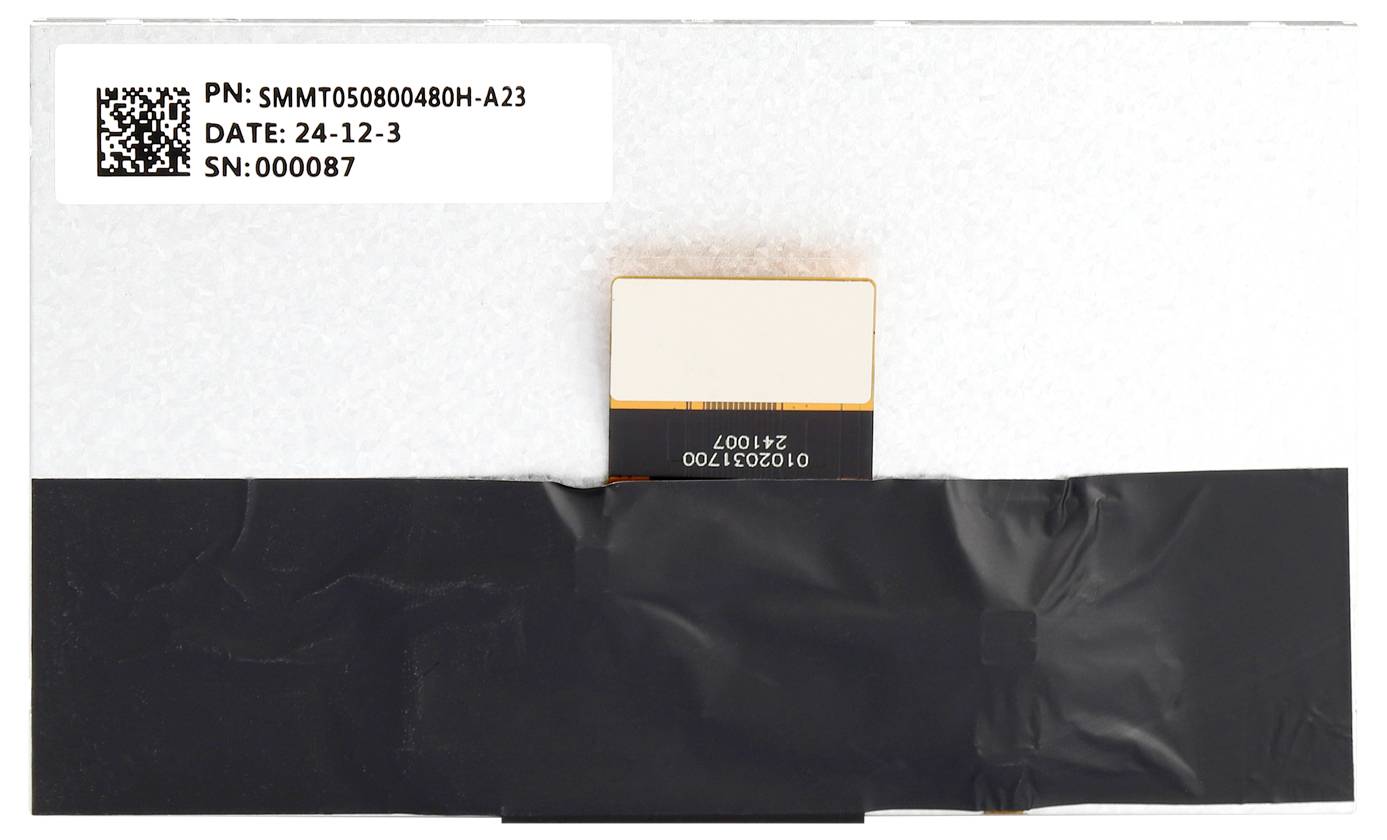

The back of an electronic device with a flat ribbon cable and label: 'PN: SMMT05000480H-A23, DATE: 24-12-3, SN: 000087'.

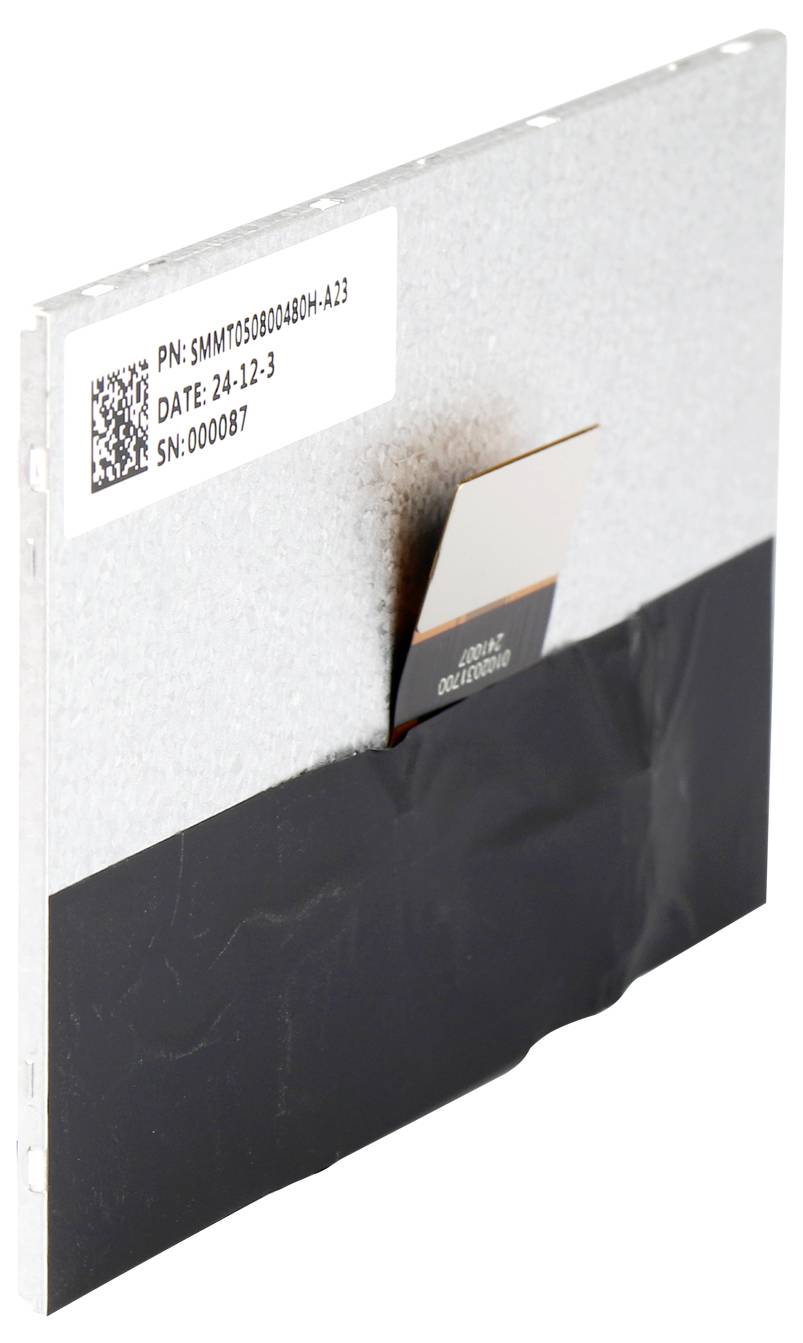

A silver electronic component with a black band on its underside. A label displays the model number, date, and serial number.
1/3
EAN:
Part number:
Item no:
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 89.99 / piece)
€ 89.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • Module width: 120.20 mm
  • Module height: 75.30 mm
  • Module depth: 2.81 mm
  • Min. Verso voltage 3 V / DC
  • Verso supply voltage max. 3.6 V/DC
Product type

Display

Display technology

LCD

Display (cm)

12.7 cm

Screen size diagonal (inches)

5 inch

Display resolution

800 x 480 Pixel

Features

Backlighting

Brightness (max.)

1000 cd/m²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3394679 Smartwin SMMT050800480H-A23 Module 12.7 cm (5 inch) 800 x 480 Pixel Backlighting

Description

Hints

Recommended board: LD_C_W_S3_1A Recommended connector: DF23C-50DP-0.5V
