Softing CTK1015 CableTracker Network ID Kit
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 151.25 / piece)
€
Highlights & Details
Softing CTK1015 CableTracker Network ID Kit
- Cable tracking, even in walls or cable channels
- For RJ-45,11,12
- Crocodile clips
Technical specifications
- Signal frequency: Lo Tone - 1kHz; Hi Tone - 8kHz
- Receiver frequency: Broadband 100Hz-10kHz
- Operating temperature 0 to 50 °C
- Storage temperature -10 to 55 °C.
- Product type
Cable locator
- Dim
(L x W x H) 203 x 36 x 38 mm
- Weight
0.500 kg
- Width
36 mm
- Height
38 mm
- Length
203 mm
- Type
CTK1015
- Transmitter dimensions
(L x W x H) 76 x 66 x 36 mm
- Power supply (details)
2 x 9 V battery pack
Documents & Downloads
Datasheet
Datasheet 101482 Softing CTK1015 CableTracker Network ID Kit
User & Safety Instructions
User & Safety Instructions 101482 Softing CTK1015 CableTracker Network ID Kit
Description
When wiring a building, knowing which cable leads to which connection and where cabling runs is very important. The cable tracker consists of a signal generator and a highly sensitive receiver. The signaller is connected and sends a low-frequency signal through the cable. The receiver follows the cable using radiation. The signal generator can also activate the port LED of the hub or switch by flashing and thus enables quick mapping of the connection.
Features
- Connections for RJ-45,11,12 and crocodile clips
- Port identification at Ethernet hubs, switches and routers.
Scope of delivery

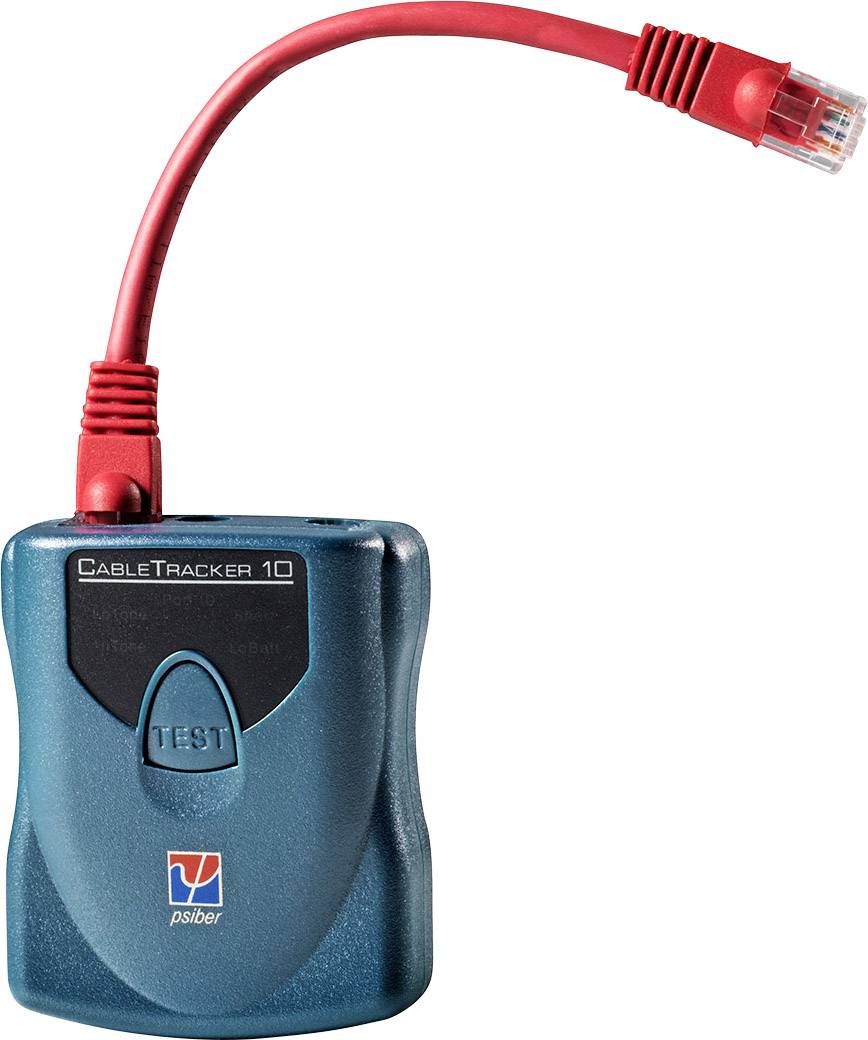

- Signal generator (CT10)

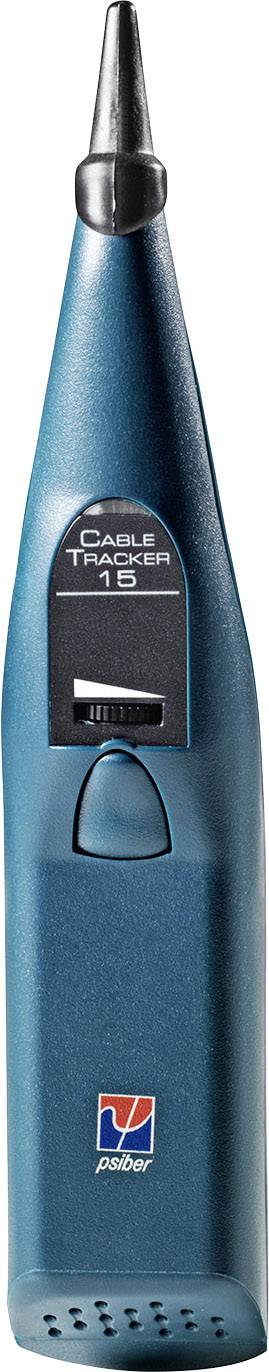

- Tracking receiver (CT15)
- Universal crocodile clips
- RJ-45 patch cable
- 9 V battery
- User manual.
