Chauvin Arnoux CA 6683 Cable locator Cable tracking, Location
EAN:
Part number:
Item no:
Number
Total (€ 500.00 / piece)
€ 500.00
plus VAT.
14 days return policy included
Highlights & Details

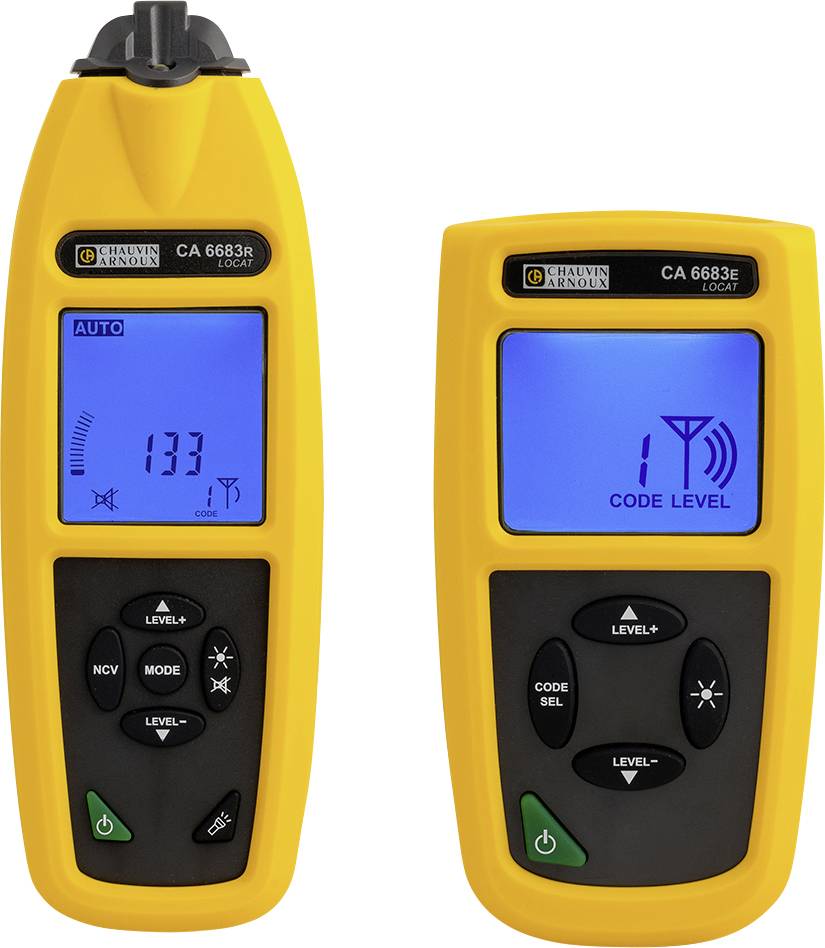

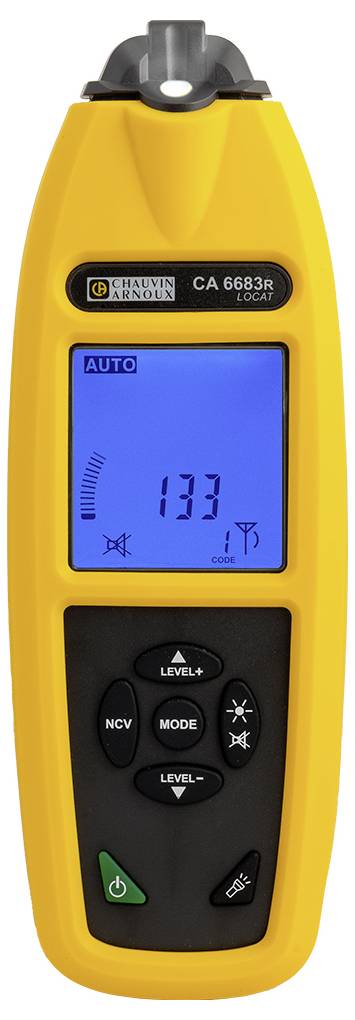

CA 6683 LOCAT cable detector
- Cable detector comprising of transmitter and receiver for applications of live and voltage-free conductors
- Locating and tracking of lines and sockets
- Identification of the mains voltage and search of interruptions in the circuit
- Locating fuses, short circuits and line interruptions
- Tracing underground circles
- Fault localization in floor heaters
- Locating metallic heating pipes or water pipes

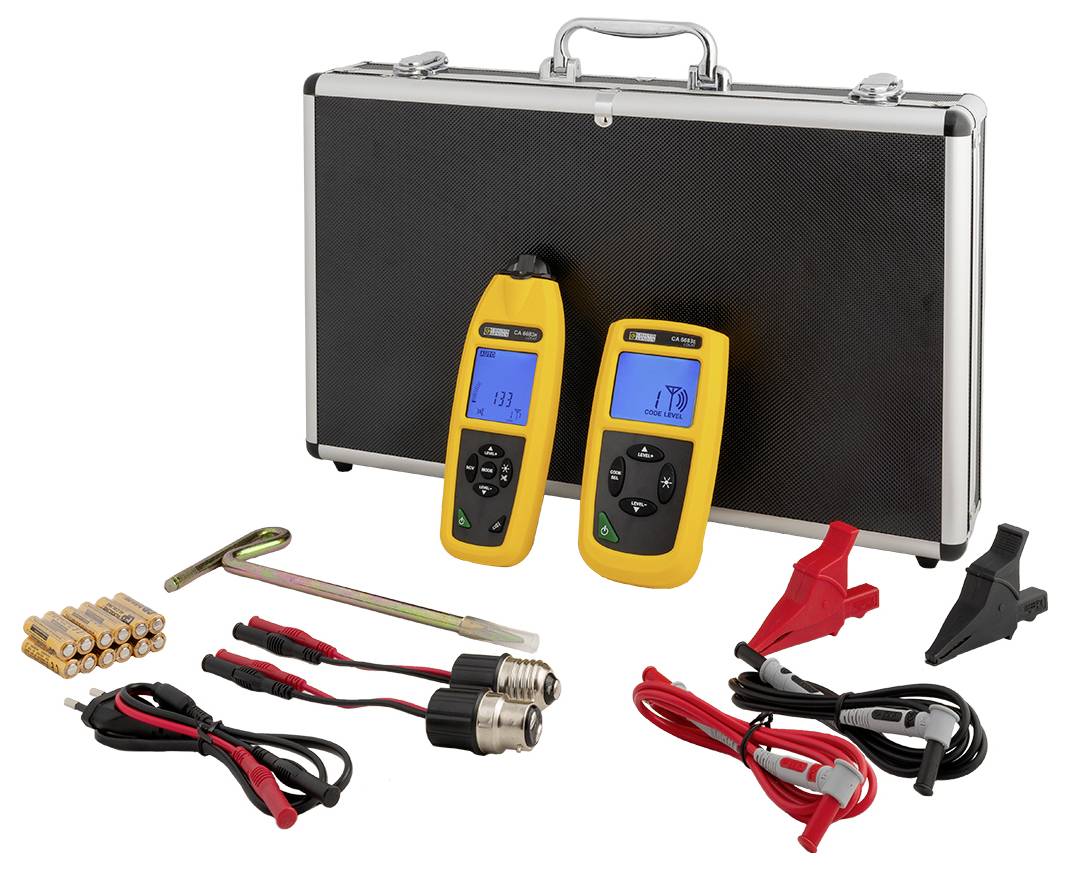

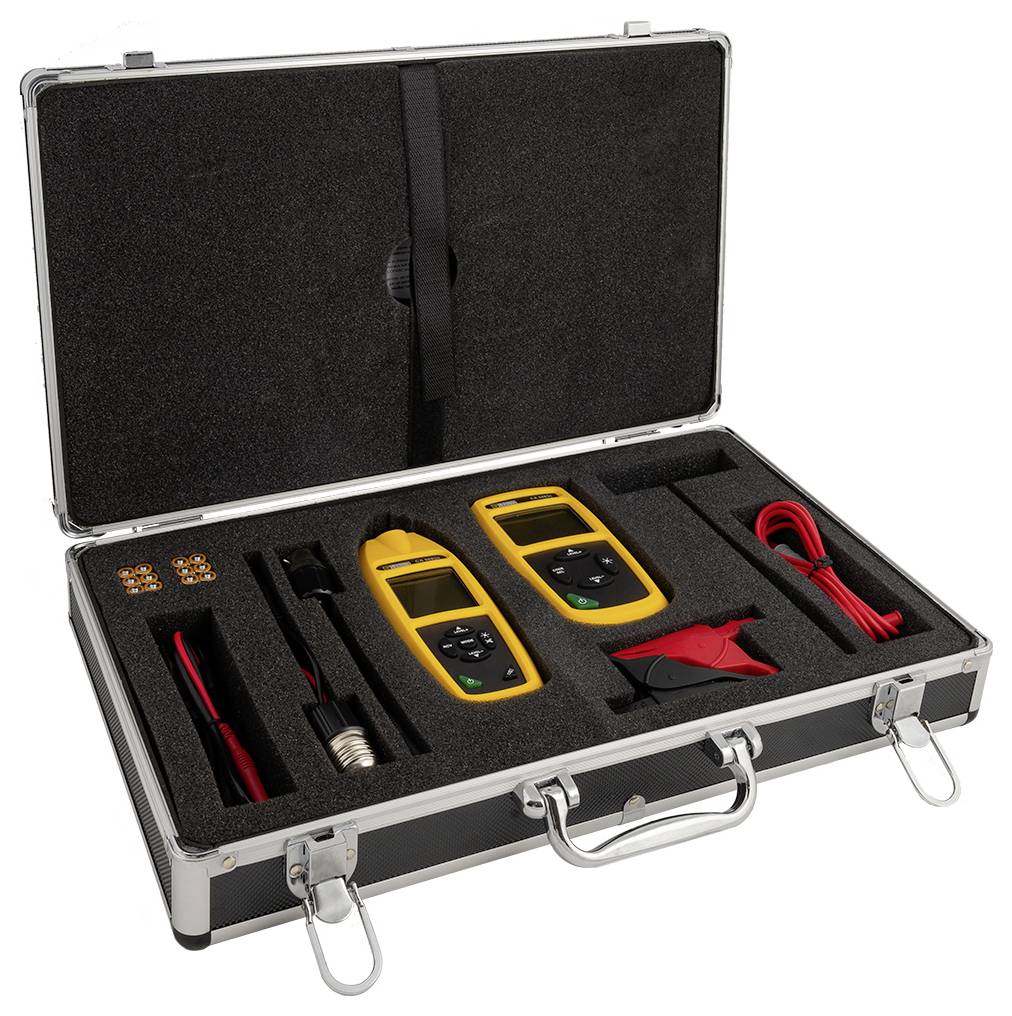

- Supplied with: 1 transmitter C.A 6683E and 1 receiver C.A 6683R, 1 transport case, 1 set of test leads (red/black insulated banana plugs Ø4 mm, straight/angled), 1 set with 2 alligator clips, 1 ground spike, 2x6 batteries 1 V AAA, 1 measuring adapter for B22 socket (bayonet), 1 adapter for E27 socket (screw.), 1.5 adapters for mains sockets, 1 operating instructions in 5 languages
Technical specifications
- Many possible applications

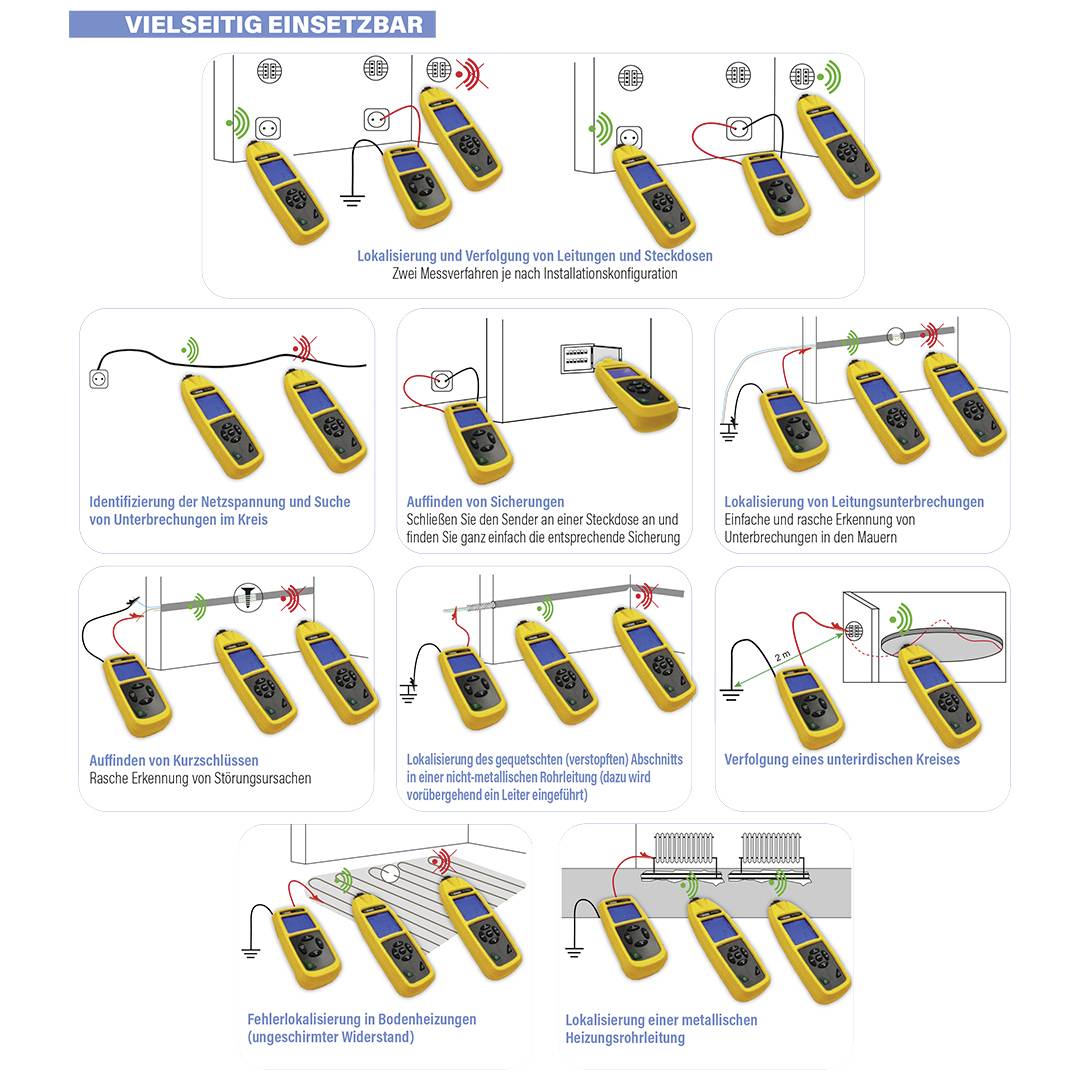

- Localization and tracking of cables and sockets via two measurement methods, depending on installation configuration.
- Identification of the mains voltage and search of interruptions in the circuit.
- Locating fuses: Connect the transmitter to a power socket to find the appropriate fuse.
- Localization of line interruptions: Simple and rapid detection of interruptions in the walls.
- Short circuit detection: Rapid detection of causes of faults.
- Locate the pinched (clogged) section in a non-metallic pipe (a conductor is temporarily inserted for this purpose).
- Tracing an underground circle.
- Fault localization in floor heaters (unshielded resistor).
- Locating a metallic heating pipe.
- Dimensions & weight transmitter: 160 x 84 x 40 mm / approx. 350 g.
- Dimensions & weight receiver: 198 x 67 x 36 mm / approx. 310 g.
- Information displayed: Signal amplitude (number + scale), reception sensitivity, transmission code and transmission power, battery condition, dangerous voltage present.
- Localization depth with transmitter:
- - Single-pole application: Typical. 2 m
- - Two-pole application: Typical 0.5 m
- - Simple loop connection: Up to 2.5 m.
- Product type
Cable locator
- Function
Cable tracking
Location
- Optical display
Yes
- Acoustic signal
Yes
- Display
Digital
LCD
- Weight (transmitter)
350 g
- Reading category
CAT III 300 V
- Type
CA 6683
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436212 Chauvin Arnoux CA 6683 Cable locator Cable tracking, Location
Warranty Terms
Warranty Terms 3436212 Chauvin Arnoux CA 6683 Cable locator Cable tracking, Location
Description
Efficient localization saves time and reduces the cost of damage due to error detection.
The CA 6683 LOCAT is an indispensable device for all maintenance, renovation and improvement work in residential buildings.
It is easy to use and allows to quickly locate a power cable, a metallic water or heating pipe in the walls or in the ground.
In an electrical system that is both live and voltage-free, you can use it to identify sockets, switches, circuit breakers or fuses that are connected to the circuit. In the event of an error, it allows the location of a short circuit, an interruption or a disconnection.
The CA 6683 LOCAT consists of a transmitter and a receiver that both have a large, clear display with background lighting and an automatic setting of the transmission power/sensitivity for an easy and intuitive operation.
The transmitter informs about the danger when there is voltage and indicates its value.
The transmission signal has a digital coding to avoid interference and its strength can be manually adjusted to refine the detection.
In complex cases, the setting of the identification code makes possible the shared use of up to 7 transmitters.
The receiver possesses an integrated torch, a silent mode and an automatic or manually adjustable sensitivity for a better selectivity, in order to be able to adjust to all situations on the construction site.
The receiver can also be used alone to locate a live conductor connected to the active conductor (phase) of the power supply.
Main applications :
Electricity :
• Follow the cable in a wall
• Locate underground conductors
• Locate cable guides in a house
• Determine the location of an open circuit
• Locate a short circuit
• A socket, a switch, a junction box, a fuse, an isolating switch, ...
Sanitary/heating systems :
• Locate pipes (copper, steel, etc.)
• Follow a plastic pipe
• Determine the location of a blockage
Telekom
• Cable marking
• Follow a telephone line
• Identification of a pair of wires in a bundle of cables
Strengths
• Easy to use
• Works on live and voltage-free lines
• Supplied complete with extensive accessories, ready to use immediately
This text is machine translated.
The CA 6683 LOCAT is an indispensable device for all maintenance, renovation and improvement work in residential buildings.
It is easy to use and allows to quickly locate a power cable, a metallic water or heating pipe in the walls or in the ground.
In an electrical system that is both live and voltage-free, you can use it to identify sockets, switches, circuit breakers or fuses that are connected to the circuit. In the event of an error, it allows the location of a short circuit, an interruption or a disconnection.
The CA 6683 LOCAT consists of a transmitter and a receiver that both have a large, clear display with background lighting and an automatic setting of the transmission power/sensitivity for an easy and intuitive operation.
The transmitter informs about the danger when there is voltage and indicates its value.
The transmission signal has a digital coding to avoid interference and its strength can be manually adjusted to refine the detection.
In complex cases, the setting of the identification code makes possible the shared use of up to 7 transmitters.
The receiver possesses an integrated torch, a silent mode and an automatic or manually adjustable sensitivity for a better selectivity, in order to be able to adjust to all situations on the construction site.
The receiver can also be used alone to locate a live conductor connected to the active conductor (phase) of the power supply.
Main applications :
Electricity :
• Follow the cable in a wall
• Locate underground conductors
• Locate cable guides in a house
• Determine the location of an open circuit
• Locate a short circuit
• A socket, a switch, a junction box, a fuse, an isolating switch, ...
Sanitary/heating systems :
• Locate pipes (copper, steel, etc.)
• Follow a plastic pipe
• Determine the location of a blockage
Telekom
• Cable marking
• Follow a telephone line
• Identification of a pair of wires in a bundle of cables
Strengths
• Easy to use
• Works on live and voltage-free lines
• Supplied complete with extensive accessories, ready to use immediately
This text is machine translated.

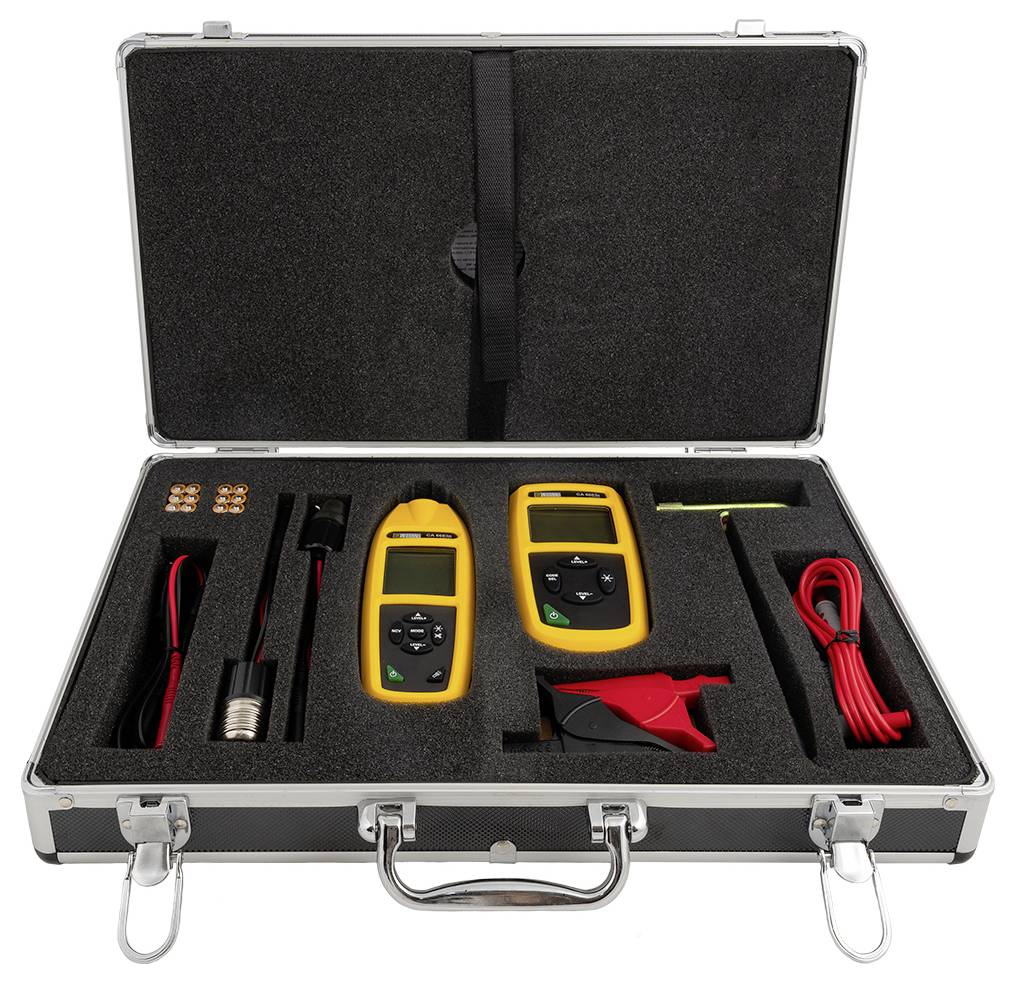

Scope of delivery
- 1 transmitter CA 6683E and 1 receiver CA 6683R
- 1 transport bag.
- 1 set of test leads (red/black)
- 1 set of alligator clamps (red/black)
- 1 Ground spike
- 2 x 6 batteries 1.5 V AAA or LR03
- 1 Measuring adapter for B22 socket (bayonet)
- 1 Adapters for E27 socket (screw.)
- 1 adapters for power sockets
- 1 operating instructions in 5 languages
