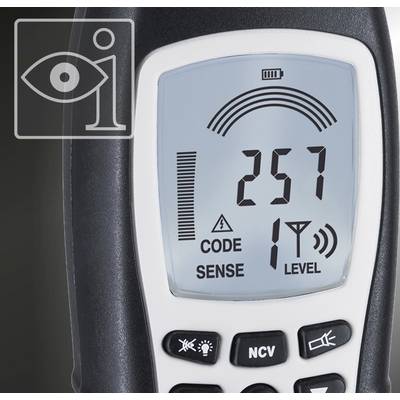

A digital measuring device displays 'Code 1, Sense, Level' along with a large number 257 on the display. Contains sensor buttons at the bottom.

Digital display shows 'Volt 230 120 50 12', 'CODE', symbol with aerial and '1 LEVEL'. Orange button beside it.

Bottle of eye wash solution, depicted with an eye symbol. Used for rapid response in the event of chemical contact with the eyes.

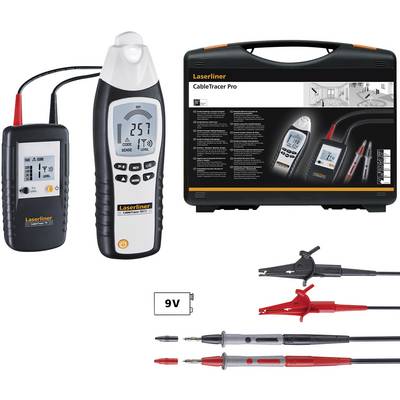

'Laserliner CableTracer Pro' with receiver, transmitter, case and accessories for cable tracing. Device displays show numbers and symbols.

1/5

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 340.34 / piece)

€ 340.34

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Transmitter CABLE TRACER TX
Output signal: 125 kHz Rated: 12...250 V measuring range 12…400 V frequency range: 0 - 60 Hz
Signal codes up to 7 different selectable codes
The overvoltage category CATIII; 300 V, contamination degree 2 Power supply 1x 9 V Block, IEC LR6 alkaline dimensions (W x H x D) 68 x 130 x 32 mm
Weight 200 g
Receiver Cable Tracer RECV
Measuring ranges: Voltage Search: 0 - 0.4 m
Measuring depth single-pole measurement: 0 - 2 m
Measuring depth two-pole measurement: 0 - 0.5 m
Power supply 1x 9 V Block, IEC LR6 alkaline dimensions (W x H x D) 59 x 192 x 37 mm
Weight 240 g

Function: Cable tracking
Continuity
Break

Display: LCD

Type: CableTracer Pro (TX+RECV)

Documents & Downloads

Datasheet

Datasheet 1052676 Laserliner CableTracer Pro (TX+RECV) Cable tracking, Continuity, Break

User & Safety Instructions

User & Safety Instructions 1052676 Laserliner CableTracer Pro (TX+RECV) Cable tracking, Continuity, Break

Warranty Terms

Warranty Terms 1052676 Laserliner CableTracer Pro (TX+RECV) Cable tracking, Continuity, Break

Description

Contact-less follow-up of the transmission signal by the receiver. · Locates electric cable, fuses, circuit breakers, metallic pipes (e.g. heating pipes), and much more. · Locates breaks in existing installations · Can be used with and without mains voltage · High frequency of 125 kHz · Direct and alternating voltage display · Signal coding enables the use of max. 7 transmitters and a receiver · Built-in AC voltage detector · Permanent AC-voltage warning · Integrated measuring point lighting · Clear, illuminated LC display.

This text is machine translated.

Scope of delivery

Cable Tracer Pro including carrying case
The transmitter TX
Receiver RECV
Connection cable
Probes
Measuring clips
Batteries
