Kurth Electronic KE301 Cable locator Continuity, Location, Cable tracking, Break
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14 days return policy included
Highlights & Details
Cable detector and cable detector kit
- KE301 classic kit
- For searching telephone cables and for wire pair identification
- RJ11 plug & alligator clips
- External voltage protection up to 120 V AC
Technical specifications
- Voltage-free testing of all types of cables, such as power cables, telephone cables, bell cables, data cables of all classes, coaxial cables, Wiring harnesses in vehicles, etc.
- Overvoltage protection to 120V AC / DC
- 6 frequencies for broadcast sound signal can be selected with an accuracy of 1%
- 25 cm test leads made of flexible PVC with alligator clips, a test lead with RJ11 modular plug
- Impact-resistant and weather-resistant ABS casing
- Distance between PROBE and cable up to 60 cm (with resistance between them, e.g. plaster on a wall, this distance can vary)
- Flashlight Function
- Product type
Cable locator
- Max. cable length
15 km
- Function
Continuity
Location
Cable tracking
Break
- Optical display
Yes (built-in)
- Acoustic signal
Yes (built-in)
- Test sockets
Alligator clips
RJ11 plug
- Display
LED
- Weight
200 g
- Weight (transmitter)
110 g
- Operating voltage
9 V
- Weight, information
approx., without batteries
- Type
KE301
- Factory colour
Blue
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3025517 Kurth Electronic KE301 Cable locator Continuity, Location, Cable tracking, Break
User & Safety Instructions
User & Safety Instructions 3025517 Kurth Electronic KE301 Cable locator Continuity, Location, Cable tracking, Break
Description
The cable detector kits consist of EasyTest and Probe and allow each technician to find contact-free in no time without the need for time-consuming stripping of all types of cables, wires and pairs of wires. It detects faults such as swapped connections, overdrafts, interruptions and other cable faults. The cable detector can be used for all types of cables such as telephone cables, bell lines, data cables of all classes, coaxial cables and voltage-free electrical lines.
The search signal is fed to active telecommunication lines with a voltage of up to 100 V as well as numerous other functions make these devices the popular tool of the installation companies.
This text is machine translated.
The search signal is fed to active telecommunication lines with a voltage of up to 100 V as well as numerous other functions make these devices the popular tool of the installation companies.
This text is machine translated.

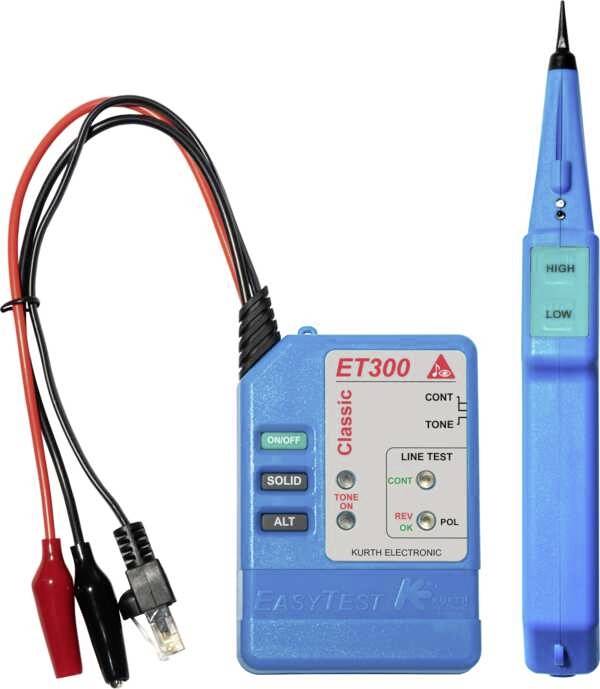

Scope of delivery
- ET300 Classic search signal generator with alligator clips
- P310 Classic search signal receiver (probe)
- Protective case
