Buy Kurth Electronic KE501 Cable locator Continuity, Location, Cable tracking, Break

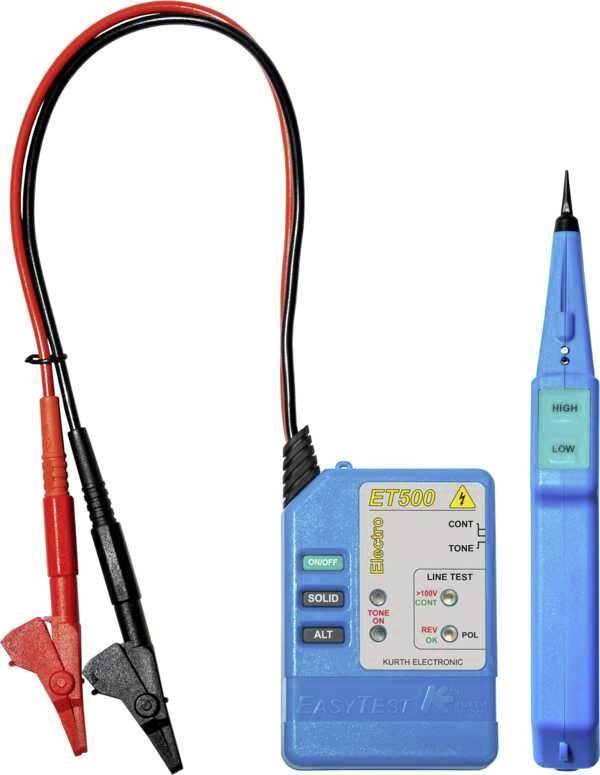

An electronic testing device with a blue casing and black display, with two cables connected to red and black clamps.

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

48 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 231.09 / piece)

€ 231.09

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

Cable detector and cable detector kit

KE501 Electro Kit:
For electrical installations and cable identification
35 cm long, fully insulated test leads with banana plugs and extra-strong alligator clips
External voltage protection up to 350 V AC – protects the device from accidental contact with 230 V mains voltage

Technical specifications

- Voltage-free testing of all types of cables, such as power cables, telephone cables,
Bell cables, data cables of all classes, coaxial cables, cable harnesses in vehicles, etc.
- Overvoltage protection up to 350V AC / DC
- 6 frequencies for sound signal transmission can be selected with an accuracy of 1%
- 35 cm test cords made of flexible PVC with banana plugs and alligator clips
- Impact-resistant and weather-resistant ABS housing
- Distance between the PROBE and the cable up to 60 cm (with resistance in between, e.g. plaster on one
Wall may vary this distance)
- Torch function

Product type: Cable locator

Max. cable length: 15 km

Function: Continuity
Location
Cable tracking
Break

Optical display: Yes (built-in)

Acoustic signal: Yes (built-in)

Test sockets: Alligator clips
Jack plug

Display: LED

Weight: 220 g

Weight (transmitter): 140 g

Operating voltage: 9 V

Weight, information: approx., without batteries

Type: KE501

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3025518 Kurth Electronic KE501 Cable locator Continuity, Location, Cable tracking, Break

User & Safety Instructions

User & Safety Instructions 3025518 Kurth Electronic KE501 Cable locator Continuity, Location, Cable tracking, Break

Description

The cable detector kits consist of EasyTest and Probe and allow each technician to find contact-free in no time without the need for time-consuming stripping of all types of cables, wires and pairs of wires. It detects faults such as swapped connections, overdrafts, interruptions and other cable faults. The cable detector can be used for all types of cables such as telephone cables, bell lines, data cables of all classes, coaxial cables and voltage-free electrical lines.

The search signal is fed to active telecommunication lines with a voltage of up to 90 V as well as numerous other functions make these devices the popular tool of the installation companies.

This text is machine translated.
